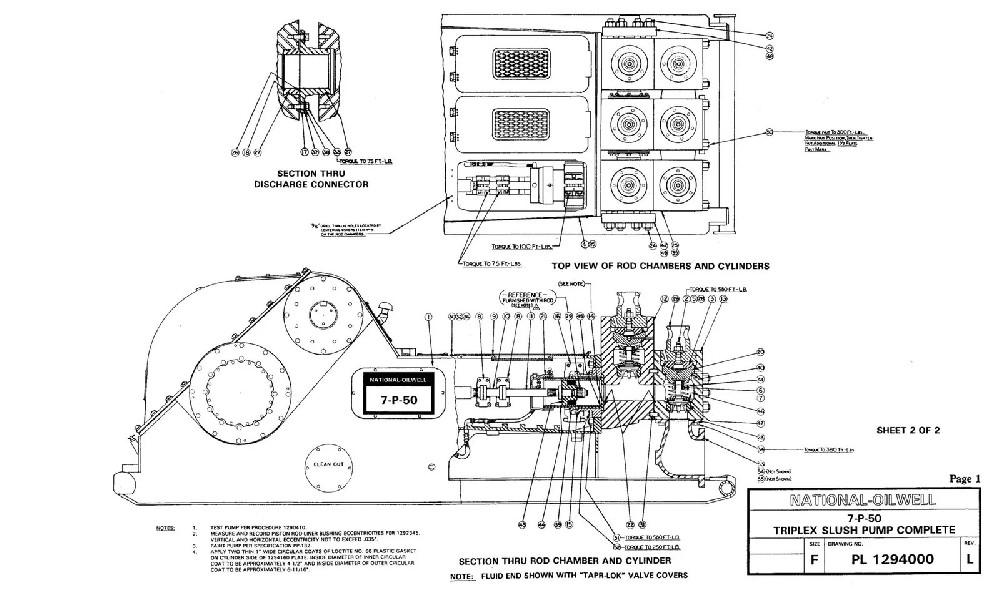

| 7-P-50 TRIPLEX SLUSH PUMP COMPLETE SIZE:F PL 1294000 REV. L | |||
| ITEM | REQ’D | PART NO. | DESCRIPTION |
| – | – | 1294000 | 7-P-50 TRIPLEX PUMP COMPLETE ( CONSISTS OF THE FOLLOWING ) |
| 1 | 1 | 1294001 | POWER END COMPLETE |
| 2 | 6 | 1290178 | SCREW |
| 3 | 6 | G-1290376 | WEDGE COMPLETE, LOCKING |
| 4 | 1 | G-2407274 | PLATE, WARNING |
| 5 | 6 | 1290315 | WASHER |
| 6 | 6 | 1292140 | HOLDER, INSERT |
| 7 | 6 | 1292141 | INSERT, VALVE GUIDE |
| 8 | 6 | 1294085 | CLAMP COMPLETE, ROD |
| 9 | 3 | 1294130 | COVER COMPLETE, CHAMBER |
| 10 | 3 | 1294146 | SUB-ROD, PISTON |
| 11 ¸ | 3 | 1294147 | ROD, PISTON ROD ( FOR 4″ AND LARGER PISTONS ) |
| 3 | 1294149 | ROD, PISTON ROD ( FOR 3″ AND 3-1/2″ PISTONS ) | |
| 12 | 3 | 1294150 | MODULE STUDDED, DISCHARGE |
| 13 | 3 | 1294156 | MODULE, SUCTION |
| 14 | 3 | 1294160 | PLATE, WEAR |
| 15 | 3 | 1294165 | BUSHING |
| 16 | 3 | 1294166 | CLAMP COMPLETE, LINER |
| 17 | 2 | 1294170 | CONNECTOR, DIACHARGE |
| 18 | 2 | 1294171 | ADAPTER, CONNECTOR |
| 19 | 6 | 1294172 | COVER, VALVE |
| 20 | 6 | 1294174 | RETAINER, SEAL |
| 21 | 3 | 1294190 | SPRAY SYSTEM, PISTON – LINER |
| 22 | 6 | 1294192 | SEAL, MODULE |
| 23 | 3 | 1540142 | SEAL, MANIFOLD |
| 24 | 16 | 2402560 | STUD, 1-1/4″ X 6-1/4″ |
| 25 | 1 | 2407142 | PLATE, INSTRUCTION |
| 26 | 2 | 2410031-348 | PACKING |
| 27 | 4 | 2410031-427 | PACKING |
| 28 | 6 | 6300160 | NUT, 1″ HEAVY HEX |
| 29 ¸ | 3 | 6308241 | NUT, PISTON ROD ( FOR 4″ AND LARGER PISTONS ) |
| 3 | 6308160 | NUT, PISTON ROD ( FOR 3″ AND 3-1/2″ PISTONS ) | |
| 30 | 12 | 6310040 | NUT, 1/4″ FLEXLOC |
| 31 | 6 | 6511416 | PIN, 7/8″ X 2″ LG. STD. HDN. & GROUND DOWEL |
| 32 | 12 | 7000108-10 | CAPSCREW, 1/4″ X 1″ LG. GRADE 5 HEX HEAD |
| 33 | 16 | 7000305-10 | CAPSCREW, 1/2″ X 1-1/2″ LG. GRADE 5 HEX HEAD |
| 34 | 24 | 7000481-10 | CAPSCREW, 7/8″ X 2″ LG. GRADE 5 HEX HEAD |
| 35 | 8 | 7178025 | SCREW, NO. 2 X 1/4″ LG. TYPE “U” ROUND HEAD DRIVE |
| 36 | 12 | 7600016 | WASHER, 1/4″ N TYPE “A” 0.625″ O.D. |
| 37 | 16 | 7600034 | WASHER, 1/2″ W TYPE “A” 1.375″ O.D. |
| 38 | 16 | 7602050 | WASHER, 1/2″ REG. SPRING LOCK |
| 39 ·· | 3 | 1294168 | COLLAR, LINER |
| 40 ·· | 6 | 1540128 | SEAL |
| 41 | 6 | 1560701 | SPRING, VALVE |
| 42 ·· | 2 | 6908033 | RING, R39-D OVAL JOINT |
| 56 ¿ÀÙ | 1 | X12-2553 | CAP, PINION SHAFT |
| ITEMS 43 THRU 49 ARE OPTIONAL FLUID END PARTS | |||
| 43 | 3 | K-1134 | PISTON, 4″ BLUE STRIP SINGLE ACTING |
| 3 | 20-021-500 | PISTON, 4″ SERIES K | |
| 3 | K-1034 | PISTON, 4-1/2″ BLUE STRIP SINGLE ACTING | |
| 3 | 20-021-501 | PISTON, 4-1/2″ SERIES B | |
| 3 | K-1032 | PISTON, 5″ BLUE STRIP SINGLE ACTING | |
| 3 | 20-021-502 | PISTON, 5″ SERIES B | |
| 3 | K-1021 | PISTON, 5-1/2″ BLUE STRIP SINGLE ACTING | |
| 3 | 20-021-503 | PISTON, 5-1/2″ SERIES B | |
| 3 | 021-180-333 | PISTON, 5-1/2″ | |
| 3 | K-1022 | PISTON, 6″ BLUE STRIP SINGLE ACTING | |
| 3 | 20-021-505 | PISTON, 6″ SERIES B | |
| 3 | K-1064 | PISTON, 6-1/4″ BLUE STRIP SINGLE ACTING | |
| 3 | P-9610 | PISTON, 6-1/4″ POLYURETANE | |
| 3 | 20-021-506 | PISTON, 6-1/4″ SERIES L | |
| 44 | 3 | L-4627 | LINER, 4″ BI-METAL |
| 3 | 05-466-040 | LINER, 4″ SUPER DI-HARD | |
| 3 | L-4647 | LINER, 4-1/2″ BI-METAL | |
| 3 | 05-466-045 | LINER, 4-1/2″ SUPER DI-HARD | |
| 3 | L-4667 | LINER, 5″ BI-METAL | |
| 3 | 05-466-050 | LINER, 5″ SUPER DI-HARD | |
| 3 | L-4687 | LINER, 5-1/2″ BI-METAL | |
| 3 | 05-466-055 | LINER, 5-1/2″ SUPER DI-HARD | |
| 3 | L-4700 | LINER, 6″ BI-METAL | |
| 3 | 05-466-060 | LINER, 6″ SUPER DI-HARD | |
| 3 | L-4710 | LINER, 6-1/4″ BI-METAL | |
| 3 | 05-466-062 | LINER, 6-1/4″ SUPER DI-HARD | |
| 45 # | 3 | 1540140 | PACKING, 4″ LINER |
| 3 | 1540142 | PACKING, 4-1/2″ LINER | |
| 3 | 1540144 | PACKING, 5″ LINER | |
| 3 | 1540146 | PACKING, 5-1/2″ LINER | |
| 3 | 1540148 | PACKING, 6″ LINER | |
| 3 | 1540161 | PACKING, 6-1/4″ LINER | |
| 46 | 6 | 1561524 | VALVE, “G-2” HYCAR |
| 6 | 1561525 | VALVE, “G-2” POLYURETHANE | |
| 47 | 6 | 1561530 | SEAT, VALVE |
| 48 | 1 | 5912370 | FLANGE WITH 3.152″ BORE, 4″ API 5000 # WELD NECK R.J. |
| 49 | 1 | 5912373 | FLANGE, 4″ API 5000 # BLIND R.J. |
| ITEMS 50 THRU 52 ARE SHOWN FOR REFERENCE ONLY. ( NUMBER REQ’D. FOR ONE STUDDED CYLINDER ONLY ) | |||
| 50 | 6 | 2408041 | STUD, 1-1/4″ X 14-5/8″ LG. ( FOR ITEM 13, SUCTION MODULE ) |
| 51 | 8 | 2408042 | STUD, 1″ X 5″ LG. ( CYLINDER TO FRAME ) |
| 52 | 6 | 2408043 | STUD, 3/4″ X 4-1/2″ LG. ( FOR ITEM 15, BUSHING ) |
| 53 | 1 | 1294173 | MANIFOLD, FRONT INLET SUCTION |
| 1 | 1294193 | MANIFOLD, DAMPENER | |
| 1 | 1294289 | MANIFOLD, SUCTION | |
| 54 | 1 | 1294288 | STABILIZER, 8″ X90 DEG. SUCTION |
| 1 | 1290203 | DAMPENER, 8″ WELD-IN SUCTION | |
| 1 | 1290208 | DAMPENER, 10″ WELD-IN SUCTION | |
| 1 | 1290210 | DAMPENER, 8″ WELD-IN SUCTION | |
| 1 | 1290212 | DAMPENER, 8″ SINGLE FLANGED | |
| 1 | 1290277 | DAMPENER, 8″ SUCTION ( R.H. SIDE INLET ) | |
| 1 | 1290278 | DAMPENER, 8″ SUCTION ( L.H. SIDE INLET ) | |
| 55 | 1 | 6874012 | PLUG, 1-1/2″ STD. SQUARE HEAD ( FOR 1294173 ) |
| 2 | 6874012 | PLUG, 1-1/2″ STD. SQUARE HEAD ( FOR 1294185 ) | |
| REF. | 1 | G-1294132 | LUBE SYSTEM COMPLETE, BELT DRIVEN |
| 1 | 1294215 | LUBE SYSTEM COMPLETE, 230/460 ELECTRIC MOTOR | |
| 1 | 1294290 | LUBE SYSTEM COMPLETE, 230/460 ELECTRIC MOTOR | |
| 1 | 1294216 | LUBE SYSTEM COMPLETE, 575 VOLT ELECTRIC MOTOR | |
| THE BELOW ITEM IS FURNISHED ONLY AS A SERVICE ITEM | |||
| REF. | 1 | 1294189 | MANIFOLD COMPLETE, SPRAY SYSTEM |
| THE BELOW ITEM ARE NOT SHOWN. THESE ARE STANDARD PARTS FURNISHED FOR PUMP COMPLETE & ARE SHIPPDE SEPARATELY. | |||
| REF. | 1 | M-1023 | WRENCH, PISTON ROD NUT |
| 1 | 1290183 | PULLER, RETAINER | |
| 1 | 1290206 | BOLT, SHORT LIFTING ( FOR 1294166 ) | |
| 1 | 1290207 | BOLT, LONG LIFTING ( FOR 1294166 ) | |
| 1 | 1292278 | HOLDER, RETAINER | |
| 1 | 1294140 | ADAPTER | |
| 1 | 1294153 | DRIVER, VALVE SEAT | |
| 1 | M-1060 | PULLER, VALVE SEAT | |
| 1 | M-1093 | HEAD, VALVE SEAT PULLER | |
| 1 | 1294164 | PLATE, LINER BUSHING PULLER | |
| 1 | 1710270 | BAR, WEDGE LOOSENING | |
| 1 | 2402290 | WRENCH, ( FOR 1294140 ) | |
| 1 | 2409010 | WRENCH, ( FOR 1290178 ) | |
| 1 | 2409011 | WRENCH, ( FOR 2409010 ) | |
| 1 | 2404085 | KEY, 1″ X 1-1/2″ X 12″ LG. PINION SHAFT | |
| 1 | 7500065 | VALVE, RELIEF ( SET AT 70 P.S.I. ) | |
| THE BELOW ITEMS ARE OPTIONAL PUMP ACCESSORIES | |||
| REF. | 1 | 1294125 | HOIS COMPLETE |
| 1 | 1294186 | CROSS COMPLETE, STRAINER ( 4″ OUTLETS, HYDRIL K20-5000 ) | |
| 1 | 1294187 | CROSS COMPLETE, STRAINER ( 4″ OUTLETS, HYDRIL K20-3000 ) | |
| 1 | G-1294225 | CHARGING PUMP, SIDE INLET SIDE MOUNTED CENTRIFUGAL ( R.H. ) | |
| 1 | G-1294223 | CHARGING PUMP, SIDE INLET SIDE MOUNTED CENTRIFUGAL ( L.H. ) | |
| 1 | G-1294239 | CHARGING PUMP, FRONT INLET SIDE MOUNTED CENTRIFUGAL | |
| 1 | G-1294227 | CHARGING PUMP, FRONT INLET SIDE MOUNTED CENTRIFUGAL | |
| 1 | 1294220 | SWITCH COMPLETE, STROKE COUNTER | |
| ¸ OPTIONAL, PLEASE SPECIFY WHEN ORDERING. | |||
| ·¸ STANDARD ITEMS ARE SHIPPED SEPARATELY. | |||
| Ù ITEMS 56 FURNISHED ONLY FOR PUMP SHIPPED WITHOUT DRIVE, MECHANICAL LUBE SYSTEM OR CHARGING PUMP | |||
| # ITEM 45 SHOWN FOR REPLACEMENT PURPOSES ONLY, ONE LINER PACKING ( ITEM 45 ), IS INCLUDED WITH EVERY LINER ( ITEM 45 ) ORDERED. | |||
| POWER END COMPLETE 7-P-50 TRIPLEX SLUSH PUMP SIZE: F PL 1294001 REV. P | |||
| ITEM | REQ’D | PART NO. | DESCRIPTION |
| – | – | 1294001 | POWER END COMPLETE ( CONSISTS OF THE FOLLOWING ) |
| 1 | 2 | 1283191 | GASKET, CLEAN-OUT PLATE |
| 2 | 1 | 1284106 | GASKET, OIL GAUGE PLATE |
| 3 | 2 | 1290077 | COVER, WRENCH HOLE |
| 4 | 3 | 1290078 | GASKET, WRENCH HOLE |
| 5 | 1 | 1290110 | COVER, CENTER WRENCH HOLE |
| 6 | 3 | 1290251 | SCREW, OIL PASSGE |
| 7 | 9 | 1291074 | BOLT, HOOK |
| 8 | 3 | G-1294180 | COVER, TOP ACCESS |
| 9 | 3 | G-1294181 | GASKET, TOP ACCESS COVER |
| 10 | 3 | 1294009 | RETAINER, OIL WIPER |
| 11 | 3 | 1294016 | SHIELD, OIL |
| 12 | 3 | 1294023 | PLATE, OIL WIPER RETAINER |
| 13 | 1 | 1294029 | FRAME COMPLETE, MAIN |
| ( CONSISTS OF THE FOLLOWING ) | |||
| 3–1270113 HOSE ASSEMBLY, 1/2″ X 12″ LG. | |||
| 2–1294015 CROSSHEAD, CENTER & RIGHT HAND | |||
| 6–1294017 LINER, CROSSHEAD | |||
| 1–1294030 FRAME ( ONLY ) | |||
| 3–1294089 CONDUCTOR, OIL | |||
| 1–1294090 CROSSHEAD, LEFT HAND | |||
| 1–1294099 SLID, FLUID END EXTENSION | |||
| 15–1294103 SHIM, LINER | |||
| 2–1294118 STIFFENER | |||
| 36–2401310 SCREW, 3/4″ X 2-1/4″ LG. DRLD. HD. | |||
| 6–6700400 PIPE, 1/2″ X 1-3/4″ LG. SCH. 40 | |||
| 3–6829004 ELBOW, 1/2″ X 90 DEG. STREET | |||
| 1–6873008 PLUG, 1″ CORED SQ. HEAD | |||
| 38–7618024 WASHER, 3/4″ STAT-O-SEAL | |||
| 14 | 1 | 1294062 | STRAINER, LUBE SUMP |
| 15 | 1 | 1294063 | SUMP, LUNE OIL |
| 16 | 1 | 1294069 | BRACE, OIL TROUGH |
| 17 | 1 | 1294070 | TROUGH, PINION OIL ( LEFT HAND ) |
| 18 | 1 | 1294071 | TROUGH, PINION OIL ( RIGHT HAND ) |
| 19 | 1 | 1294072 | WIPER, GEAR OIL ( LEFT HAND ) |
| 20 | 1 | 1294073 | WIPER, GEAR OIL ( RIGHT HAND ) |
| 21 | 2 | 1294076 | PLATE, CLEAN-OUT |
| 22 | 3 | 1294078 | GASKET, RETAINER |
| 23 | 3 | 1294079 | GASKET, OIL WIPER |
| 24 | 2 | 1294080 | RAIL, SUMP SUPPORT |
| 25 | 1 | 1294082 | WIPER, PINION OIL ( LEFT HAND ) |
| 26 | 3 | 1294083 | ROD, INTERMEDIATE |
| 27 | 1 | 1294087 | WIPER, PINION OIL ( RIGHT HAND ) |
| 28 | 2 | 1294093 | COVER, INSPECTION |
| 29 | 2 | 1294094 | GASKET, INSPECTION |
| 30 | 1 | 1294095 | GASKET, MAIN FRAME COVER |
| 31 | 1 | 1294114 | PLATE, OIL GAUGE |
| 32 | 1 | 1294179 | TROUGH, CROSSHEAD LUBE OIL |
| 33 | 12 | 1294128 | WIPER, INTERMEDIATE ROD OIL |
| 34 | 1 | 2400029 | DIPSTICK, OIL LEVEL |
| 35 | 8 | 2400040 | SCREW, 3/8″ X 3/4″ LG. DRILLED HEX HEAD |
| 36 | 1 | 2407100 | PLATE, NAME AND INSTRUCTION |
| 37 | 8 | 6300081 | NUT, 1/2″ – 13 UNC CAD. PLATED HEX |
| 38 | 32 | 6300103 | NUT, 5/8″ – 11 UNC CAD. PLATED HEX |
| 39 | 6 | 6310040 | NUT, 1/4″ – 20 UNC FLEXLOC |
| 40 | 8 | 6310060 | NUT, 3/8″ – 16 UNC FLEXLOC |
| 41 | 3 | 6320060 | NUT, 3/8″ HEX JAM |
| 42 | 9 | 6541612 | PIN, 1/4″ X 1-1/2″ LG. TYPE “C” GROOVE |
| 43 | 1 | 6800163 | BUSHING, 2″ X 1″ STD. C.I. HEX |
| 44 | 2 | 6829016 | ELBOW, 2″ X 90 DEG. STD. M.I. STREET |
| 45 | 6 | 7000113-11 | CAPSCREW, 1/4″ X 2-1/4″ LG. GR. 5 CAD. PLTD. HEX HEAD |
| 46 | 36 | 7000208-11 | CAPSCREW, 3/8″ X 1″ LG. GRADE 5 CAD. PLATED HEX HEAD |
| 47 | 16 | 7000209-11 | CAPSCREW, 3/8″ X 1-1/4″ LG. GRADE 5 CAD. PLTD HEX HEAD |
| 48 | 4 | 7000210-11 | CAPSCREW, 3/8″ X 1-1/2″ LG. GRADE 5 CAD. PLTD HEX HEAD |
| 49 | 18 | 7000301-11 | CAPSCREW, 1/2″ X 3/4″ LG. GRADE 5 CAD. PLATED HEX HEAD |
| 50 | 20 | 7000303-11 | CAPSCREW, 1/2″ X 1″ LG. GRADE 5 CAD. PLATED HEX HEAD |
| 51 | 12 | 7000306-11 | CAPSCREW, 1/2″ X 1-3/4″ LG. GRADE 5 CAD. PLATED HEX HEAD |
| 52 | 6 | 7000443-11 | CAPSCREW, 3/4″ X 2-3/4″ LG. GRADE 5 CAD. PLATED HEX HEAD |
| 53 | 2 | 7027393 | SCREW, 5/8″ X 1″ LG. SOCKET HEAD CUP POINT SET |
| 54 | 8 | 7035305-01 | SCREW, 1/2″ X 1-1/2″ LG. CAD. PLTD. FLAT HEAD MACHINE |
| 55 | 6 | 7178025 | SCREW, NO. 2 X 1/4″ LG. TYPE “U” ROUND HEAD DRIVE |
| 56 | 16 | 7600024 | WASHER, 3/8″ N TYPE “A” 0.812″ O.D. |
| 57 | 32 | 7600040 | WASHER, 5/8″ N TYPE “A” 1.312″ O.D. |
| 58 | 24 | 7618014 | WASHER, 3/8″ STAT-O-SEAL |
| 59 | 8 | 7619050 | WASHER, 1/2″ REG. CAD. PLATED SPRING LOCK |
| 60 | 32 | 7619058 | WASHER, 5/8″ REG. CAD. PLATED SPRING LOCK |
| 61 | 12 | 7621016 | WASHER, 1/4″ N TYPE “A” CAD. PLATED 0.625″ O.D. |
| 62 | 40 | 7621032 | WASHER, 1/2″ N TYPE “A” CAD. PLATED 1.062″ O.D. |
| 63 | 1 | 7802020 | CAP, BREATHER |
| 64 | 3 | 7805052 | FITTING, 1/8″ STRAIGHT HYD. GREASE |
| 65 | 3 | 7805062 | FITTING, 1/8″ X 45 DEG. STREET ELBOW |
| 66 | 3 | 7815057 | PLUG, 1″ MAGNETIC POST |
| 116 | 6 | G-1294139 | PLATE, OIL WIPER RETAINING |
| 117 | 18 | G-7061091-17 | SCREW, NO. 10 24 X 5/8″ LG. ZINC PLTD. MACHINE |
| 118 | 18 | 7619025 | WASHER, NO. 10 REG. CAD. PLATED SPRING LOCK |
| 119 | 6 | 1294141 | SPACER, OIL WIPER |
| ITEMS 67 THRU 92 ARE SHOWN IN “SECTION THRU CRANKSHAFT” | |||
| 67 | 2 | ZT-10003 | BEARING, MAIN |
| 68 | 4 | 1282147 | SHIM ( .005″ THICK ), BEARING SUPPORT |
| 69 | 2 | 1282148 | SHIM ( .007″ THICK ), BEARING SUPPORT |
| 70 | 2 | 1294011 | CAGE, MAIN BEARING |
| 71 | 2 | 1294012 | CAGE, MAIN BEARING END |
| 72 | 2 | 1294021 | RING, MAIN BEARING LOCK |
| 73 | 2 | 1294022 | PLATE, MAIN BEARING RETAINER |
| 74 | 2 | 1294081 | RETAINER, MAIN BEARING CAGE OIL |
| 75 | 2 | 1294096 | GASKET, END CAP |
| 76 | 8 | 1294104 | SHIM ( .020″ THICK ), LOCK RING |
| 77 | 8 | 1294105 | SHIM ( .0075″ THICK ), LOCK RING |
| 78 | 14 | 1294108 | SHIM ( .005″ THICK ), LOCK RING |
| 79 | 2 | 1294115 | SHIM ( 1/16″ THICK ), RETAINING PLATE |
| 80 | 4 | 1294116 | SHIM ( .020″ THICK ), RETAINING PLATE |
| 81 | 6 | 1294117 | SHIM ( .005″ THICK ), RETAINING PLATE |
| 82 | 1 | 1294159 | CRANKSHAFT SUB-ASSEMBLY, CONN. ROD / CROSSHEAD / |
| 83 | 24 | 2400690 | SCREW, 3/8″ X 1″ LG. DRILLED HEAD |
| 84 | 48 | 2402680 | SCREW, 5/8″ X 2″ LG. DRILLED HEAD |
| 85 | 8 | 2405019 | SCREW, 7/8″ X 2-1/2″ LG. DRILLED HEAD |
| 86 | 16 | 5506202 | BOLT, 3/8″ X 3/4″ LG. PLACE |
| 87 | 2 | 6310241 | NUT, 1-1/2″ – 8 UN FLEXLOC |
| 88 | 2 | 7400842 | TUBING, 1/2″ O.D. X 3/8″ I.D. X 20″ LG. STEEL |
| 89 | 24 | 7600024 | WASHER, 3/8″ N TYPE “A” 0.812″ O.D. |
| 90 | 96 | 7600040 | WASHER, 5/8″ N TYPE “A” 1.312″ O.D. |
| 91 | 2 | 7804146 | ELBOW, 1/2″T X 3/8″ P.T. X 90 DEG. MALE |
| 92 | 2 | G-7804202 | ELBOW, 1/2″T X 3/8″ P.T. X 45 DEG. MALE |
| 93 | REF. | 1294014 | SPACER, BEARING SUPPORT |
| 94 | REF. | 1294024 | BOLT, BEARING SUPPORT |
| ITEMS 95 THRU 114 ARE SHOWN IN “SECTION THRU PINION AND CROSSHEADS” | |||
| 95 | 2 | YS-6003 | SEAL, PINION BEARING OIL |
| 96 | REF. | ZB-5620 | BEARING, CROSSHEAD PIN |
| 97 | REF. | 1291114 | SHIM, RETAINER |
| 98 | 2 | 1294020 | RETAINER, PINION BEARING |
| 99 | REF. | 1294028 | PIN, CROSSHEAD |
| 100 | 2 | 1294097 | GASKET, RETAINER |
| 101 | REF. | 1294110 | RING, BEARING SNAP |
| 102 | REF. | 1294112 | RETAINER, PIN |
| 103 | 2 | 1294113 | COVER COMPLETE, HAND HOLE |
| 104 | 1 | 1294158 | PINION SHAFT SUB-ASSEMBLY |
| 105 | 16 | 2400051 | SCREW, 1/2″ X 1-3/4″ LG. DRILLED HEAD |
| 106 | 16 | 2400930 | SCREW, 5/8″ X 1-3/4″ LG. DRILLED HEAD |
| 107 | REF. | 5506710 | BOLT, 3/4″ X 2″ LG. PLACE |
| 108 | REF. | 6910054 | RING, RETAINING ( FOR 1294028, CROSSHEAD PIN ) |
| 109 | 12 | 7000209-11 | CAPSCREW, 3/8″ X 1-1/4″ LG. GRADE 5 CAD. PLTD HEX HEAD |
| 110 | REF. | 2401310 | CAPSCREW, 3/4″ X 2-1/4″ LG. DRILLED HEX HEAD |
| 111 | 16 | 7600040 | WASHER, 5/8″ N TYPE “A” 1.312″ O.D. |
| 112 | 16 | 7621032 | WASHER, 1/2″ N TYPE “A” 1.062″ O.D. CAD. PLATED |
| 113 | REF. | 7611036 | WASHER, 3/4″ LOCOMOTIVE HI-CROME LT. SER. SPRING |
| 114 | 12 | 7618014 | WASHER, 3/8″ STAT-O-SEAL |
| PISTON — LINER SPRAY SYSTEM 7-P-50 TRIPLEX SLUSH PUMP SIZE: C PL 1294190 REV. D | |||
| ITEM | REQ’D | PART NO. | DESCRIPTION |
| – | – | 1294190 | PISTON – LINER SPRAY SYSTEM ( CONSISTS OF THE FOLLOWING ) |
| 1 | 1 | G-2400075 | HOSE, 1/2″ X 16-1/2″ LG. |
| 3 | 1 | 1294189 | MANIFOLD, SPRAY |
| 5 | 1 | 6829004 | ELBOW, 1/2″ X 90 DEG. STD. M.I. STREET |
| 10 | 1 | 7818282 | SOCKET, 1/2″ F.P.T. |
| 11 | 1 | 7815094 | PLUG, 1/2″ M.P.T. |
| CRANKSHAFT & CONNECTING ROD SUB-ASSEMBLY 7-P-50 TRIPLEX SLUSH PUMP SIZE: D PL 1294159 REV. A | |||
| ITEM | REQ’D | PART NO. | DESCRIPTION |
| – | – | 1294159 | CRANKSAFT & CONNECTION ROD SUB-ASSEMBLY ( CONSISTS OF THE FOLLOWING ) |
| 1 | 3 | ZB-5620 | BEARING, CROSSHEAD PIN |
| 2 | 3 | ZB-22000 | BEARING, CONNECTING ROD |
| 3 | 6 | 1291114 | SHIM, PIN RETAINER |
| 4 | 3 | 1294007 | ROD, CONNECTING |
| 5 | REF. | 1294015 | CROSSHEAD, CENTER |
| 6 | 12 | 1294026 | PLATE, CONNECTING ROD BEARING RETAINING |
| 7 | 3 | 1294028 | PIN, CROSSHEAD |
| 8 | 6 | 1294061 | RETAINER, CONNECTING ROD BEARING OUTER |
| 9 | REF. | 1294089 | CONDUCTOR, OIL |
| 10 | 9 | 1294100 | SHIM ( .020″ THICK ), CONNECTING ROD BEARING RETAINER PLATE |
| 11 | 18 | 1294101 | SHIM ( .0075″ THICK ), CONNECTING ROD BEARING RETAINER PLATE |
| 12 | 27 | 1294102 | SHIM ( .005″ THICK ), CONNECTING ROD BEARING RETAINER PLATE |
| 13 | 3 | 1294107 | SHIM ( .020″ THICK ), CONNECTING ROD BEARING OUTER RETAINER |
| 14 | 9 | 1294108 | SHIM ( .0075″ THICK ), CONNECTING ROD BEARING OUTER RETAINER |
| 15 | 9 | 1294109 | SHIM ( .005″ THICK ), CONNECTING ROD BEARING OUTER RETAINER |
| 16 | 6 | 1294110 | RING, CROSSHEAD PIN |
| 17 | 3 | 1294112 | RETAINER, CROSSHEAD PIN |
| 18 | 1 | 1294136 | CRANKSHAFT AND GEAR SUB-ASSEMBLY |
| 19 | 12 | 2400930 | SCREW, 5/8″ X 1-3/4″ LG. DRILLED HEAD |
| 20 | 6 | 5506710 | BOLT, 3/4″ X 2″ LG. PLACE |
| 21 | 30 | 6310101 | NUT, 5/8″ – 11 UNC FLEXLOC |
| 22 | 3 | 6875003 | PULG, 3/8″ STD. COUNTERSUNK |
| 23 | 3 | 6910054 | RING, RETAINING |
| 24 | 30 | 7000409-11 | CAPSCREW, 5/8″ X 5″ LG. GRADE 5 CAD. PLATED HEX HEAD |
| 25 | 6 | 2401310 | CAPSCREW, 3/4″ X 2-1/4″ LG. DRILLED HEX HEAD |
| 26 | 96 | 7600040 | WASHER, 5/8″ N TYPE “A” 1.312″ O.D. |
| 27 | 6 | 7611036 | WASHER, 3/4″ LOCOMOTIVE HI-CROME LT. SER. SPRING |
| CRANKSHAFT & GEAR SUB-ASSEMBLY 7-P-50 TRIPLEX SLUSH PUMP SIZE: D PL 1294136 REV. A | |||
| ITEM | REQ’D | PART NO. | DESCRIPTION |
| – | – | 1294136 | CRANKSHAFT AND GEAR SUB-ASSEMBLY ( CONSISTS OF THE FOLLOWING ) |
| 1 | 1 | 1294005 | CRANKSHAFT |
| 2 | 12 | 1294006 | BOLT |
| 3 | 1 | 1294008 | GEAR |
| 4 | 12 | 6310101 | NUT, 5/8″ FLEXLOC |
| PINION SHAFT SUB-ASSEMBLY 7-P-50 TRIPLEX SLUSH PUMP SIZE: B PL 1294158 REV. | |||
| ITEM | REQ’D | PART NO. | DESCRIPTION |
| – | – | 1294158 | PINION SHAFT SUB-ASSEMBLY ( CONSISTS OF FOLLOWING ) |
| 1 | 2 | ZB-6292 | BEARING, PINION |
| 2 | 1 | 1294010 | PINION |
| 3 | 1 | 1294018 | CAGE, PINION BEARING ( LEFT HAND ) |
| 4 | 1 | 1294019 | CAGE, PINION BEARING ( RIGHT HAND ) |
| 5 | 2 | 1294027 | PLATE, PINION BEARING CAGE |
| 6 | 8 | 2400930 | SCREW, 5/8″ X 1-3/4″ LG. DRILLED HEAD |
| 7 | 8 | 7600040 | WASHER, 5/8″ N TYPE ” A” 1.312″ O.D. |
| SPECIAL TOOLS 7-P-50 TRIPLEX SLUSH PUMP SIZE: B REV. | |||
| ITEM | REQ’D | PART NO. | DESCRIPTION |
| ITEMS BELOW ARE STANDARD PARTS THAT ARE FURNISHED WITH EACH SET OF PUMPS, BUT SHIPPED SEPARATELY | |||
| 1 | 1 | 1294140 | ADAPTER FOR PINION ROTATING |
| 2 | 1 | 2402290 | WRENCH FOR PINION ROTATING ADAPTER |
| 3 | 1 | 1290183 | PULLER FOR SEAL RETAINER |
| 4 | 1 | 1290207 | TEE HANDLE BOLT FOR LINER CLAMP LIFTING ( LONG ) |
| 5 | 1 | 1290206 | TEE HANDLE BOLT FOR LINER CLAMP LIFTING ( SHORT ) |
| 6 | 1 | M-1060 | PULLER, VALVE SEAT |
| 7 | 1 | 2404085 | KEY, 1″ X 1-1/2″ X 12″ LG. PINION SHAFT |
| 8 | 1 | 1294153 | DRIVER FOR VALVE SEAT |
| 9 | 1 | 1292278 | HOLDER FOR SEAL RETAINER |
| 10 | 1 | 1717270 | BAR FOR LOOSENING WEDGES |
| 11 | 1 | 2409010 | WRENCH FOR VALVE COVER TAP-LOK ADJUSTING SCREW |
| 12 | 1 | 2409011 | EXTENDED HANDLE WRENCH ( USE WITH 2409010 ) |
| 13 | 1 | 1294164 | PULLER PLATE FOR LINER BUSHING |
| 14 | 1 | 7500065 | VALVE, RELIEF ( SET AT 70 P.S.I. ) |
| 15 | 1 | M-1023 | WRENCH, PISTON ROD NUT |
| LUBE SYSTEM FOR PISTON & LINER 7-P-50 TRIPLEX SLUSH PUMP SIZE: E PL 1294290 REV. | |||
| ITEM | REQ’D | PART NO. | DESCRIPTION |
| – | – | 1294290 | LUBE SYSTEM COMPLETE, PISTON LINER ( CONSISTS OF THE FOLLOWING ) |
| 1 | 1 | 1289248 | HOSE ASSEMBLY. 1″ X 21″ LG. |
| 2 | 2 | 1292284 | SUPPORT, MOTOR AND PUMP |
| 3 | 1 | X 12-2989 | PUMP COMPLETE, LINER SPRAY |
| 4 | 1 | 6106001 | HOSE ASSEMBLY. 1-1/2″ X 24″ LG. |
| 5 | 4 | 6310120 | NUT, 3/4″ – 10 UNC FLEXLOC |
| 6 | 1 | 6800081 | BUSHING, 1″ X 1/4″ STD. M.I. HEX PIPE |
| 7 | 1 | 6817076 | NIPPLE, 1″ X 3″ LG. STD. PIPE |
| 8 | 1 | 6829008 | ELBOW, 1″ X 90 DEG. STD. M.I. STREET |
| 9 | 1 | 6839008 | ELBOW, 1″ X 45 DEG. STD. M.I. STREET |
| 10 | 1 | 6859008 | CROSS, 1″ STD. PIPE |
| 11 | 1 | 6873008 | PLUG, 1″ STD. CORED SQUARE HEAD PIPE |
| 12 | 4 | 7000439-11 | CAPSCREW, 3/4″ X 1-3/4″ LG. GRADE 5 CAD. PLTD. HEX HEAD |
| 13 | 4 | 7621044 | WASHER, 3/4″ N TYPE “A” 1.469″ O.D. CAD. PLATED |
| 14 | 1 | 7800070 | ADAPTER, MALE PIPE |
| 15 | 1 | 7806002 | GAUGE ( 0-100 PSI ), 2-1/2″ DIAL X 1/4″ NPT GLYCERIN FILLED PRESSURE |
| 16 | REF. | 1294190 | SPACER SYSTEM, PISTON-LINER |
| 17 | REF. | 1270113 | HOSE ASSEMBLY, 1/2″ X 12″ LG. |
| 18 | REF. | 6829004 | ELBOW, 1/2″ X 90 DEG. STD. M.I. STREET |
| 19 | REF. | 1294062 | STRAINER, LUBE SUMP |
| 20 | REF. | 1294063 | SUMP,PISTON – LINER LUNE |
| 21 | REF. | 1294080 | RAIL, LUBE SUMP SUPPORT |
| 22 | REF. | 6300081 | NUT, 1/2″ – 13 UNC CAD. PLATED HEX |
| 23 | REF. | 7035305-01 | SCREW, 1/2″ X 1-1/2″ LG. CAD. PLTD. FLAT HEAD MACHINE |
| 24 | REF. | 7619050 | WASHER, 1/2″ REG. CAD. PLATED SPRING LOCK |
| 25 | REF. | 7621032 | WASHER, 1/2″ N TYPE “A” 1.062″ O.D. CAD. PLATED |
| LINER SPRAY PUMP ASSEMBLY 7-P-50 TRIPLEX SLUSH PUMP SIZE: D PL X 12 – 2989 REV. | |||
| ITEM | REQ’D | PART NO. | DESCRIPTION |
| – | – | X 12-2989 | LINER SPRAY PUMP COMPLETE ( CONSISTS OF THE FOLLOWING ) |
| 1 | 1 | 1292285 | BASE, MOTOR AND PUMP |
| 2 | 1 | 1292286 | GUARD, DRIVE SHAFT |
| 3 | 4 | 1292283 | SHIM, PUMP |
| 4 | 1 | 2401860 | KEY, 1/4″ X 1/4″ X 1-1/4″ LG. |
| 5 | 1 | 2401860 | KEY, 1/4″ X 1/4″ X 1-1/4″ LG. |
| 6 | 1 | 5902091 | FLANGE, 1″ ASA-150 # FLAT FACE THREADED |
| 7 | 1 | 5902172 | FLANGE, 1-1/2″ ASA-150 # FLAT FACE THREADED |
| 8 | 1 | 6010036 | GASKET ( WITH HOLES ), 1-1/2″ X 1/16″ THK, FULL FACE 150 # |
| 9 | 1 | 6010037 | GASKET ( WITH HOLES ), 1″ X 1/16″ THK, FULL FACE 150 # |
| 10 | 4 | 6300067 | NUT, 3/8″ CAD. PLATED HEX |
| 11 | 8 | 6300081 | NUT, 1/2″ CAD. PLATED HEX |
| 12 | 4 | 7000207-11 | CAPSCREW, 3/8″ X 7/8″ LG. GRADE 5 CA. PLTD. HEX HEAD |
| 13 | 4 | 7000211-11 | CAPSCREW, 3/8″ X 1-3/4″ LG. GRADE 5 CA. PLTD. HEX HEAD |
| 14 | 4 | 7000307-11 | CAPSCREW, 1/2″ X 2″ LG. GRADE 5 CA. PLTD. HEX HEAD |
| 15 | 4 | 7000309-11 | CAPSCREW, 1/2″ X 2-1/4″ LG. GRADE 5 CA. PLTD. HEX HEAD |
| 16 | 4 | 7000396-11 | CAPSCREW, 5/8″ X 1-3/4″ LG. GRADE 5 CA. PLTD. HEX HEAD |
| 17 | 4 | 7600026 | WASHER, 3/8″ W TYPE “A” 1.000″ O.D. |
| 18 | 4 | 7600042 | WASHER, 5/8″ W TYPE “A” |
| 19 | 4 | 1292293 | WASHER, 1/4″ X 1-3/4″ SQARE |
| 20 | 4 | 7619041 | WASHER, 3/8″ REG. CAD. PLATED SPRING LOCK |
| 21 | 8 | 7619050 | WASHER, 1/2″ REG. CAD. PLATED SPRING LOCK |
| 22 | 1 | 7802327 | COUPLING, 1-1/8″ BORE ( SIZE 20T10 ) |
| 23 | 1 | 7812650 | MOTOR, ELECTRIC ( SEE NOTE ) |
| 24 | 1 | 7815147 | PUMP, 1″ X 1-1/2″ CENTRIFUGAL |
| RIGHT ANGLE DRIVE LUBE SYSTEM FOR LINER AND PISTON 7-P-50 TRIPLEX SLUSH PUMP SIZE: E PL 1294132 | |||
| ITEM | REQ’D | PART NO. | DESCRIPTION |
| – | – | G 1294132-LH | RIGHT ANGLE DRIVE PISTON & LINER LUBE SYSTEM ( CONSISTS OF THE FOLLOWING ) |
| G 1294132-RH | |||
| 1 | 1 | G 1291157 | PUMP COMPLETE, LINER SPRAY |
| 2 | 2 | G 1291252 | BRACKET, PUMP MOUNTING |
| 3 | 1 | G 1291258 | COVER, CROSS SHAFT |
| 4 | 1 | G-1294129 | GUARD, GEARBOX SHEAVE ( LEFT HAND ) |
| 1 | G-1294128 | GUARD, GEARBOX SHEAVE ( RIGHT HAND ) | |
| 5 | 1 | G 1294133 | GUARD, GEARBOX V-BELT ( LEFT HAND ) |
| 1 | G 1294134 | GUARD, GEARBOX V-BELT ( RIGHT HAND ) | |
| 6 | 1 | G 7200046 | SHEAVE WITH TYPE QD HUB, 3.6.P.D. “A” 2 GROOVE |
| 7 | 1 | 1290293 | BLOCK, ADJUSTING SCREW |
| 8 | 4 | 1293064 | BLOCK, GUARD MOUNTING |
| 9 | 1 | 1294077 | SHEAVE LUBE PUMP DRIVE |
| 10 | 1 | 1294098 | CAP. PINION SHAFT END |
| 11 | 1 | 2401860 | KEY, 1/4″ X 1/4″ X 1-1/4″ LG. |
| 12 | 2 | 4701112 | V-BELT |
| 13 | 1 | 6100036 | HOSE, 1″ X 23″ LG. |
| 14 | 1 | 6100037 | HOSE, 1-1/2″ X 28″ LG. |
| 15 | 4 | 6300103 | NUT, 5/8″ – 11 UNC CAD. PLATED HEX |
| 16 | 1 | 6800081 | BUSHING, 1″ X 1/4″ STD. M.I. HEX HEAD PIPE |
| 17 | 1 | 6817076 | NIPPLE, 1″ X 3″ LG. STD. PIPE |
| 18 | 1 | 6817080 | NIPPLE, 1″ X 5-1/4″ LG. STD. PIPE |
| 19 | 1 | 6817114 | NIPPLE, 1-1/2″ X 6″ LG. STD. PIPE |
| 20 | 1 | 6826008 | ELBOW, 1″ X 90 DEG. STD. M.I. PIPE |
| 21 | 1 | 6828012 | ELBOW, 1-1/2″ X 45 DEG. STD. M.I. PIPE |
| 22 | 1 | 6829008 | ELBOW, 1″ X 90 DEG. STD. M.I. STREET |
| 23 | 1 | 6839008 | ELBOW, 1″ X 45 DEG. STD. M.I. STREET |
| 24 | 1 | 6888008 | TEE, 1″ STD. M. I. PIPE |
| 25 | 4 | 7000301-11 | CAPSCREW, 1/2″ X 3/4″ LG. GR. 5 CAD. PLATED. HEX HEAD |
| 26 | 4 | 7000397-11 | CAPSCREW, 5/8″ X 2″ LG. GR. 5 CAD. PLTD. HEX HEAD |
| 27 | 1 | 7016421 | SCREW, 5/8″ X 8″ LG. CUP POINT SQUARE HEAD SET |
| 28 | 2 | 7027210-12 | SCREW, 3/8″ X 1-1/2″ LG. SKT. CUP POINT NYLOK SET |
| 29 | 2 | 7619045 | WASHER, 7/16″ REG. CAD. PLTD SPRING LOCK |
| 30 | 4 | 7619058 | WASHER, 3/8″ REG. CAD. PLATED SPRING LOCK |
| 31 | 4 | 7621032 | WASHER, 1/2″ N TYPE A 1.062″ O.D. CAD. PLATED |
| 32 | 4 | 7621042 | WASHER, 3/8″ N TYPE A 1.750″ O.D. CAD. PLATED |
| 33 | 2 | 7800076 | ADAPTER, 1″ HOSE |
| 34 | 2 | 7802358 | CONNECTOR, 1-1/2″ |
| 35 | 2 | 7805072 | SWIVEL FITTING 1-1/2″ FEMALE |
| 36 | 2 | 7805083 | HOSE FITTING, 1″ STEEL |
| 37 | 1 | 7806002 | GAUGE ( 0-100 P.S.I. ), 2-1/2″ DIAL X 1/4″ N.P.T. |
| 38 | REF. | 1294190 | SPRAY SYSTEM, LINER AND PISTON |
| 39 | REF. | 1270113 | HOSE ASSEMBLY, 1/2″ X 12″ LG. |
| 40 | REF. | 6829004 | ELBOW, 1/2″ X 90 DEG. STD. M.I. STREET |
| 41 | REF. | 1294080 | RAIL, LUBE SUMP SUPPORT |
| 42 | REF. | 1294062 | STRAINER, LUBE OIL SUMP |
| 43 | REF. | 1294063 | SUMP, LUNE OIL |
| 44 | REF. | 6300081 | NUT, 1/2″ CAD. PLATED HEX |
| 45 | REF. | 7035305-01 | SCREW, 1/2″ X 1-1/2″ LG. C.P. FLAT HEAD MACHINE |
| 46 | REF. | 7619050 | WASHER, 1/2″ REG. C.P. SPRING LOCK |
| 47 | REF. | 7621032 | WASHER, 1/2″ N TYPE A 1.062″ O.D. CAD. PLTD. |
| 48 | 2 | G 7000254-11 | CAPSCREW, 7/16″ X 3/4″ LG. GR. 5 C.P. HEX HEAD |
| 49 | 1 | 6320100 | NUT, 5/8″ HEX JAM |
| PUMP & RIGHT ANGLE GEARBOX ASSY. 7-P-50 TRIPLEX SLUSH PUMP SIZE: D PL 1291157 REV. B | |||
| ITEM | REQ’D | PART NO. | DESCRIPTION |
| 1 | 1 | G 1291158 | BRACKET, PUMP AND GEAR BOX MOUNTING |
| 2 | 1 | G 1291159 | PEDESTAL, GEAR BOX |
| 3 | 4 | G 1292283 | SHIM, PUMP |
| 4 | 1 | 1292286 | GUARD, COUPLING |
| 5 | 2 | 2401860 | KEY ( 1/4″ X 1/4″ X 1-1/4″ ) |
| 6 | 1 | 5902091 | FLANGE, 1″ A.S.A. 150 # THREADED FLAT FACE |
| 7 | 1 | 5902172 | FLANGE, 1-1/2″ A.S.A. 150 # THREADED FLAT FACE |
| 8 | 1 | 6010036 | GASKET, 1-1/2″ 150 # FLANGE |
| 9 | 1 | 6010037 | GASKET, 1″ 150 # FLANGE |
| 10 | 10 | 6300081 | NUT, 1/2″ CAD. PLATED HEX |
| 11 | 4 | 6300103 | NUT, 5/8″ – 11 UNC CAD. PLATED HEX |
| 12 | 4 | 7000206-11 | CAPSCREW, 3/8″ X 3/4″ CAD. PLT HEX HEAD GR5 |
| 13 | 4 | 7000211-11 | CAPSCREW, 3/8″ X 1-3/4″ CAD. PLT HEX HEAD GR5 |
| 14 | 2 | 7000306-11 | CAPSCREW, 1/2″ X 1-3/4″ CAD. PLT HEX HEAD GR5 |
| 15 | 4 | 7000307-11 | CAPSCREW, 1/2″ X 2″ CAD. PLT HEX HEAD GR5 |
| 16 | 4 | 7000309-11 | CAPSCREW, 1/2″ X 2-1/4″ CAD. PLT HEX HEAD GR5 |
| 17 | 4 | 7000398-11 | CAPSCREW, 5/8″ X 2-1/4″ CAD. PLT HEX HEAD GR5 |
| 18 | 4 | 7619041 | WASHER, 3/8″ CAD. PLATED SPRING LOCK |
| 19 | 10 | 7619050 | WASHER, 1/2″ CAD. PLATED SPRING LOCK |
| 20 | 4 | 7619058 | WASHER, 5/8″ CAD. PLATED SPRING LOCK |
| 21 | 4 | 7621024 | WASHER, 3/8″ CAD. PLATED TYPE “A” |
| 22 | 4 | G 7624021 | WASHER, 1/2″ I.D. X 1-1/4″ O.D. X .217″ THICK FLAT |
| 23 | 1 | G 7802332 | COUPLING |
| 24 | 1 | 7806091 | BOX, GEAR |
| 25 | 1 | 7815147 | PUMP, 1″ X 1-1/2″ CENTRIFUGAL |
| 26 | 1 | 7801121 | BREATHER |
| SUCTION STABILIZER ASSEMBLY 7-P-50 TRIPLEX SLUSH PUMP SIZE: C PL 1294288 REV. | |||
| ITEM | REQ’D | PART NO. | DESCRIPTION |
| – | – | 1294288 | SUCTION STABILIZER ASSEMBLY ( CONSISTS OF THE FOLLOWING ) |
| 1 | 1 | 5902443 | FLANGE, 8″ A.N.S.I. 150 # R.J. WELD NECK |
| 2 | 1 | 98-016-230 | ELBOW, 8″ X 90 DEG. LONG RADIUS WELD |
| 3 | 1 | 98-052-101 | REDUCER, 12″ X 8″ CONCENTRIC WELD |
| 4 | 1 | 6709658B | PIPE, 12″ STD. WELD |
| 5 | 1 | 98-012-034 | CAP, 12″ STD. WELD |
| 6 | 1 | 78-105-206 | COUPLING, 3/4″ 3000 # HALF THREADED FEMALE PIPE |
| 7 | 2 | 78-105-204 | COUPLING, 1/2″ 3000 # HALF THREADED FEMALE PIPE |
| 8 | 2 | 86-424-001 | NIPPLE, 1/2″ X CLOSE SCH. 40 BW STEEL PIPE |
| 9 | 2 | 78-179-004 | ELBOW, 1/2″ X 90 DEG. 3000 # STREET |
| 10 | 2 | 78-101-081 | VALVE, 1/2″ BALL |
| 11 | 1 | 86-425-013 | NIPPLE, 3/4″ X 4″ LG. SCH. 40 BW STEEL PIPE |
| 12 | 1 | 78-101-082 | VALVE, 3/4″ BALL |
| STRAINER CROSS ASSEMBLY 7-P-50 TRIPLEX SLUSH PUMP SIZE: C PL 1294186 REV. C | |||
| ITEM | REQ’D | PART NO. | DESCRIPTION |
| – | – | 1294186 | STRAINER CROSS COMPLETE ( CONSISTS OF THE FOLLOWING ) |
| 1 | 1 | 1291208 | CROSS ( ONLY ) |
| 2 | 1 | 1291212 | STRAINER COMPLETE |
| 3 | 24 | 2402560 | STUD, 1-1/4″ X 6-1/4″ LG. |
| 4 | 24 | 6300200 | NUT, 1-1/4″ HEAVY HEX |
| 5 | 2 | 1291180 | SHIM, ( 1/8″ THICK ) |
| 6 | 4 | 1291184 | SHIM, ( 1/32″ THICK ) |
| 7 | 1 | 1294188 | SUPPORT, CROSS |
| 8 | 1 | 1291221 | PLATE, BASE |
| 9 | 4 | 7000439-11 | CAPSCREW, 3/4″ X 1-3/4″ LG. GRADE 5 CAD. PLTD. HEX HEAD |
| 10 | 4 | 7000440-11 | CAPSCREW, 3/4″ X 2″ LG. GRADE 5 CAD. PLATED HEX HEAD |
| 11 | 8 | 7619066 | WASHER, 3/4″ REG. CAD. PLATED SPRING LOCK |
| 12 | 1 | 2407004 | TAG, STRAINER CLEAN-OUT |
| 13 | 2 | 7178088 | SCREW, NO. 10 X 3/8″ LG. TYPE “U” ROUND HEAD DRIVE |
| FLANGE AND GASKET KIT FOR STRAINER CROSS 1294186 | |||
| ITEM | REQ’D | PART NO. | DESCRIPTION |
| 2 | 5912370 | FLANGE, 4″ API 5000 # WELD NECK RING JOINT WITH 3.152″ BORE | |
| 1 | 1290305 | FLANGE, STRAINER CLEAN-OUT | |
| 4 | 6908033 | RING, R39D OVAL JOINT | |
| STRAINER CROSS COMPLETE 7-P-50 TRIPLEX SLUSH PUMP SIZE: C PL 1294187 DWG.REV. B | |||
| ITEM | REQ’D | PART NO. | DESCRIPTION |
| — | — | 1294187 | STRAINER CROSS COMPLETE ( CONSISTS OF THE FOLLOWING ) |
| 1 | 1 | 1291210 | CROSS ( ONLY ) |
| 2 | 1 | 1291212 | STRAINER COMPLETE |
| 3 | 24 | 2402560 | STUD, 1-1/4″ X 6-1/4″ LG. |
| 4 | 24 | 6300200 | NUT, 1-1/4″ HEAVY HEX |
| 5 | 2 | 1291180 | SHIM, 1/8″ THICK |
| 6 | 4 | 1291188 | SHIM, 1/32″ THICK |
| 7 | 1 | 1294188 | SUPPORT, CROSS |
| 8 | 1 | 1291212 | PLATE, BASE |
| 9 | 4 | 7000439-11 | CAPSCREW, 3/4″ X 1-3/4″ LG. GR. 5 CAD. PLTD. HEX HEAD |
| 10 | 4 | 7000440-11 | CAPSCREW, 3/4″ X 2″ LG. GR. 5 CAD. PLTD. HEX HEAD |
| 11 | 8 | 7619066 | WASHER, 3/4″ REG. CAD. PLTD. SPRING LOCK |
| 12 | 1 | 2407004 | TAG, STRAINER CLEAN-OUT |
| 13 | 2 | 7178088 | SCREW, NO. 10 X 3/8″ LG. GR. 5 CAD. PLTD. ROUND HEAD DRIVE |
| FLANGE AND GASKET KIT FOR STRAINER CROSS 1294187 | |||
| ITEM | REQ’D | PART NO. | DESCRIPTION |
| 2 | 5912370 | FLANGE, 4″ API 5000 # WELD NECK RING JOINT WITH 3.152″ BORE | |
| 1 | 1290305 | FLANGE, STRAINER CLEAN-OUT | |
| 3 | 6908033 | RING, R39D OVAL JOINT | |
| 1 | 6908030 | RING, R37D OVAL JOINT | |
| HOIST COMPLETE 7-P-50 TRIPLEX SLUSH PUMP SIZE : D PL 1294125 REV. B | |||
| ITEM | REQ’D | PART NO. | DESCRIPTION |
| — | — | 1294125 | HOIST ASSEMBLY LESS TROLLEY ( CONSISTS OF ITEM 1 THRU 12 ) |
| 1 | 1 | 1291126 | BOOM |
| 2 | 2 | 1290127 | BRACKET |
| 3 | 1 | 1294126 | MAST |
| 4 | 2 | 1294127 | ROD |
| 5 | 4 | 7804019 | END, YOKE |
| 6 | 4 | 7800044 | PIN ASSEMBLY, YOUKE |
| 7 | 1 | 7805052 | FITTING, 1/8″ HYD. GREASE |
| 8 | 4 | 6320120 | NUT, 3/4″ HEX JAM |
| 9 | 2 | 7000395-11 | CAPSCREW, 5/8″ X 1-1/2″ LG. GRADE 5 HEX HEAD |
| 10 | 2 | 7000439-11 | CAPSCREW, 3/4″ X 1-3/4″ LG. GRADE 5 HEX HEAD |
| 11 | 2 | 7602058 | WASHER, 5/8″ REG. SPRING LOCK |
| 12 | 2 | 7602066 | WASHER, 3/4″ REG. SPRING LOCK |
| REF. | 1 | 7819040 | TROLLEY, 1/2″ TON PLAIN” |
Contact:Mr Liu
Mobile:15869109368
Tel:86-571-89967020
E-mail:info@dawopu.com
Address:No151 ,ZiDingXiang Rd, Hangzhou. Zhejiang Province, China
