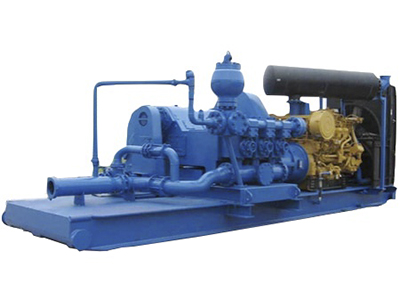

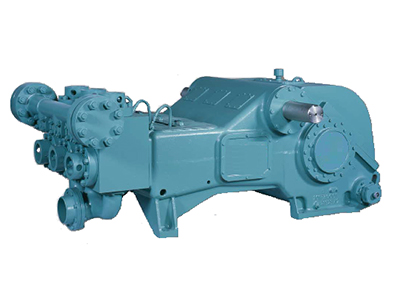

Dawopu mainly offers mud pump for drilling rigs and has over 20 plus years in making oilfield products. The mud pump PZ/7/8/9 is suitable for oil and gas drilling.
This series mud pump provides compact structure, light weight, small occupation and high efficiency.
The followings are our drilling mud pumps with different types and parameters.
1. Type PZ7 Mud Pump
| Pump RPM | Liner Diameter | ||||||||
| 145 | Inch | 7" | 6.5" | 6.25" | 6" | 5.5" | 5" | 4.5" | 4" |
| mm | 178 | 165 | 152 | 152 | 140 | 127 | 114 | 102 | |
| Capacity (displacement) / per minute | |||||||||
| Gal. | 507 | 437 | 404 | 373 | 313 | 259 | 210 | 166 | |
| Lit. | 1919 | 1654 | 1530 | 1412 | 1185 | 980 | 795 | 628 | |
| Maximum PSI | |||||||||
| PSI | 1673 | 1940 | 2100 | 2277 | 2710 | 3279 | 4048 | 5000 | |
| kg/Sq.cm2 | 118 | 136 | 148 | 160 | 191 | 231 | 285 | 352 | |
The ratings are based on 90% mechanical efficiency and 100% volumetric efficiency.
2. Type PZ8 Mud Pump
| Pump RPM | Liner Diameter | ||||||||
| 145 | Inch | 7" | 6.5" | 6.25" | 6" | 5.5" | 5" | 4.5" | 4" |
| mm | 178 | 165 | 152 | 152 | 140 | 127 | 114 | 102 | |
| Capacity (displacement) / per minute | |||||||||
| Gal | 580 | 500 | 462 | 426 | 358 | 296 | 240 | 189 | |
| Lit | 2196 | 1893 | 1749 | 1613 | 1355 | 1120 | 908 | 715 | |
| Maximum PSI | |||||||||
| PSI | 1996 | 2315 | 2504 | 2717 | 3233 | 3912 | 4830 | 5000 | |
| kg/Sq.cm2 | 140 | 163 | 176 | 191 | 227 | 285 | 340 | 352 | |
The ratings are based on 90% mechanical efficiency and 100% volumetric efficiency.
3. Type PZ9 Mud Pump
| RPM | Liner Diameter | ||||||||
| 145 | Inch | 7" | 6.5" | 6.25" | 6" | 5.5" | 5" | 4.5" | 4" |
| mm | 178 | 165 | 152 | 152 | 140 | 127 | 114 | 102 | |
| Capacity (displacement) / per minute | |||||||||
| Gal. | 585 | 504 | 466 | 430 | 361 | 298 | 242 | 191 | |
| Lit. | 2214 | 1908 | 1764 | 1628 | 1367 | 1128 | 916 | 725 | |
| Maximum PSI | |||||||||
| PSI | 2639 | 3060 | 3310 | 3592 | 4274 | 5000 | 5000 | 5000 | |
| kg/Sq.cm2 | 186 | 215 | 233 | 253 | 301 | 352 | 352 | 352 | |
Mud Pump Models
| Bomco/ Emsco | F-1300 | FB-1300 | F-1600 | FB-1600 | FA-1300 | FA-1600 | FC-2200 | F-1000 | F-800 | F-500 |
| F-350 | DB-550 | D-700 | DA-700 | D-300/500 | D-375 | |||||
| National | 7P50 | 8P80 | 9P100 | 10P130 | 12P160 | 14P220 | N1300 | C-250 | E-700 | G-100 |
| K-500 | K-380 | K-500A | K-700A | C-250 | C-350 | JWS-400 | ||||
| Gardner Denver | PZ7 | PZ8/9 | PZ10/11 | FK-FXK | FY-FXX | FG-FXG | FF-FXP | KG-KXG | FQ-FXQ | FF-FXF |
| Oilwell | A-560-PT | A-600-PT | A-850-PT | A-1100-PT | A-1400-PT | A-1700-PT | ||||
| Russian | UNBT-950 | UNB-600 | 8T-650 | NBT600 | UNB1180 | UNBT1180L | 3PN1600 | E1600 | ||
| Ideco | T-500 | T-800 | T-1000 | T-1300 | T-1600 | |||||
| Wirth | TPK1000 | TPK1600 | TPK2000 | |||||||
| LS National | 3NB-500C | 3NB1000C | 3NB1300C | 3NB1600 | 3NB800 | 3NB1300A | ||||
| Ellis | E-447 | E-2200 | ||||||||
| Drillmec | 9T1000 | 12T1600 | ||||||||
| OTHER BRANNER: HONGHUA, QINGZHOU, WIRTH, OPI, ELLIS WILLIAMS,WILSON, GASO, SKYTO, BREWSTER, WETHERFORD | ||||||||||
