Mud Pump Parts

  • Mud Pump Piston Rods

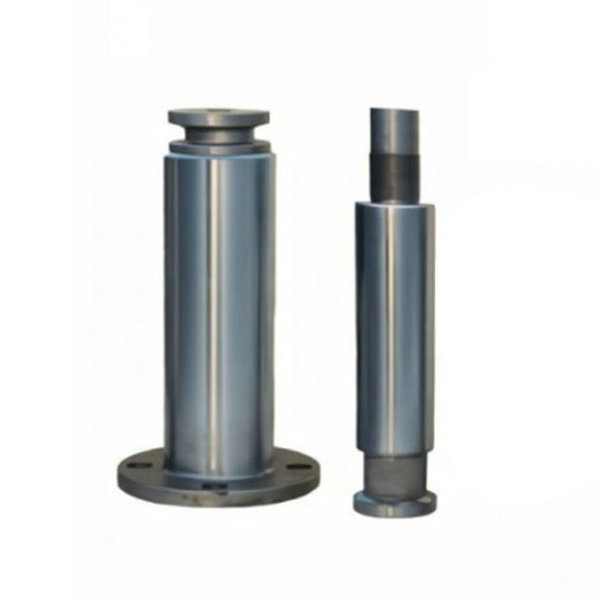

Mud Pump Piston Rods

Mud Pump Piston Rods

  • ID:
  • Description:Dawopu pony rods (extension rods) and clamps are fabricated with premium quality, heat treat alloy steel with mirror- like surface polishing. The high standard of chrome finishing ensures excellent resistance against fatigue, abrasion and corrosion, offering longer service lifetime than the competit
  • ORDER

Dawopu pony rods (extension rods) and clamps are fabricated with premium quality, heat treat alloy steel with mirror- like surface polishing. The high standard of chrome finishing ensures excellent resistance against fatigue, abrasion and corrosion, offering longer service lifetime than the competitors.

Dura-Bar Grade 65-45-12 Ductile Iron

Original Material Hot Rolled 1018 Carbon Steel

Problems Solved Machining Cycle Time, Cost

Reduction, Weight Reduction

This manufacturer of hydraulic fracturing pumps had an initiative to find cost savings in the production of their pony rod.

A material which could replace the 1018 steel had to compare in performance, which included coatability. After testing

Dura-Bar, they found that the total coating time could be reduced by 25%, due to a shorter preheat cycle needed.

The manufacturer previously had a 30% scrap rate due to poor coating on the 1018 steel. Dura-Bar analyzed the coating

on our 65-45-12 and the lab results were favorable to the manufacturer.

Dura-Bar 65-45-12 also resulted in a 46% savings in machining cycle time and therefore a significant gain in machine

capacity.


Main features are

OEM and aftermarket pony rods in stainless steel and hardened steel
TIGHT TOLERANCE MACHINING
BATCH TO BATCH CONSISTANCY
100% INSPECTION AT YOUR CHOICE

Installation sketch of Crosshead Extension Rods and Stuffing Box Seals


(1) Diaphragm stuffing box and mud apron  (2) Bolt  (3) Shim  (4) Sealing ring  (5) Spring  (6) Two-lip seal


(7) Sealing ring  (8)O-ring  (9) Locking spring  (10) Bolt  (11) Bolt  (12) O-ring


Bomco: F-500, F-800, F-1000,F-1300, F-1600,F-1600HL, F-2200HL
Brewster: B-1000-T, B-1100-T, B-1300-T, B-1600-T
HONGHUA: HHF-500, HHF-800, HHF-1000,HHF-1300,HH F-1600,HHF-1600HL,HHF-2200HL
Emsco: F-350,F-500,F-650, F-800, F-1000,FD-1000, FB-1300,FB-1600, FA-1600, FA-1300, FC-1600, FD-1600,FC-2200D-300/500, D-175,D-225,D-375,D-500,D-550,DA-500,DB-500,D-700,DA-70,DB-700,DC-700,DA-850,DB-850,DC-850,D-1000,DB-1000,DC-1000,D-1000-A,D-1350,D-1650
National: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220,JWS-165-L,JWS-340, JWS-400,C-250,C-350,K-380,K-500-A,G-700,K-700,N-1000,N-1300,N-1600
Oilwell: 350-PT,A-650P-T,A-850-PT, A-1100-PT, A-1400-PT,A-1700-PT,HD-1400-PT,HD-1700-P 612-P, 212-P,214-P,218-P,700-P,816-P,818-P,1000-P
Ideco:  T-500, T-800,T-1000, T-1300, T-1600,MM-450,MM-500-F,MM-600-A,MM-700-F,MM-1000
Gardner Denver: PZ-7, PZ-8,PZ-9,PZ-10, PZ-11, FK-FXK, FY-FXD, FD-FXX,FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,TGE,TGF,TGH,PAH-275
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000
Russian Pumps:UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180,UNB1180L,
WEATHERFORD/Ellis Williams:MP-5,MP-8,MP-10,MP-13,MP-16,E-447, E-2200, W446, W440
Drillmec: 7TS-600,8T-800,9T1000,10T-1300, 12T1600,14T-2200,10D2C,8D1S
Upetrom: 3PN-1000, 3PN-1600, 3PN-1300, 3PN-2000
OPI: 350-D,350-GD,500-DC,700-HDL | 1000-HDL
Lewco/Ewco:W-250-C,WH440,W446,W600,WH600,WH770,W1100,WH1312,W1612,W1712,W2000,W2214,W2215
American Block: K800,K1000,K1300,K1600,K2200
Brewster: B-1000-T,B-1100-T,B-1300-T,B-1600-T
Loadmaster: LSF-500, LSF-800, LSF-1000, LSF-1300, LSF-1600
Soilmec: 7T500,7T508,8T650
Dragon: 440HP,660HP
GASO/Wheatly:1550,1560,1563,1654,1742,1753,1874,1849,1860,2652
Great American: GA-550,GA-750
TFI:BH-800, F-500, F-800, F-1000,F-1300, F-1600
TSC:WF-400,WF-450,WF-700,WFU-750,WF-1000,WF-1300,WF-1600,WF-2000,WF-2200

Russian pump	UNBT950,UNB600,8T650,UNBT 1180L,NBT600,NBT300ect.
BOMCO/Emsco/HongHua	FB1300/1600, F1300/1600, F800/1000, F500 & some duplex pumps.
Gardener denver	PZ 7, PZ 8/9, PZ 10/11, KF-FXK, FY-FXD, FD-FXX, FG-FXG, FQ-FXQ, FF-FXP, FG-GXG.
National	7P50, 8P80, 9P100, 10P130, 12P160, 14P220, JWS165, JWS340/400, C250/350, K700, K500, K380.
Oilwell	A560/600PT, A850/1100PT, A1400/1700PT, 214P, 810P.
Ideco	T500, T800/1000, T1300/1600.
Wirth	TPK1000, TPK1600, TPK2000/2200.
Weatherford	MP-5,MP-8,MP-10,MP-13,MP-16
