| Item | Description | Part No. |
| Complete Assembly | 8476-A | |
| 1 | Threaded Flange | 4476 |
| 2 | Screw Gland | 4597 |
| 3 | Plug Assembly w/Guide & Bushing | 4676-2A |
| 4 | Valve Guide | 4776 |
| 5 | Valve Guide Bushing | 4700-I |
| 6 | Valve Guide Screw | 4016-98 |
| 7 | Valve Cover Stud w/Nut | 4015-54 |
| 8 | Power End Stud w/Nut | 4015-95 |
| 9 | Liner Retainer Capscrew | 4017-65 |
| 10 | Liner Retainer Flange | 6476 |
| 11 | Liner Retainer Nut | 6576 |
| 12 | Suction Module Stud w/Nut | 4018-17 |
| 13 | Suction Module (Studded) | 8476-2 |
| 14 | Discharge Module (Studded) | 8476-1 |
| 15 | Dowel Pin | 8488-5 |
| 16 | Wear Plate | 8476-3 |
| 17 | Valve Cover Plug Seal | P-107 |
| 18 | Module & Wear Plate Seal | 2988 |
| 19 | Piston Rod | 1286-32 |
| 20 | Sub Rod | 1286-1 |
| 21 | Rod Clamp w/Spray System | 1286-CW |
Dawopu manufactures a wide variety of valves and seats, for the following applications, among others: Drilling Rig pumps, Work over pumps, high pressure well service fracturing pumps and cementing pumps.
We provides a full range of Full Open, 3-Web, 4- Web and Plate Type design valves and seats available in API 4# thru API 8# sizes to fit all major mud pumps and accommodate for all types of drilling conditions, mud properties and temperatures reaching up to 350°F.
Full open valves and seats have many different designs which include uniformly forged FKN and Roughneck Styles.
Features:
Forged and heat treated alloy steel valve body and seat.
Insert permanently bonded to valve body.
High Temp and High Pressure urethane insert rated 300° and 7,500 PSI available.
| API | Description | Web Valves and Seats | Full Open Valves and Seats | Brands Valves | ||||||||
| GD 3 Web | 4 Web | Full Open | Full Open Bonded | Roughneck Style | FKN Style | Baker Plate Type | Baker Double Angle | Weatherford Full Open | Weatherford 4-web | Drillmec | ||
| API-6 | Valve Assembly | / | 060152808 PREM | 6FO-V1 PREM | 6FO-V2 PREM | 9700285 PREM | 1560995 PREM | 050011900 | 050011800 | 1318053 PREM | 1318050 PREM | 6FO-V1 PREM |
| Seat | / | 061102653 PREM | 6FO-S1 PREM | 6FO-S1 PREM | 9702547 PREM | 1561380 PREM | 050481800 | 052000800 | 1318008 PREM | 1318007 PREM | 6FO-S1 PREM | |
| Seat for National Pumps | / | 061102604 PREM | 6FO-S4 PREM | 6FO-S4 PREM | 9702555 PREM | 1561450 PREM | 051243600 | 051243600 | / | / | 6FO-S4 PREM | |
| Urethane Insert | / | 062400106 PREM | 6FO-SI PREM | 6FO-SI PREM | 9705090 PREM | 1560587 PREM | 051584400 | 051584500 | 1317993 PREM | 1317991 PREM | 6FO-SI PREM | |
| Spring | / | 055413389 PREM | 5710-115 PREM | 5710-115 PREM | 8201650 PREM | 1560701 PREM | 051398900 | 051398900 | 1318028 PREM | 1318026 PREM | 5710-115 PREM | |
| API-7 | Valve Assembly | 202PZL482A PREM | 060155041 PREM | 7FO-V1 PREM | 7FO-V2 PREM | 9700250 PREM | 1560985 PREM | 050506200 | 050011000 | 1318061 PREM | 1318058 PREM | 40390797 |
| Seat | 202PZL039 PREM | 061101507 PREM | 7FO-S1 PREM | 7FO-S1 PREM | 9702504 PREM | 1561370 PREM | 050930900 | 050930900 | 1318014 PREM | 1318013 PREM | 40390798 | |
| Seat for National Pumps | / | 061102505 PREM | 7FO-S4 PREM | 7FO-S4 PREM | 9702539 PREM | 1561440 PREM | 051429900 | 051429900 | / | / | / | |
| Urethane Insert | 201PZL106 PREM | 062400338 PREM | 7FO-SI PREM | 7FO-SI PREM | 9705228 PREM | 1560557 PREM | 050489300 | 051427500 | 1317998 PREM | 1317996 PREM | RI40390797-01 | |
| Spring | 5710-110 PREM | 055413397 PREM | 15180185 PREM | 5710-115L PREM | 5710-115L PREM | 1560702 PREM | 051398800 | 051398900 | 1318029 PREM | 1318027 PREM | RI40390796-03 | |
| API-8 | Valve Assembly | / | 060140100 PREM | 8FO-V1 PREM | 8FO-V2 PREM | 9700382 PREM | 1560965 PREM | 050510900 | 050012000 | 8FO-V1 PREM | 060140100 PREM | 40392143 |
| Seat | / | 061100608 PREM | 8FO-S1 PREM | 8FO-S1 PREM | 9702652 PREM | / | 050484400 | 050484400 | 8FO-S1 PREM | 061100608 PREM | 40392144 | |
| Seat for National Pumps | / | 061102505 PREM | 8FO-S4 PREM | 8FO-S4 PREM | 9702653 PREM | 1561410 PREM | 050484500 | 050484500 | 8FO-S4 PREM | 061102505 PREM | / | |
| Urethane Insert | / | 062400338 PREM | 8FO-SI PREM | 8FO-SI PREM | 9705236 PREM | 1560567 PREM | 050489700 | 051583100 | 8FO-SI PREM | 062400338 PREM | / | |
| Spring | / | 5710-030 PREM | 5710-115L PREM | 5710-115L PREM | 5710-115L PREM | 1560702 PREM | 050471300 | 052050400 | 5710-115L PREM | 5710-030 PREM | 40392145 | |
| API | Description | Brands Valves | ||||||||
| Baker Plate Type | Baker Double Angle | Weatherford Full Open | Weatherford 4-web | Drillmec | MK 4-Web | MK Roughneck | Texma 4-web | Texma Full Open | ||
| API-6 | Valve Assembly | 050011900 | 050011800 | 1318053 | 1318050 | 6FO-V1 | U5B-EH | RN6-V1 | TM04507335 | TM04507401 |
| Seat | 050481800 | 052000800 | 1318008 | 1318007 | 6FO-S1 | 6ADD-B6 | RN6-S6 | TM01116877 | TM01116925 | |
| Seat for National Pumps | 051243600 | 051243600 | / | / | 6FO-S4 | 6ADD-B4 | RN6-S4 | T011101053 | TM01116949 | |
| Urethane Insert | 051584400 | 051584500 | 1317993 | 1317991 | 6FO-SI | UDD-6AB | RN6-I | UDD-6AB | RN6-I | |
| Spring | 051398900 | 051398900 | 1318028 | 1318026 | 5710-115 | 5710-111 | 5710-110L | 5710-111 | 5710-110L | |
| API-7 | Valve Assembly | 050506200 | 050011000 | 1318061 | 1318058 | 40390797 | U5C-EEF | RN7-V1 | TM04507336 | TM04507378 |
| Seat | 050930900 | 050930900 | 1318014 | 1318013 | 40390798 | 7DD-B1 | RN7-S1 | TM01116878 | TM01116926 | |
| Seat for National Pumps | 051429900 | 051429900 | / | / | / | 7DD-B12 | RN7-S12 | TM01116879 | TM01116946 | |
| Urethane Insert | 050489300 | 051427500 | 1317998 | 1317996 | RI40390797-01 | UDD-7B | RN7-I | T094001030 | T094001072 | |
| Spring | 051398800 | 051398900 | 1318029 | 1318027 | RI40390796-03 | 5710-115 | 5710-115L | 5710-115 | 5710-115L | |
| API-8 | Valve Assembly | 050510900 | 050012000 | 8FO-V1 | 060140100 | 40392143 | U5B-LP | RN8-V2 | T021101207 | T045001101 |
| Seat | 050484400 | 050484400 | 8FO-S1 | 061100608 | 40392144 | 8DD-B2 | RN8-S1 | TM01116879 | T045001090 | |
| Seat for National Pumps | 050484500 | 050484500 | 8FO-S4 | 061102505 | / | 8DD-B7 | RN8-S7 | TM01116926 | T011101126 | |
| Urethane Insert | 050489700 | 051583100 | 8FO-SI | 062400338 | / | UDD-8B | RN8-I | UDD-8B | RN8-I | |
| Spring | 050471300 | 052050400 | 5710-115L | 5710-030 | 40392145 | 5710-110 | 5710-110L | 5710-110 | 5710-110L | |

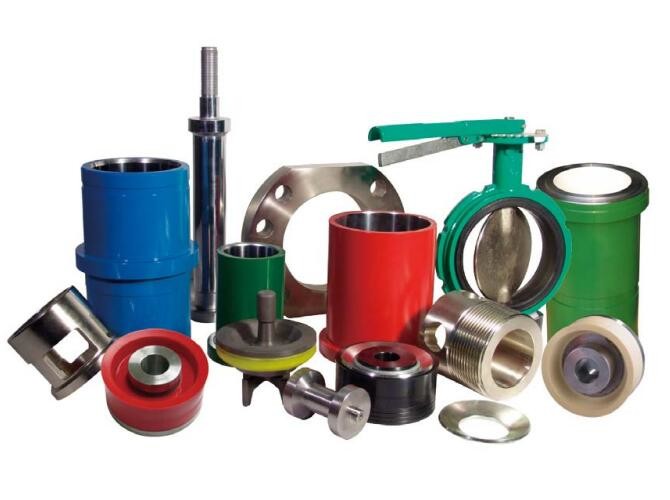

All our fluid end parts are manufactured to API 7K quality standards.
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
| BREWSTER B-1300-T, B-1600-T | QTY PER PUMP | |||
| FLUID END MODULE & ACCESSORIES | ||||
| ITEM # | OEM PART # | MISSION PART # | ||
| FEMBREWB1300TCA | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1-27) | 3 | ||
| 1 | 036033-01-01-5 | FEMBREWB1300T | FLUID, MODULE STUDDED (INCLUDES 1-10 & 27) | 3 |
| 2 | 036033-03-01-1 | B1316CYHS | STUD, CYLINDER HEAD | 30 |
| 3 | 071101-36-00-4 | EMSF1000PFSN | NUT, CYLINDER HEAD | 30 |
| 4 | 036033-05-01-6 | B1316DMS | STUD, DISCHARGE MANIFOLD | 12 |
| 5 | 071101-18-64-8 | IDT800TRSN | NUT, DISCHARGE MANIFOLD | 12 |
| 6 | 036033-04-01-9 | B1316VCS | STUD, VALVE COVER | 30 |
| 7 | 071101-18-64-8 | EMSF1000PFSN | NUT, VALVE COVER | 30 |
| 8 | 036033-02-01-3 | B1316PFS | STUD, POWER FRAME | 24 |
| 9 | 071101-36-00-4 | EMSF1000PFSN | NUT, POWER FRAME | 24 |
| 10 | 071101-23-41-6 | B1100LCB | BOLT, LINER CLAMP | 12 |
| 11 | 036033-22-01-1 | B1316LLR | LINER LOCK RING | 3 |
| 12 | 036033-18-01-9 | B1316LC | LINER CLAMP | 3 |
| 13 | 036033-13-01-0 | B1316LVG | GUIDE, LOWER VALVE | 3 |
| 14 | 036033-13-01-0 | B1316AR | RING, LOWER VALVE GUIDE ALIGNMENT | 3 |
| 15 | 036033-36-01-1 | B1316VGRC | RETAINER, LOWER VALVE GUIDE RETAINER CLIP | 3 |
| 16 | 036033-33-01-8 | 07916786 | GASKET, CYLINDER HEAD - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 3 |
| 17 | 036033-12-01-2 | B1316CYHPLG | PLUG, CYLINDER HEAD | 3 |
| 18 | 036033-06-01-4 | B1316CYHFLG | RING, CYLINDER HEAD THREADED | 3 |
| 19 | 036033-08-01-0 | B1316CYHCAP | CAP, CYLINDER HEAD THREADED | 3 |
| 20 | 036033-32-01-0 | 07916785 | GASKET, VALVE CAP | 3 |
| 21 | 114616-00-00-6 | B1316UVG | GUIDE, UPPER VALVE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 3 |
| 22 | 036033-11-01-4 | B1316VC | COVER, VALVE | 3 |
| 23 | 036033-07-01-2 | B1316FLG | RING, VALVE COVER THREADED | 3 |
| 24 | 036033-09-01-8 | B1316CAP | CAP, VALVE COVER THREADED | 3 |
| 25 | 072102-01-28-6 | 99609337 | GASKET, DISCHARGE MANIFOLD "O" RING | 3 |
| 26 | 072102-01-34-4 | 99609363 | GASKET, SUCTION MANIFOLD "O" RING | 3 |
| 27 | B1100SMB | CAPSCREW, SUCTION MANIFOLD | 18 |
| MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 | QTY PER PUMP | |||
| FLUID END MODULE & ACCESSORIES | ||||
| ITEM # | OEM PART # | MISSION PART # | ||
| FEM12PASSYSWNS | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1-23) | 3 | ||
| 1 | 8476-6S | FEM12PSUCSWNS | MODULE, SUCTION STUDDED (INCLUDES ITEMS: 1,13,14,& 22) | 3 |
| 2 | 8476-5D | FEM12PDISSWNS | MODULE, DISCHARGE STUDDED - (INCLUDES ITEMS: 2,3,4,5,6,7,8,13 & 14) | 3 |
| 3 | 4018-17 | 12P160DSUCS | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | PEP55 | NUT, DISCHARGE TO SUCTION STUD | 18 | |
| 5 | 4015-95 | NAT12P160PFS | STUD, POWER END | 30 |
| 6 | 8P80TRSN | NUT, POWER END STUD | 30 | |
| 7 | 8488-5 | PEP70 | PIN, DOWELL | 6 |
| 8 | 4017-65 | PEP75 | CAPSCREW,LINER RETAINER SOCKET HEAD | 18 |
| 9 | 8476-3 | PP6021260SW | PLATE, LINER WEAR | 3 |
| 10 | 2988 | 1290344 | GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT MATLS) | 6 |
| 11 | 6476 | 12PLASW | FLANGE, LINER RETAINER (LINER BUSHING) | 3 |
| 12 | 6576 | 12PLANSW | NUT, LINER RETAINER | 3 |
| 13 | 4015-54 | 12PTRSSW | STUD, THREADED RING | 72 |
| 14 | 12P160TRSN | NUT, THREADED RING STUD | 72 | |
| 15 | 4676-6A | 12PVCASSYSWNS | PLUG, VALVE COVER (INCLUDES ITEMS 15,19,20,& 21) | 6 |
| 16 | 4476 | 12PFLGSW | RING, THREADED (THREADED FLANGE) | 6 |
| 17 | 4597 | 12PCAPSW | CAP, THREADED (SCREW GLAND) | 6 |
| 18 | P-119 | 07207119 | SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 19 | 4776R | 12PVGASWNS | ASSEMBLY, VALVE GUIDE(INCLUDES ITEMS 19,& 20) | 6 |
| 20 | 4700-I | PZ789VGI | BUSHING, VALVE GUIDE | 6 |
| 21 | 4016-98 | PEP73 | SCREW, VALVE GUIDE | 12 |
| 22 | 4018-19 | 700048511 | CAPSCREW, SUCTION MANIFOLD | 24 |
| 23 | AJO-419R | 1540851 | GASKET, SUCTION MANIFOLD | 3 |
| 24 | 8376-2 | NAT12PDSMA | ADAPTER, DISCHARGE | 2 |
| 25 | 2976-2 | 2410031437 | SEAL, DISCHARGE ADAPTER | 4 |
| 26 | 8376-1 | NAT12PDSMC | CONNECTOR, DISCHARGE | 2 |
| 27 | 2976-1 | 2410031433 | SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER | 2 |
| 28 | 4018-18 | 700030711 | CAPSCREW, DISCHARGE CONNECTOR (W /LOCKWASHER) | 16 |
| 29 | 8376-3 | 1292175 | RING, BACKUP (DISCHARGE CONNECTOR) | 4 |
| 30 | 4018-39 | 7006685 | CAPSCREW, SOCKET HEAD 1 1/2" X 3" | 16 |
| MISSION "L" FOR NATIONAL 12-P-160 (7500 PSI WORKING PRESSURE) | QTY PER PUMP | ||
| FLUID END MODULE & ACCESSORIES (INCLUDING DISCHARGE MANIFOLD) | |||
| ITEM # | MISSION PART # | DESCRIPTION | |
| 80704032 | FLUID END ASSEMBLY COMPLETE INCLUDES ITEMS (1-27) ENOUGH FOR 1 PUMP | 1 | |
| 1 | 80704000 | MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 1,9,10,13,14,18,19,20,& 27) | 3 |
| 2 | 80704001 | MODULE, SUCTION STUDDED (INCLUDES ITEMS 2,3,4,18,&19) | 3 |
| 3 | 80704002 | STUD, (DISCHARGE TO SUCTION MODULE) | 24 |
| 4 | PEP55 | NUT, HEAVY HEX | 24 |
| 5 | 80704003 | THREADED RING | 6 |
| 6 | 80704004 | THREADED CAP | 6 |
| 7 | 80704005 | VALVE COVER (INCLUDES 11,12,& 17) | 6 |
| 8 | 80704006 | DISCHARGE MANIFOLD (7500 PSI WORKING PRESSURE) | 1 |
| 9 | 80702011 | STUD, DISCHARGE MANIFOLD | 12 |
| 10 | IDT800TRSN | NUT,HEX HEAVY | 12 |
| 11 | PZ789VGI | BUSHING, VALVE GUIDE | 6 |
| 12 | 12PVGASW | GUIDE, VALVE | 6 |
| 13 | 8P80TRSN | NUT, POWER FRAME STUD | 30 |
| 14 | PEP75 | CAPSCREW, LINER RETAINER | 18 |
| 15 | 12PLASW | RETAINER, LINER FLANGE | 3 |
| 16 | 12PLANSW | NUT, LINER RETAINER | 3 |
| 17 | 7007303 | SCREW, VALVE GUIDE | 12 |
| 18 | 6300240 | NUT, HEAVY HEX FOR THREADED RING | 72 |
| 19 | 80700014 | STUD, THREADED RING | 72 |
| 20 | PEP70 | PIN, DOWELL | 6 |
| 21 | 1290344 | SEAL, DISCH TO SUC & WEARPLATE - RUBBER (SEE DATASHEET FOR ALT MATLS) | 6 |
| 22 | 07207129 | SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 3 |
| 23 | 99609235 | SEAL, DISCHARGE MANIFOLD | 3 |
| 24 | 1540851 | SEAL, SUCTION MANIFOLD | 3 |
| 25 | 700048511 | CAPSCREW, SUCTION MANIFOLD | 3 |
| 26 | PP6021260SW | WEARPLATE | 3 |
| 27 | NAT12P160PFS | STUD, POWER FRAME | 30 |
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts
Mud Pump Manufactures and Models include:
Brewster Mud Pumps
B-550 | B-750 | B-1000 | 1100T | B-1300
Continental Emsco Mud Pumps
FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD
Continental Emsco Mud Pumps
GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH
Continental Emsco Mud Pumps
PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL
Ellis Williams (Luko) Mud Pumps
WW-440 | 14W-400 | 15W-600 | 9W-1000
Gaso Mud Pump
1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652
Gardner Denver Mud Pumps
FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL
Ideco Mud Pumps
MM-200 | MM-300 | MM-500 | MM-500F | MM-550
Ideco Mud Pumps
MM-550F | MM-700 | MM-700F | T-500
Ideco Mud Pumps
T-800 | T-1000 | T-1300 | T-1600
National Mud Pumps
C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000
National Mud Pumps
K-280 | K-380 | K-500 | K-500A | K-700A
National Mud Pumps
7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160
Oilwell Mud Pumps
6P-HD | 610-P | 212-P | 214-P | 218-P
Oilwell Mud Pumps
350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT
Oilwell Mud Pumps
A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT
OPI Mud Pumps
350-D | 700-HDL | 1000-HDL
Wheatley Mud Pumps
1036 | 6070 | 7024 | 7036
Wilson Mud Pumps
600 | 900
| Item | Description | Part No. |
| Complete Assembly | 8490-2A | |
| 1 | Threaded Flange | 4475 |
| 2 | Liner Wear Plate | 8490-3 |
| 3 | Module and Wear Plate Gasket | 2988 |
| 4 | Screw Gland | 4575 |
| 5 | Plug Assembly w/Guide & Bushing | 4675-2A |
| 6 | Plug Seal | P-129 |
| 7 | Valve Guide | 4775-2 |
| 8 | Valve Guide Bushing | 4700-I |
| 9 | Valve Guide Stud w/Nut | 4016-99 |
| 10 | Valve Cover Stud w/Nut | 4015-2 |
| 11 | Power End Stud w/Nut | 4016-9 |
| 12 | Liner Retainer Capscrew | 4017-36 |
| 13 | Liner Retainer Flange | 6490-3 |
| 14 | Liner Retainer Pilot Ring | 8422-3 |
| 15 | Liner Retainer Nut | 6590-1 |
| 16 | Suction Module Stud w/Nut | 4016-97 |
| 17 | Suction Module Studded | 8490-2 |
| 18 | Discharge Module Studded | 8490-1 |
| 19 | Dowel Pin | 8488-5 |
| 20 | Discharge Manifold Stud w/Nut | 4017-46 |
Contact:Mr Liu
Mobile:15869109368
Tel:86-571-89967020
E-mail:info@dawopu.com
Address:No151 ,ZiDingXiang Rd, Hangzhou. Zhejiang Province, China
