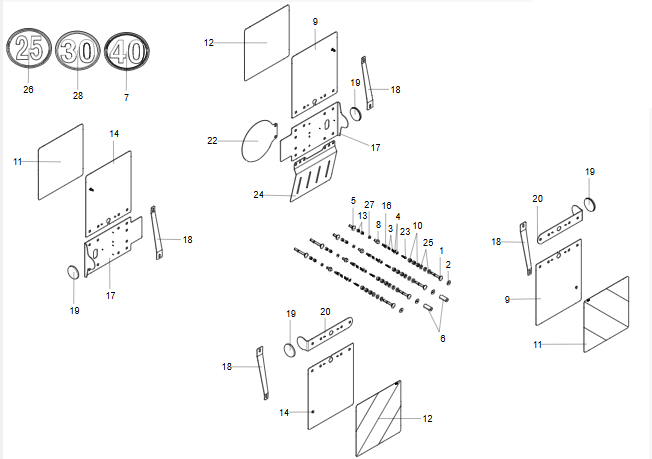

![FireShot Capture 103 - Proceed V24 - Vaderstad Parts Catalogue - [partscatalogue.vaderstad.com].png](/static/upload/image/20250917/1758079761676596.png)
| Id | Number | Quantity | Name | Specifications | Serial number | |
|---|---|---|---|---|---|---|
| 1 | 50060806021 | 4 | Carriage bolt | M8x60 8.8 | ||
| 2 | 52090600041 | 4 | Washer | 6.4x18x1.6 | ||
| 3 | 51010400021 | 8 | Lock nut | M4 8 | ||
| 4 | 52000400041 | 8 | Washer | 4.3x9x0.8 | ||
| 5 | 50060802521 | 2 | Carriage bolt | M8x25 8.8 | ||
| 6 | 481303 | 2 | Spacer | DI:8.5 L:38 | ||
| 7 | 483974 | 1 | Decal | |||
| 8 | 50290801621 | 4 | Hexagon head bolt | M8x16 8.8 | ||
| 9 | 30020456 | 2 | Plate | |||
| 10 | 51010800021 | 12 | Lock nut | M8 8 | ||
| 11 | 161502 | 2 | Decal | |||
| 12 | 161501 | 2 | Decal | |||
| 282187 | 1 | Decal | ||||
| 13 | 51010600021 | 8 | Lock nut | M6 8 | ||
| 14 | 30020457 | 2 | Plate | |||
| 16 | 50040602021 | 4 | Hexagon screw | M6x20 8.8 | ||
| 17 | 30020459 | 2 | Plate | |||
| 18 | 30020416 | 4 | Bracket | |||
| 19 | 158761 | 3 | Reflex | |||
| 20 | 30020462 | 1 | Plate | PC 114 - | ||
| 22 | 30020460 | 1 | Plate | |||
| 23 | 50030402021 | 4 | Hexagon screw | M4x20 8.8 | ||
| 50060807021 | 2 | Carriage bolt | M8x70 8.8 | |||
| 24 | 30020458 | 1 | Plate | |||
| 25 | 52000800041 | 12 | Washer | 8.4x16x1.6 | ||
| 26 | 421434 | 1 | Decal | |||
| 27 | 52000600041 | 4 | Washer | 6.4x12x1.6 |
