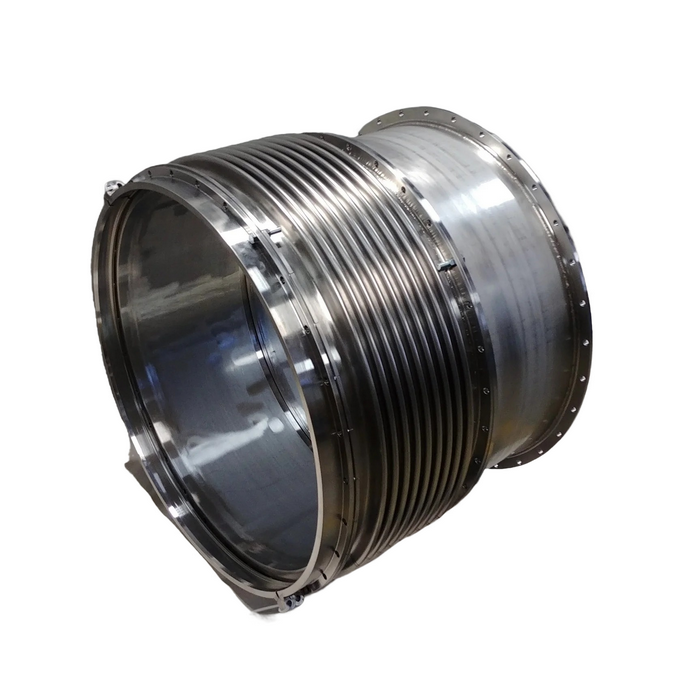

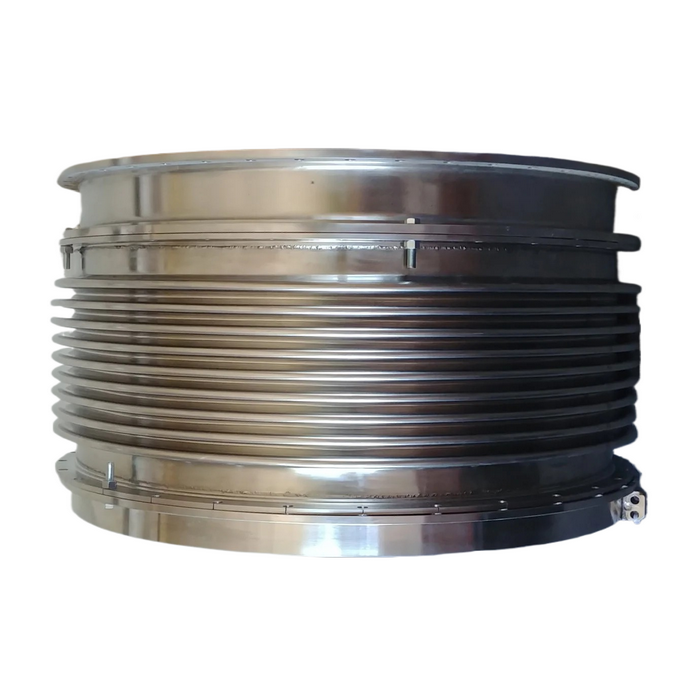

Turbine transition duct

The turbine transition duct is a critical component in gas turbine systems, serving as the structural and aerodynamic link between the combustion chamber and the turbine section. It plays a vital role in directing high-temperature, high-velocity combustion gases from the combustor outlet to the turbine inlet while ensuring optimal flow distribution, pressure recovery, and thermal protection. Due to its exposure to extreme operating conditions, the transition duct must meet stringent requirements in terms of material performance, structural integrity, and manufacturing precision.

At Dawopu, we specialize in the production of high-performance turbine components, including transition ducts, engineered to meet the demanding standards of power generation, oil & gas, and industrial turbine applications.

1. Function and Importance

The primary function of the turbine transition duct is to:

• Transfer combustion gases from the combustor to the turbine inlet

• Ensure uniform flow distribution across turbine nozzles

• Minimize pressure loss and turbulence

• Protect surrounding components from excessive heat

In modern gas turbines, especially those used in combined cycle power plants and aviation derivatives, the transition duct is essential for maintaining efficiency and extending the service life of downstream turbine components such as nozzle guide vanes (NGVs) and turbine blades.

2. Operating Conditions

Transition ducts operate under extremely harsh conditions, including:

• Temperatures exceeding 1000°C

• High pressure and flow velocity

• Severe thermal gradients and cyclic loading

• Oxidizing and corrosive environments

These conditions require the duct to have excellent thermal fatigue resistance, creep strength, and oxidation resistance.

3. Materials and Metallurgy

To withstand such extreme environments, turbine transition ducts are typically manufactured from nickel-based superalloys, such as:

• Inconel 625 / 718

• Hastelloy X

• Haynes 230

These materials offer:

• High-temperature strength

• Resistance to oxidation and hot corrosion

• Excellent weldability and formability

At Dawopu, strict material control is implemented, including chemical composition verification, grain structure inspection, and mechanical property testing to ensure reliability in high-temperature applications.

4. Manufacturing Process

The production of turbine transition ducts involves advanced manufacturing techniques:

🔹 Sheet Metal Fabrication and Welding

• Forming of complex curved geometries

• Precision welding (TIG, laser welding)

• Dimensional control during assembly

🔹 Precision Casting (for complex sections)

• Investment casting for intricate internal structures

• Control of internal defects such as porosity and shrinkage

🔹 Machining and Finishing

• CNC machining for critical interfaces

• Surface finishing for aerodynamic efficiency

🔹 Thermal Barrier Coating (TBC)

• Ceramic coatings applied to reduce metal temperature

• Improves durability and extends service life

Dawopu integrates all these processes with strict quality control to ensure consistent product performance.

5. Design Features

Modern turbine transition ducts are designed with several advanced features:

• Flexible seals to accommodate thermal expansion

• Cooling holes or film cooling structures to reduce surface temperature

• Aerodynamic shaping for optimized gas flow

• Segmented or modular construction for easier maintenance

These features help improve efficiency while reducing maintenance costs.

6. Quality Requirements

Due to its critical role, the transition duct must meet strict quality standards:

🔸 Dimensional Tolerance

• Typically within ±0.05 to ±0.2 mm for critical interfaces

• Ensures proper alignment with combustor and turbine

🔸 Surface Finish

• Flow path surfaces: Ra ≤ 1.6 μm

• External surfaces: Ra ≤ 3.2 μm

🔸 Non-Destructive Testing (NDT)

• Radiographic testing (RT)

• Dye penetrant inspection (PT)

• Ultrasonic testing (UT)

🔸 Mechanical Testing

• Tensile strength

• Creep resistance

• Fatigue performance

At Dawopu, every transition duct undergoes comprehensive inspection to ensure compliance with international standards and customer specifications.

7. Applications

Turbine transition ducts are widely used in:

• Gas turbine power plants (combined cycle, peaking units)

• Aero-derivative turbines

• Oil & gas compression systems

• Industrial process turbines

They are essential in equipment manufactured by leading OEMs such as GE, Siemens, and Mitsubishi.

8. Dawopu Advantages

As a professional manufacturer, Dawopu provides high-quality turbine transition ducts with the following advantages:

• Advanced manufacturing capabilities (casting, welding, machining)

• Strict quality control and inspection systems

• Competitive pricing with OEM-equivalent quality

• Customization based on drawings or samples

• Fast delivery and reliable global supply

Our products are designed to serve as cost-effective replacement parts while maintaining the same performance and durability as original components.

9. Conclusion

The turbine transition duct is a highly engineered component that plays a crucial role in the efficiency and reliability of gas turbine systems. Its ability to handle extreme temperatures, pressures, and mechanical stresses makes it one of the most demanding parts to manufacture.

With extensive experience in precision manufacturing and high-temperature components, Dawopu is committed to delivering reliable and high-performance turbine transition ducts to customers worldwide. Whether for replacement or OEM applications, Dawopu ensures quality, durability, and value in every product.
