NATIONAL 14-P- 220 Parts

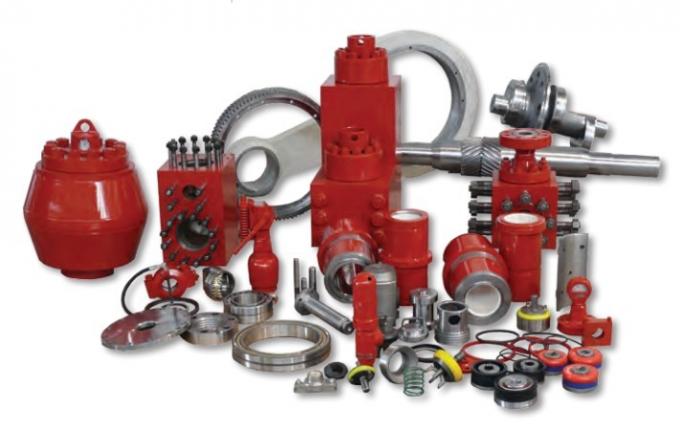

National 14P220 mud pump fluid end liner, zirconia liner, pistons, valves and seats, National 12P160, 10P130 mud pump

NATIONAL

14-P- 220



Item

PREMIUM

Part Number



Description

Qty per Pump
1P-1295240Discharge Module Studded, (incl. Items 2-10)3
2P-1295241Discharge Module, Only3
3P-6300320Nut, 2“ -8 Hvy. Hex18
4P-2408048Stud, 2“ -8UNC X22 7/8”18
5P-6300180Nut, 1 1/8“ Hvy. Hex18
6P-2408028Stud, 1 1/8“ X 6 3/8”, Discharge to Liner Bushing18
7P-6300281Nut, 1 3/4“ Hvy. Hex18
8P-2408033Stud, 1 3/4“ X 21 1/8”, Discharge to Suction18
9P-6300240Nut, 1 1/2 Hvy. Hex36
10P-2408027Stud, 1 1/2“ X 7 7/8” Top, Thread Ring36
11P-1295243Suction Module Studded, (incl. Items 12-14)3
12P-1295244Suction Module, Only3
13P-6300240Nut, 1 1/2 Hvy. Hex36
14P-2408049Stud, 1 1/2“ X 9 7/8” Top, Thread Ring36
15P-1295165Bushing, Liner3
16P-1295174Seal Retainer6
17P-1295172Valve Cover6
18NonScrew, Wedge Adjusting6
19NonNut, Wedge Adjusting6
20NonWasher, Wedge Adjusting Screw6
21P-1295176Ring, Threaded6
22NonWedge Assembly6
23P-1540163Gasket, Valve Cover6
24P-1292140Holder, Valve Guide Insert6
25P-1292141Insert, Valve Guide6
26P-6571620Pin Dowell6
27P-1295266Plate, Wear3
28P-1295252Connector, Discharge2
29P-7000-307-11Screw Hex Head16
30P-7619050Washer, Lock16
31P-1295253Adapter, Discharge Connector2
32P-2410031-440Packing, Rectangular2
33P-2410031-438Packing, Rectangular4
34P-1295167Clamp, Liner3
35P-7000491-10Screw 7/8 X 4 1/2“ Hex Hd. w/ Lock Washer6
36P-6309140Nut, 7/8“ Lock Type6
37P-1292169Pin, Liner Clamp3
38P-1295168Connector, Liner Clamp3
39P-2408015Stud 1 1/2“ x 7 1/2”16
40P-6300240Nut, 1 1/2“ Hvy. Hex16
