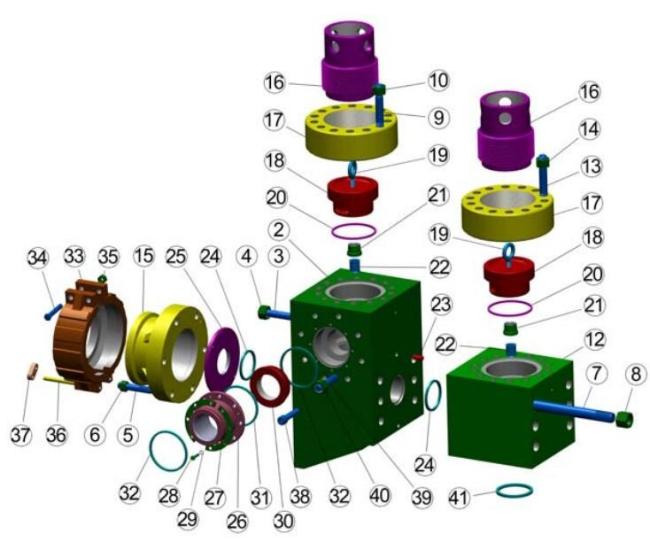

| SOUTHWEST 7500 P.S.I. | BOMCO F-1600 | 7 ½” X 12” |
| ITEM NO. |
PART NO. |
DESCRIPTION | QTY. REQ’D |
| 8404-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39,41,42) | ||
| 1 | 1376YXX | LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) | 3 |
| 2 | 2930-XX | LINER SEAL (ALSO AVAILABLE IN URETHANE PART# 2930-XXU) | 3 |
| 3 | 8490-28 | LINER WEARPLATE (WITH 568-443 O-RING) | 3 |
| 4 | 2988 | WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) | 6 |
| 5 | XX-BYY | PISTON REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR SIZE (XX) AND FOR TYPE (YY) | 3 |
| 6 | 568-225 | PISTON SEAL | 3 |
| 7 | 6278-25 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD NUT | 3 |
| 9 | 1290-2 | PISTON ROD CONNECTING STUD | 3 |
| 10 | 6284-1 | SUB ROD | 3 |
| 11 | 6274CWY | ROD CLAMP (WITH WATER JACKET) | 3 |
| 11A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 11B | 1286CWYFP | ROD CLAMP WATER SPRAY MANIFOLD WITH PIPE | 3 |
| 11C | 4020-29 | BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 6 |
| 12 | 1200G74 | PONY ROD | 3 |
| 13 | SEE PAGE | VALVE | 6 |
| 14 | SEE PAGE | VALVE INSERT | 6 |
| 15 | SEE PAGE | VALVE SPRING | 6 |
| 16 | SEE PAGE | VALVE SEAT | 6 |
| SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) | 1 | |
| 17 | 4488-25 | VALVE COVER FLANGE | 6 |
| 18 | 4588-25 | SCREW GLAND | 6 |
| 19 | 4690-25A | PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, 22, &23 | 6 |
| 20 | P115 | HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE PART # P115U) | 6 |
| 21 | 4788-25R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 22 | 4700I | VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART # 4700IU) | 6 |
| 23 | 4018-18 | VALVE GUIDE SCREW | 12 |
| 24 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) | 72 |
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 P.S.I. | BOMCO F-1600 | 7 ½” X 12” |
| ITEM NO. |
PART NO. |
DESCRIPTION | QTY. REQ’D |
| 25 | 4017-33 | POWER END STUD (WITH SW PART# HHN1500-8 1 1/2"-8 HEAVY HEX NUT) | 30 |
| 26 | 568-443 | WEARPLATE 'O' RING | 3 |
| 27 | 6490-25 | LINER RETAINER FLANGE | 3 |
| 28 | 4019-51 | LINER RETAINER CAPSCREW | 36 |
| 29 | 6590-25 | LINER RETAINER NUT | 3 |
| 30 | 4019-61 | SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4"-8 HEAVY HEX NUT) | 18 |
| 31 | 4018-19 | SUCTION MANIFOLD CAPSCREW | 18 |
| 32 | 8590-6 | SUCTION MANIFOLD | 1 |
| 33 | 568-442 | SUCTION MANIFOLD 'O' RING | 3 |
| 34 | 8404-26 | SUCTION MODULE | 3 |
| 35 | 8404-27 | DISCHARGE MODULE | 3 |
| 36 | 8488-5 | DOWEL PIN | 6 |
| 37 | 8376-25MOD | DISCHARGE MANIFOLD | 1 |
| 38 | 4019-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) | 18 |
| 39 | 2988 | DISCHARGE MANIFOLD SEAL | 3 |
| 40 | 6490-25P | LINER RETAINER PULLER | 1 |
| 41 | LW875 | LOCKWASHER 7/8 | 18 |
| 42 | LW500 | LOCKWASHER ½ | 12 |

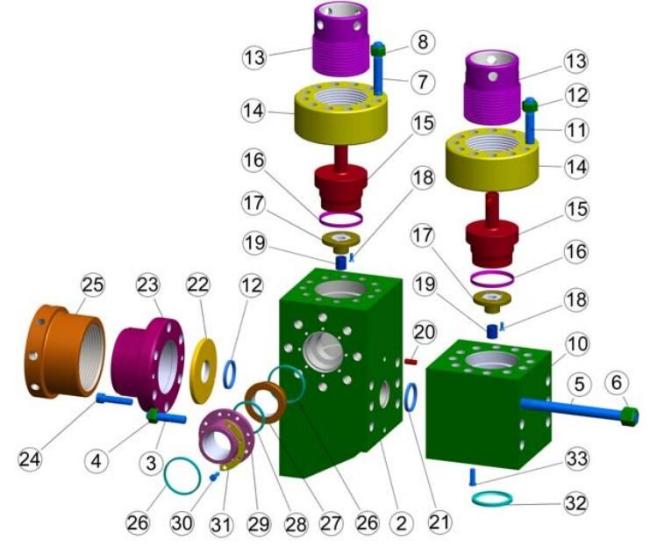

| MISSION "L" MODULE FOR NATIONAL12-P-160 | QTY PER PUMP | ||||
| FLUID END MODULE & ACCESSORIES | |||||
| ITEM # | OEM PART # | MISSION PART # | |||
| 8476-A | FEM12PASSYSW | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1-23) | 3 | ||
| 1 | 8476-2S | FEM12PSUCSW | MODULE, SUCTION STUDDED (INCLUDES ITEMS: 1,13,14,& 22) | 3 | |
| 2 | 8476-1D | FEM12PDISSW | MODULE, DISCHARGE STUDDED - (INCLUDES ITEMS: 2,3,4,5,6,7,8,13 & 14) | 3 | |
| 3 | 4018-17 | 12P160DSUCS | STUD, DISCHARGE TO SUCTION MODULE | 18 | |
| 4 | PEP55 | NUT, DISCHARGE TO SUCTION STUD | 18 | ||
| 5 | 4015-95 | NAT12P160PFS | STUD, POWER END | 30 | |
| 6 | 8P80TRSN | NUT, POWER END STUD | 30 | ||
| 7 | 8488-5 | PEP70 | PIN, DOWELL | 6 | |
| 8 | 4017-65 | PEP75 | CAPSCREW,LINER RETAINER SOCKET HEAD | 18 | |
| 9 | 8476-3 | PP6021260SW | PLATE, LINER WEAR | 3 | |
| 10 | 2988 | 1290344 | GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT MATLS) | 6 | |
| 11 | 6476 | 12PLASW | FLANGE, LINER RETAINER (LINER BUSHING) | 3 | |
| 12 | 6576 | 12PLANSW | NUT, LINER RETAINER | 3 | |
| 13 | 4015-54 | 12PTRSSW | STUD, THREADED RING | 72 | |
| 14 | 12P160TRSN | NUT, THREADED RING STUD | 72 | ||
| 15 | 4676-2A | 12PVCSW | PLUG, VALVE COVER (INCLUDES ITEMS 15,19,20,& 21) | 6 | |
| 16 | 4476 | 12PFLGSW | RING, THREADED (THREADED FLANGE) | 6 | |
| 17 | 4597 | 12PCAPSW | CAP, THREADED (SCREW GLAND) | 6 | |
| 18 | P-107 | 07207107 | SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 | |
| 19 | 4776R | 12PVGSWNS | GUIDE, VALVE (INCLUDES ITEMS 19,& 20) | 6 | |
| 20 | 4700-I | PZ789VGI | BUSHING, VALVE GUIDE | 6 | |
| 21 | 4016-98 | PEP73 | SCREW, VALVE GUIDE | 12 | |
| 22 | 4018-19 | 700048511 | CAPSCREW, SUCTION MANIFOLD | 24 | |
| 23 | AJO-419R | 1540851 | GASKET, SUCTION MANIFOLD | 3 | |
| 24 | 8376-2 | NAT12PDSMA | ADAPTER, DISCHARGE | 2 | |
| 25 | 2976-2 | 2410031437 | SEAL, DISCHARGE ADAPTER | 4 | |
| 26 | 8376-1 | NAT12PDSMC | CONNECTOR, DISCHARGE | 2 | |
| 27 | 2976-1 | 2410031433 | SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER | 2 | |
| 28 | 4018-18 | 700030711 | CAPSCREW, DISCHARGE CONNECTOR (W /LOCKWASHER) | 16 | |
| 29 | 8376-3 | 1292175 | RING, BACKUP (DISCHARGE CONNECTOR) | 4 | |
| 30 | 4018-39 | 7006685 | CAPSCREW, SOCKET HEAD | 16 | |
| 07924540 | KIT, MODULE SEAL: (KIT INCLUDES SUCTION MANIFOLD GASKET, TWO VALVE COVER GASKETS, SUCTION TO DISCHARGE MODULE GASKET, TWO DISCHARGE ADAPTING GASKETS, TWO DISCHARGE CONNECTING GASKETS, WEAR PLATE GASKET) | 3 | |||
| MISSION "L" FOR OILWELL A & HD STYLE PUMPS (7500 PSI WORKING PRESSURE) | QTY PER PUMP | ||
| FLUID END MODULE & ACCESSORIES (INCLUDES DISCHARGE MANIFOLD) | |||
| ITEM # | MISSION PART # | DESCRIPTION | |
| 80702030 | FLUID END ASSEMBLY COMPLETE (INCLUDES ITEMS 1-12,17,18,21-35) ENOUGH FOR 1 PUMP | 1 | |
| 1 | 80702000 | MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 1,9,22,23,25,33,34,& 35) | 3 |
| 2 | 80702001 | MODULE, SUCTION STUDDED (INCLUDES ITEMS 2,3,22,23,&19) | 3 |
| 3 | 80702002 | STUD, (DISCHARGE TO SUCTION MODULE) | 24 |
| 4 | 76510327 | NUT, HEAVY HEX | 24 |
| 5 | 80702003 | THREADED RING | 6 |
| 6 | 80702004 | THREADED CAP | 6 |
| 7 | 80702005 | VALVE COVER (INCLUDES 11,12,& 17) | 6 |
| 8 | 80702006 | MANIFOLD, DISCHARGE (7500 PSI WORKING PRESSURE) | 1 |
| 9 | IDT800DMS | STUD, DISCHARGE MANIFOLD | 12 |
| 10 | IDT800TRSN | NUT,HEX HEAVY | 12 |
| 11 | 80702007 | BUSHING, VALVE GUIDE | 6 |
| 12 | 80702008 | GUIDE, VALVE | 6 |
| 13 | 9700359 | VALVE COMPLETE (COMPLETE WITH INSERT # 15) | 6 |
| 14 | 055413371 | SPRING, VALVE | 6 |
| 15 | PFO6IWL | INSERT, VALVE (WHITE LIGHTNING) | 6 |
| 16 | 9702547 | SEAT, VALVE | 6 |
| 17 | PEP73 | CAPSCREW,VALVE GUIDE | 12 |
| 18 | OWA17LLNSW | NUT, LINER LOCK | 3 |
| 19 | 07326XXX | LINER, CERAMIC | 3 |
| 20 | 1502XXX | PISTON, GREEN DUO | 3 |
| 21 | PP602850 | WEARPLATE | 3 |
| 22 | PZ789LCSN | NUT,HEAVY HEX FOR THREADED RING STUD | 72 |
| 23 | 80702009 | STUD, THREADED RING | 72 |
| 24 | OWA17LRPLATESW | PLATE, LINER RETAINER | 3 |
| 25 | PEP70 | PIN, DOWELL | 6 |
| 26 | 80702010 | SEAL, DISCHARGE TO SUCTION MODULE | 3 |
| 27 | 07207129 | SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 28 | 07916742 | SEAL, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 3 |
| 29 | 75634382 | CAPSCREW, SUCTION MANIFOLD | 24 |
| 30 | 99609235 | SEAL, DISCHARGE MANIFOLD TO MODULE | 3 |
| 31 | 10300201 | GASKET, SUCTION MANIFOLD TO SUCTION MODULE | 3 |
| 32 | PEP90 | SETSCREW, LINER LOCK NUT | 3 |
| 33 | OWA17PFFSW | STUD, POWER FRAME | 12 |
| 34 | PEP55 | NUT, POWER FRAME STUD | 12 |
| 35 | PEP68 | CAPSCREW, SOCKET HEAD FOR LINER RETAINER PLATE | 24 |
| 36 | REF | GASKET, LINER | 3 |
| MISSION "L" MODULE FOR NATIONAL 14-P-220 (7500 PSI WORKING PRESSURE) | QTY PER PUMP | ||
| FLUID END MODULE & ACCESSORIES (REQUIRES DISCHARGE MANIFOLD) | |||
| ITEM # | MISSION PART # | DESCRIPTION | |
| 80700031 | FLUID END ASSEMBLY 14P220 (7500 PSI) | 1 | |
| 1 | 80700012 | DISCHARGE MODULE STUDDED (INCL ITEMS 2-10) | 3 |
| 2 | 80700000 | MODULE,DISCHARGE- 14-P-220 7500PSI | 3 |
| 3 | 80700014 | STUD, 1-1/2-6 X12 TAPER LOK TOP | 84 |
| 4 | 2408027 | STUD,1-1/2 X 7-7/8 TOP TAPER LOK | 30 |
| 5 | 2408047 | STUD,1-1/4 X 7 TOP TAPER LOK | 18 |
| 6 | 80700015 | STUD, 2 X 26-1/2 DISCHARGE/SUCTION | 24 |
| 7 | 6300200 | NUT,HEX HEAVY 1-1/4-7UNC | 18 |
| 8 | 6300240 | NUT, HEX HEAVY 1-1/2-6UNC 2H | 126 |
| 9 | 6300320 | NUT,HEX HEAVY 2" 8UN-2A | 24 |
| 10 | 80700016 | NUT,HEX HEAVY 2" 8UN-2A | 12 |
| 11 | 80700013 | SUCTION MODULE STUDDED (INCL ITEMS 12,3,8) | 3 |
| 12 | 80700001 | SUCTION MODULE | 3 |
| 13 | 80700002 | DISCHARGE MANIFOLD | 1 |
| 14 | 1295317 | SUCTION MANIFOLD | 1 |
| 15 | 700048511 | SCREW,HEX HD CAP 7/8 X 3 | 24 |
| 16 | 1540021 | SEAL,SUCTION | 3 |
| 17 | 80700003 | VALVE COVER | 6 |
| 18 | 80700004 | THREADED RING | 6 |
| 19 | 80700005 | THREADED CAP | 6 |
| 20 | 88500223 | WEAR PLATE OUTER | 3 |
| 21 | 88500222 | WEAR PLATE , GREASE | 3 |
| 22 | 80700006 | SHIM PACK | 3 |
| 23 | 700039511 | SCREW,HEX HD CAP 5/8 X 1-1/2 | 18 |
| 24 | 9700369 | VALVE , WHITE LIGHTNING SERIES 8 | 6 |
| 25 | 9702653 | SEAT , HD8-S07 | 6 |
| 26 | 9700372 | INSERT,VALVE WL #8 series (INCLUDED IN ITEM 24) | 6 |
| 27 | 55413256 | SPRING, 5710-101 | 6 |
| 31 | 80700011 | GUIDE,VALVE-DISCHARGE | 3 |
| 32 | 80700010 | GUIDE,VALVE -SUCTION | 3 |
| 33 | PZ789VGI | INSERT,VALVE GUIDE | 6 |
| 34 | 2405086 | SCREW,DR HD HEX HD CAP 1/2 X 1-1/2 | 24 |
| 35 | 6511416 | PIN, DOWELL STD HDN & GRD 7/8 | 3 |
| 36 | 1295266 | PLATE,WEAR 14-P-220 | 3 |
| 37 | 07207109 | GASKET, PLUG SEAL L STYLE - RUBBER (SEE DATASHEET FOR ALTERNATE MATLS) | 6 |
| 38 | 1295257 | SEAL,SUCTION MODULE 14-P-220 | 6 |
| 39 | 99607344 | SEAL,DISCHARGE MANIFOLD | 3 |
| MISSION "L" FOR NATIONAL 12-P-160 (7500 PSI WORKING PRESSURE) | QTY PER PUMP | ||
| FLUID END MODULE & ACCESSORIES (INCLUDING DISCHARGE MANIFOLD) | |||
| ITEM # | MISSION PART # | DESCRIPTION | |
| 80704032 | FLUID END ASSEMBLY COMPLETE INCLUDES ITEMS (1-27) ENOUGH FOR 1 PUMP | 1 | |
| 1 | 80704000 | MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 1,9,10,13,14,18,19,20,& 27) | 3 |
| 2 | 80704001 | MODULE, SUCTION STUDDED (INCLUDES ITEMS 2,3,4,18,&19) | 3 |
| 3 | 80704002 | STUD, (DISCHARGE TO SUCTION MODULE) | 24 |
| 4 | PEP55 | NUT, HEAVY HEX | 24 |
| 5 | 80704003 | THREADED RING | 6 |
| 6 | 80704004 | THREADED CAP | 6 |
| 7 | 80704005 | VALVE COVER (INCLUDES 11,12,& 17) | 6 |
| 8 | 80704006 | DISCHARGE MANIFOLD (7500 PSI WORKING PRESSURE) | 1 |
| 9 | 80702011 | STUD, DISCHARGE MANIFOLD | 12 |
| 10 | IDT800TRSN | NUT,HEX HEAVY | 12 |
| 11 | PZ789VGI | BUSHING, VALVE GUIDE | 6 |
| 12 | 12PVGASW | GUIDE, VALVE | 6 |
| 13 | 8P80TRSN | NUT, POWER FRAME STUD | 30 |
| 14 | PEP75 | CAPSCREW, LINER RETAINER | 18 |
| 15 | 12PLASW | RETAINER, LINER FLANGE | 3 |
| 16 | 12PLANSW | NUT, LINER RETAINER | 3 |
| 17 | 7007303 | SCREW, VALVE GUIDE | 12 |
| 18 | 6300240 | NUT, HEAVY HEX FOR THREADED RING | 72 |
| 19 | 80700014 | STUD, THREADED RING | 72 |
| 20 | PEP70 | PIN, DOWELL | 6 |
| 21 | 1290344 | SEAL, DISCH TO SUC & WEARPLATE - RUBBER (SEE DATASHEET FOR ALT MATLS) | 6 |
| 22 | 07207129 | SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 3 |
| 23 | 99609235 | SEAL, DISCHARGE MANIFOLD | 3 |
| 24 | 1540851 | SEAL, SUCTION MANIFOLD | 3 |
| 25 | 700048511 | CAPSCREW, SUCTION MANIFOLD | 3 |
| 26 | PP6021260SW | WEARPLATE | 3 |
| 27 | NAT12P160PFS | STUD, POWER FRAME | 30 |
| MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 | QTY PER PUMP | ||||
| FLUID END MODULE & ACCESSORIES | |||||
| ITEM # | OEM PART # | MISSION PART # | |||
| FEM12PASSYSWNS | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1-23) | 3 | |||
| 1 | 8476-6S | FEM12PSUCSWNS | MODULE, SUCTION STUDDED (INCLUDES ITEMS: 1,13,14,& 22) | 3 | |
| 2 | 8476-5D | FEM12PDISSWNS | MODULE, DISCHARGE STUDDED - (INCLUDES ITEMS: 2,3,4,5,6,7,8,13 & 14) | 3 | |
| 3 | 4018-17 | 12P160DSUCS | STUD, DISCHARGE TO SUCTION MODULE | 18 | |
| 4 | PEP55 | NUT, DISCHARGE TO SUCTION STUD | 18 | ||
| 5 | 4015-95 | NAT12P160PFS | STUD, POWER END | 30 | |
| 6 | 8P80TRSN | NUT, POWER END STUD | 30 | ||
| 7 | 8488-5 | PEP70 | PIN, DOWELL | 6 | |
| 8 | 4017-65 | PEP75 | CAPSCREW,LINER RETAINER SOCKET HEAD | 18 | |
| 9 | 8476-3 | PP6021260SW | PLATE, LINER WEAR | 3 | |
| 10 | 2988 | 1290344 | GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT MATLS) | 6 | |
| 11 | 6476 | 12PLASW | FLANGE, LINER RETAINER (LINER BUSHING) | 3 | |
| 12 | 6576 | 12PLANSW | NUT, LINER RETAINER | 3 | |
| 13 | 4015-54 | 12PTRSSW | STUD, THREADED RING | 72 | |
| 14 | 12P160TRSN | NUT, THREADED RING STUD | 72 | ||
| 15 | 4676-6A | 12PVCASSYSWNS | PLUG, VALVE COVER (INCLUDES ITEMS 15,19,20,& 21) | 6 | |
| 16 | 4476 | 12PFLGSW | RING, THREADED (THREADED FLANGE) | 6 | |
| 17 | 4597 | 12PCAPSW | CAP, THREADED (SCREW GLAND) | 6 | |
| 18 | P-119 | 07207119 | SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 | |
| 19 | 4776R | 12PVGASWNS | ASSEMBLY, VALVE GUIDE(INCLUDES ITEMS 19,& 20) | 6 | |
| 20 | 4700-I | PZ789VGI | BUSHING, VALVE GUIDE | 6 | |
| 21 | 4016-98 | PEP73 | SCREW, VALVE GUIDE | 12 | |
| 22 | 4018-19 | 700048511 | CAPSCREW, SUCTION MANIFOLD | 24 | |
| 23 | AJO-419R | 1540851 | GASKET, SUCTION MANIFOLD | 3 | |
| 24 | 8376-2 | NAT12PDSMA | ADAPTER, DISCHARGE | 2 | |
| 25 | 2976-2 | 2410031437 | SEAL, DISCHARGE ADAPTER | 4 | |
| 26 | 8376-1 | NAT12PDSMC | CONNECTOR, DISCHARGE | 2 | |
| 27 | 2976-1 | 2410031433 | SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER | 2 | |
| 28 | 4018-18 | 700030711 | CAPSCREW, DISCHARGE CONNECTOR (W /LOCKWASHER) | 16 | |
| 29 | 8376-3 | 1292175 | RING, BACKUP (DISCHARGE CONNECTOR) | 4 | |
| 30 | 4018-39 | 7006685 | CAPSCREW, SOCKET HEAD 1 1/2" X 3" | 16 | |
| 07924542 | KIT, MODULE SEAL: (KIT INCLUDES SUCTION MANIFOLD GASKET, TWO VALVE COVER GASKETS, SUCTION TO DISCHARGE MODULE GASKET, TWO DISCHARGE ADAPTING GASKETS, TWO DISCHARGE CONNECTING GASKETS, WEAR PLATE GASKET) | 3 | |||
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: MP-5, MP-8, MP-10, MP-13, MP-16, E-447, E-2200, E1600
Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800,14T2200
Romania: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

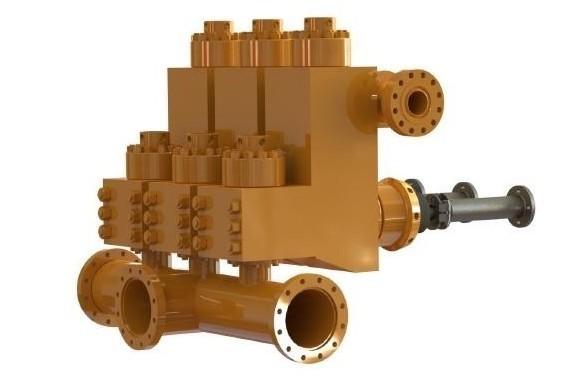

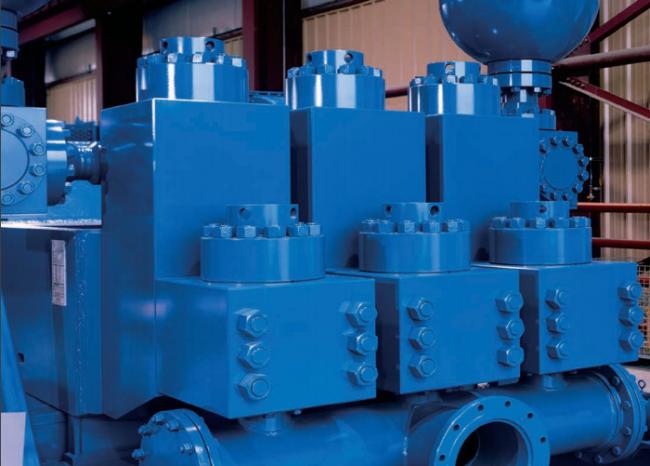

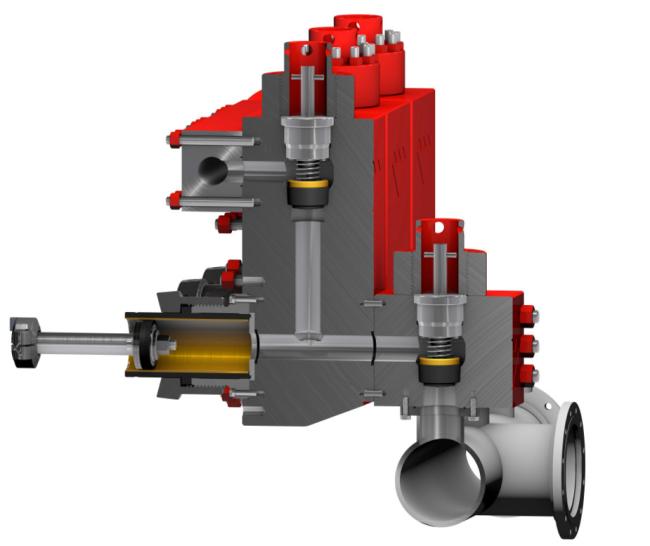

Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener

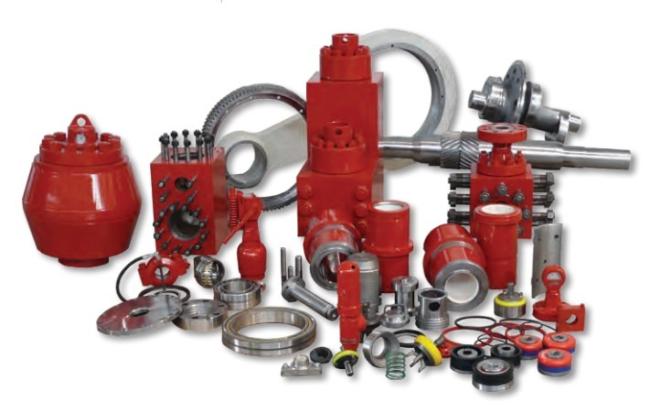

Popular Mud Pump Spare Parts
Mud Pump Manufactures and Models include:
Brewster Mud Pumps
B-550 | B-750 | B-1000 | 1100T | B-1300
Continental Emsco Mud Pumps
FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD
Continental Emsco Mud Pumps
GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH
Continental Emsco Mud Pumps
PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL
Ellis Williams (Luko) Mud Pumps
WW-440 | 14W-400 | 15W-600 | 9W-1000
Gaso Mud Pump
1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652
Gardner Denver Mud Pumps
FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL
Ideco Mud Pumps
MM-200 | MM-300 | MM-500 | MM-500F | MM-550
Ideco Mud Pumps
MM-550F | MM-700 | MM-700F | T-500
Ideco Mud Pumps
T-800 | T-1000 | T-1300 | T-1600
National Mud Pumps
C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000
National Mud Pumps
K-280 | K-380 | K-500 | K-500A | K-700A
National Mud Pumps
7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160
Oilwell Mud Pumps
6P-HD | 610-P | 212-P | 214-P | 218-P
Oilwell Mud Pumps
350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT
Oilwell Mud Pumps
A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT
OPI Mud Pumps
350-D | 700-HDL | 1000-HDL
Wheatley Mud Pumps
1036 | 6070 | 7024 | 7036
Wilson Mud Pumps
600 | 900
Contact:Mr Liu
Mobile:15869109368
Tel:86-571-89967020
E-mail:info@dawopu.com
Address:No151 ,ZiDingXiang Rd, Hangzhou. Zhejiang Province, China
