107. 29. 110.00 FLUID END ASSEMBLY (附图八)
| 序号 | 名称 | Description | 代 | 号 Part No. | 数量 Qty | |
| No. | F-1600 | F-1300 | ||||
| 35 | 麟簧 | SPRING, VALVE | 055413397 | 055413397 | 6 | |
| 36 | 全贓双魏柱(带嗥母) | STUD WITH NUTS | 7601-1260-47 | 7601-1260-47 | 16 | |
| 37 | 椭圆形金属环垫 | SEAL, RING JOINT | 7602-0661-11 | 7602-0661-11 | 2 | |
| 38 | 密封圈 | SEAL, VALVE POT COVER | 107.29.110.18 | 107.29.110.18 | 3 | |
| 39 | 密封圈 | SEAL, HEAD | 107.29.110.19 | 107.29.110.19 | 3 | |
| 40 | 安舗接管 | PIPE, CONECTOR | LS1292Z. 01.40.00 | LS1292Z. 01.40.00 | 1 | |
| 41 | 啓切式安全阀 | SHEAR RELIEF VALVE | AQF-IIA | AQF-IIA | 1 | |
| 42 | 密封圈 | SEAL | 107.05C.03 | 107.05C.03 | 1 | |
| 43 | 自锁姗 1 1/2"-8UN | NUT, HEAVY LOCK | LS7601-0720-58 | LS7601-0720-58 | 3 | |
| 44 | 自锁婀M39X3 | NUT, HEAVY LOCK | 107.35.124.00 | 107.35.124.00 | 3 | |
| 45 | 0形密封圈7.975" | O-RING RUBBER | 7602-1600-44 | 7602-1600-44 | 3 | |
| 46 | 钮套挡圈 | RING LINER LOCK | 107.29.110.20 | 107.29.110.20 | 3 | |
| 47 | 阀总成(导架式) | VALVE AND SEAT | 107.11.140.00 | 107.11.140.00 | 6 | |
| 48 | 阙总成(飜式) | VALVE AND SEAT | 107.11.144.00 | 107.11.144.00 | 6 | |
| 49 | 阀賴 | SPRING,VALVE | 107.11.110.16 | 107.11.110.16 | 6 | |
| 50 | 单头管丝1/2”x13” | PIPE NIPPLE | 107.29.110.21 | 107.29.110.21 | 3 | |
| 51 | 拦水板 | LINER END COVER | 107.29.110.22 | 107.29.110.22 | 3 | |
| 52 | 活塞杆卡麒成 | CLAMP PI SION ROD | 107.29.118.00 | 107.29.118.00 | 3 | |
| 53 | 活塞杆(英制) | ROD, PISTON | 107.29.110.23 | 107.29.110.23 | 3 | |
| 54 | 活塞杆(公制) | ROD, PISTON | 107.29.110.24 | 107.29.110.24 | 3 | |
| 55 | 缸套 0)5.5"(6139.7) | LINER | 107.35.110.30 | 107.35.110.30 | 3 | |
| 55 | 缸套 06” (6152.40) | LINER | 107.35.110.31 | 107.35.110.31 | 3 | |
| 序号 | 名称 | Description | 代 | 号 Part No. | 数量 Qty | |
| No. | F-1600 | F-1300 | ||||
| 55 | 缸套 66.25" (558.75) | LINER | 107.35.110.32 | 107.35.110.32 | 3 | |
| 55 | 缸套 06.75" (6171.45) | LINER | 107.35.110.33 | 107.35.110.33 | 3 | |
| 55 | 缸套 6 7" (6177.80) | LINER | 107.35.110.34 | 107.35.110.34 | 3 | |
| 55 | 缸套 67.5" (6190.5) | LINER | 107.35.110.35 | 107.35.110.35 | 3 | |
| 56 | 缸套0140 | LINER | 107.35.110.22 | 107.35.110.22 | 3 | |
| 56 | 缸套0150 | LINER | 107.35.110.23 | 107.35.110.23 | 3 | |
| 56 | 缸套0160 | LINER | 107.35.110.24 | 107.35.110.24 | 3 | |
| 56 | 缸套0170 | LINER | 107.35.110.25 | 107.35.110.25 | 3 | |
| 56 | 缸套0180 | LINER | 107.35.110.26 | 107.35.110.26 | 3 | |
| 56 | 缸套0190 | LINER | 107.35.110.27 | 107.35.110.27 | 3 | |
| 57 | 活塞誠05.5"伽39.70") | PISTON | 107.114.00 | 107.114.00 | 3 | |
| 57 | 活蹒呻邮2.4") | PISTON | 107.116.00 | 107.116.00 | 3 | |
| 57 | 醫誡 W25"(5>158J5") | PISTON | 107.117.00 | 107.117.00 | 3 | |
| 57 | 活塞誠86.5"伽65」0") | PISTON | 107.118.00 | 107.118.00 | 3 | |
| 57 | 證誠師75"何17L45") | PISTON | 107.119.00 | 107.119.00 | 3 | |
| 57 | 活塞誠岫蚓7.78") | PISTON | 107.120.00 | 107.120.00 | 3 | |
| 57 | 醫觥叽5"伽90.5") | PISTON | 107.122.00 | 107.122.00 | 3 | |
| 58 | 活塞总成0140 | PISTON | 107.06.64.00 | 107.06.64.00 | 3 | |
| 58 | 活塞总成0150 | PISTON | 107.06.66.00 | 107.06.66.00 | 3 | |
| 58 | 活塞总成0160 | PISTON | 107.06.68.00 | 107.06.68.00 | 3 | |
| 58 | 活塞总成财70 | PISTON | 107.06.70.00 | 107.06.70.00 | 3 | |
| 58 | 活塞总成0180 | PISTON | 107.11.130.00 | 107.11.130.00 | 3 | |
| 58 | 活塞总成0190 | PISTON | 107.11.135.00 | 107.11.135.00 | 3 | |
| 序号 | 名称 | Description | 代号 Part No. | 数量 Qty | 序号 | 名称 | Description | 代号 Part No. | 数量 Qty |
| No. | No. | ||||||||
| 1 | 活塞杆卡腳 | CLAMP PI SION ROD | 107.29.118.00 | 3 | 24 | 嗥检 7/8"-9UNCx2.5"(63) | SCREW | LNB/AC1-1-07 | 18 |
| 2 | 喷淋软管 | HOSE ASSEMBLY | 107.29.116.00 | 3 | 25 | 吸入管 | MANIFOLD, SUCTION | 107.29.112.00 | 1 |
| 3 | 挡水板 | BAFFLE DISK | 107.29.110.22 | 3 | 26 | 吸入管法兰 | FLANGE, SUCTION | 107.29.110.03 | 1 |
| 4 | 单头管丝1/2”x13” | PIPE NIPPLE | 107.29.110.21 | 3 | 27 | 0 型潮 13.475° | O-RING RUBBER | 7602-1600-52 | 3 |
| 5 | 活塞杆(公制) | ROD, PISTON | 107.29.110.24 | 3 | 28 | 骡栓 1"-8UNCx5”(127) | BOLT | LNB/AC1-1-05 | 36 |
| 6 | 活塞杆(英制) | ROD, PISTON | 107.29.110.23 | 3 | 29 | A醐 1"-8UNC | NUT | LNB/AC2-2-05 | 36 |
| 7 | 排岀管 | DISCHARGE MANIFOLD | 107.36.110.01 | 1 | 30 | 盲板 | FLANGE, BLIND | 107.29.110.04 | 1 |
| 8 | 0型密封圈3.725" | O-RING RUBBER | 7602-1600-25 | 3 | 31 | 定位销1"x2” | DOWEL PIN | LNB/AC4-2-05 | 12 |
| 9 | 法兰 | RING,CYLINDER THREAD | 107.36.110.02 | 6 | 32 | 密封垫 | GASKET | 107.35.110.09 | 6 |
| 10 | 压盖 | THREAD RETAINER | 107.36.110.03 | 6 | 33 | 排出睥检装配总成 | STUDDED FLUID END (DICHARGE) | 107.36.122.00 | 3 |
| 11 | 阀盖 | VALVE POT COVER FLUID END | 107.35.110.06 | 6 | 34 | 齣 1 1/2-6UNRCx5"(127)-2A | SCREW | LNB/AC1-4-09 | 24 |
| 12 | 密封圈 | SEAL | 107.29.110.18 | 6 | 35 | 耐磨垫 | WEAR PLATE | 107.36.110.04 | 3 |
| 13 | 定位板 | RETAINER VALVE GUIDE | LS6323-0093-00 | 6 | 36 | 密封垫 | GASKET | 107.29.110.17 | 3 |
| 14 | 螺栓 3/8"T6UNCx3/4”(19) | SCREW | LNB/AC1-2-05 | 24 | 37 | 自锁螺母1 1/2 “-8UN | HEAVY HEX LOCK NUT | LS7601-0720-58 | 3 |
| 15 | 钢丝们.6 L=2m | WIRE | 107.36.110.06 | 1 | 38 | 90.内外丝弯头1/2" | ELBOW | 7601-2570-89 | 3 |
| 16 | 闹导向 | VALVE GUIDE | 107.35.110.07 | 6 | 39 | £1套座 | SPACER, MODULE | 107.36.110.05 | 3 |
| 17 | 导向套 | BUSHING VALVE GUIDE | 107.35.110.08 | 6 | 40 | 缸套压环 | LOCK, LINER | 107.29.110.15 | 3 |
| 18 | 阀賴 | SPRING, VALVE | LS55413421 | 6 | 41 | 0型密封圈7.975” | O-RING RUBBER | 7602-1600-44 | 3 |
| 19 | 阀总成(飜式)API 7# | VALVE AND SEAT | 060155041 | 6 | 42 | 任套挡圈 | RING LINER LOCK | 107.29.110.20 | 3 |
| 20 | 闹座(带筋式)API 7# | VALVE SEAT | 061101507 | 6 | 43 | 自鼬母1139x3 | NUT,HEAVY LOCK | 107.35.124.00 | 3 |
| 21 | 吊环螺钉3/4z,-10UNC | LIFTING SCREW | LNB/AC1-12-03 | 6 | 44 | 支架总成 | SUPPORT ASSEMBLY | 107.35.124.00 | 2 |
| 22 | 吸入睥栓装配总成 | STUDDED FLUID END (SUCTION) | 107.36.120.00 | 3 | 45 | 全螺纹双头嗥柱(带嗥母) | STUD WITH NUTS | 7601-1260-47 | 16 |
| 23 | 0形密封圈7.225” | O-RING RUBBER | 7602-1600-61 | 3 | 46 | 内夕曜丝 DN 25x15-NPTxNPT | BUSHING | 101-0401-03-19-008 | 3 |
| LEWCO-W2215 Cameron Mud Pump | ||||
| Item | Part Number | Description | Qty. | Unit |
| 1 | ES331 | LINER WASH PUMP PACKING | 18 | Ea |
| 2 | EG199 | API ring gasket (BX-169SS) | 27 | Ea |
| 3 | EG197 | API ring gasket (BX-152SS) | 3 | Ea |
| 4 | EG163 | suction manifold gasket | 15 | Ea |
| 5 | B105281 | suction dampener/desurger | 3 | Ea |
| 6 | 108-0609 | stroke counter | 12 | Ea |
| 7 | 108-1054 | heat exchanger-liner wash | 3 | Ea |
| 8 | 108-1055 | heat exchanger-lube oil | 3 | Ea |
| 9 | 108-0764 | low presure switch | 3 | Ea |
| 10 | ES452 | low presure switch | 3 | Ea |
| 11 | 108-1324 | low presure switch | 3 | Ea |
| 12 | 108-1225 | v-belt | 6 | Ea |
| 13 | EG195 | mud pressure gauge | 3 | Ea |
| 14 | EG170 | crank case cover gasket | 888 | inch |
| 15 | A162209 | inspection cover gasket | 3 | Ea |
| 16 | A164103 | main bearing cover gasket | 6 | Ea |
| 17 | C164404 | cross head cover gasket | 6 | Ea |
| 18 | A164185 | inspection cover gasket (large) | 3 | Ea |
| 19 | 108-1095 | breather cap | 3 | Ea |
| 20 | A164191 | stroke counter bracket gasket | 3 | Ea |
| 21 | B164202 | eccentric bearing | 9 | Ea |
| 22 | EB119 | main (spherical roller) bearing | 6 | Ea |
| 23 | B164206 | main bearing shim set | 6 | Ea |
| 24 | A167244 | eccentric bearing shims | 6 | Ea |
| 25 | EB120 | pinion (cylinderical roller) bearing | 6 | Ea |
| 26 | ES194 | oil seal | 6 | Ea |
| 27 | A164505 | pinion bearing carrier gasket | 6 | Ea |
| 28 | B164402 | wrist pin bearing | 6 | Ea |
| 29 | C164323 | piston rod clamp | 18 | Ea |
| 30 | B164407 | baffle disc | 9 | Ea |
| 31 | A164453 | crosshead shim set | 9 | Ea |
| 32 | B164425 | diaphragm plate gasket | 9 | Ea |
| 33 | ES211 | stuffing box seal | 36 | Ea |
| 34 | A164415 | stuffing box gasket | 9 | Ea |
| 35 | E0175 | o-ring ( 2/343) | 9 | Ea |
| 36 | E0301 | o-ring ( 2/442) | 9 | Ea |
| 37 | A164705 | valve cover seal | 18 | Ea |
| 38 | A167708 | valve guide bushing | 36 | Ea |
| 39 | A167702 | wear plate seal | 18 | Ea |
| 40 | 816406 | wear plate seal | 9 | Ea |
| 41 | EV116 | valve spring | 36 | Ea |
| 42 | EV190 | valve seat | 36 | Ea |
| 43 | EV178 | valve | 36 | Ea |
| 44 | EL238 | liner (5") | 36 | Ea |
| 45 | EL220 | liner (5 1/2") | 36 | Ea |
| 46 | EL221 | liner (6") | 36 | Ea |
| 47 | EL222 | liner (6 1/2") | 36 | Ea |
| 48 | EL223 | liner (7") | 36 | Ea |
| 49 | EL224 | liner (7 1/2") | 36 | Ea |
| 50 | EL240 | liner (8") | 36 | Ea |
| 51 | EP159 | piston (5") | 36 | Ea |
| 52 | EP160 | piston (5 1/2") | 36 | Ea |
| 53 | EP117 | piston (6") | 36 | Ea |
| 54 | EP118 | piston (6 1/2") | 36 | Ea |
| 55 | EP150 | piston (7") | 36 | Ea |
| 56 | EP151 | piston (7 1/2") | 36 | Ea |
| 57 | EP152 | piston (8") | 36 | Ea |
| 58 | EP165 | piston (5") | 36 | Ea |
| 59 | EP114 | piston rubber(5 1/2") | 36 | Ea |
| 60 | EP115 | piston rubber (6") | 36 | Ea |
| 61 | EP116 | piston rubber (6 1/2") | 36 | Ea |
| 62 | EP147 | piston rubber (7") | 36 | Ea |
| 63 | EP148 | piston rubber(7 1/2") | 36 | Ea |
| 64 | EP149 | piston rubber (8") | 12 | Ea |
| 65 | EG132 | liner gasket (5") | 36 | Ea |
| 66 | EG138 | liner gasket (5 1/2") | 12 | Ea |
| 67 | EG139 | liner gasket(6") | 36 | Ea |
| 68 | EG140 | liner gasket(6 1/2") | 36 | Ea |
| 69 | EG136 | liner gasket(7") | 36 | Ea |
| 70 | EG142 | liner gasket (7 1/2") | 36 | Ea |
| 71 | EG144 | liner gasket (8") | 12 | Ea |
| 72 | EP194 | lube oil pump | 3 | Ea |
| 73 | 108-0054 | relief valve, 15 psi | 3 | Ea |
| 74 | 108-1088 | relief valve, 65 psi | 3 | Ea |
| 75 | 108-0135 | check valve | 3 | Ea |
| 76 | 108-1257 | flow switch | 6 | Ea |
| 77 | EG105 | pressure gauge, 0-60 psi | 6 | Ea |
| 78 | EG145 | pressure gauge | 6 | Ea |
| 79 | EV215 | charging valve | 6 | Ea |
| 80 | ES175 | stud 2.25 8UN 8.50 B7 | 36 | Ea |
| 81 | EM132 | heavy hex nut 8UN A194-2H | 36 | Ea |
| 82 | 002-1666 | hex bolt 1.000 8NC 2.00 G8 | 3 | Ea |
| 83 | 002-1544 | lock washer 1.000" | 3 | Ea |
| 84 | 108-0620 | stabilizer plate L-2010 | 3 | Ea |
| 85 | 108-0619 | stabilizer L-20 | 3 | Ea |
| 86 | EN137 | havy hex nut 1.125 7NC A194-2H | 24 | Ea |
| 87 | EC181 | bottom flange cap screw | 24 | Ea |
| 88 | 108-0656 | seal 429 BUNA 70 | 3 | Ea |
| 89 | ES174 | stud 1.125 7NC 6.5 B7 | 24 | Ea |
| 90 | EO190 | charging valve o-ring | 6 | Ea |
| 91 | 108-0065 | ring gasket BX-155S | 3 | Ea |
| 92 | B310066 | charging valve hose assembly | 3 | Ea |
| 93 | 108-0618 | buna-N bladder ( standard) | 6 | Ea |
| 94 | 108-1194 | hydrogenated nitrile bladder (high temperature mud) | 6 | Ea |
| 95 | 108-1195 | Urthane bladder ( oil based mud) | 6 | Ea |

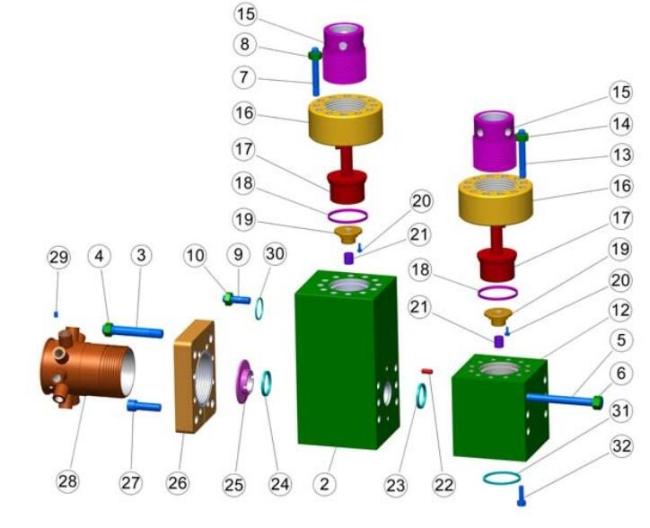

Item | P Part Number |
Description | Qty per Pump |
| 1 | P-1292240 | Discharge Module Studded, (incl. Items 2-10) | 3 |
| 2 | P-1292241 | Discharge Module, Only | 3 |
| 3 | P-6300220 | Nut, 1 3/8“ Hvy. Hex | 24 |
| 4 | P-2408029 | Stud, 1 3/8“ X 6 3/4”, Discharge to Frame | 24 |
| 5 | P-6300180 | Nut, 1 1/8“ Hvy. Hex | 18 |
| 6 | P-2408028 | Stud, 1 1/8“ X 6 3/8”, Discharge to Liner Bushing | 18 |
| 7 | P-6300281 | Nut, 1 3/4“ Hvy. Hex | 18 |
| 8 | P-2408033 | Stud, 1 3/4“ X 21 1/8”, Discharge to Suction | 18 |
| 9 | P-6300240 | Nut, 1 1/2 Hvy. Hex | 36 |
| 10 | P-2408027 | Stud, 1 1/2“ X 7 7/8” Top, Thread Ring | 36 |
| 11 | P-1292243 | Suction Module Studded, (incl. Items 12-14) | 3 |
| 12 | P-1292244 | Suction Module, Only | 3 |
| 13 | P-6300240 | Nut, 1 1/2 Hvy. Hex | 36 |
| 14 | P-2408027 | Stud, 1 1/2“ X 7 7/8” Top, Thread Ring | 36 |
| 15 | P-1293165 | Bushing, Liner | 3 |
| 16 | P-1292174 | Seal Retainer | 6 |
| 17 | P-1292172 | Valve Cover | 6 |
| 18 | P-1292178 | Screw, Wedge Adjusting | 6 |
| 19 | P-6300182 | Nut, Wedge Adjusting | 6 |
| 20 | P-1292171 | Washer, Wedge Adjusting Screw | 6 |
| 21 | P-1292176 | Ring, Threaded | 6 |
| 22 | P-G-1292268 | Wedge Assembly | 6 |
| 23 | P-1540127 | Gasket, Valve Cover | 6 |
| 24 | P-1292140 | Holder, Valve Guide Insert | 6 |
| 25 | P-1292141 | Insert, Valve Guide | 6 |
| 26 | P-6511416 | Pin Dowell | 6 |
| 27 | P-1292266 | Plate, Wear | 3 |
| 28 | P-1292252 | Connector, Discharge | 2 |
| 29 | P-7000-305-11 | Screw Hex Head | 16 |
| 30 | P-7619050 | Washer, Lock | 16 |
| 31 | P-1292253 | Adapter, Discharge Connector | 2 |
| 32 | P-2410031-433 | Packing, Rectangular | 2 |
| 33 | P-2410031-437 | Packing, Rectangular | 4 |
| 34 | P-1292167 | Clamp, Liner | 3 |
| 35 | P-7000491-10 | Screw 7/8 X 4 1/2“ Hex Hd. w/ Lock Washer | 6 |
| 36 | P-6309140 | Nut, 7/8“ Lock Type | 6 |
| 37 | P-1292169 | Pin, Liner Clamp | 3 |
| 38 | P-1292168 | Connector, Liner Clamp | 3 |
| 39 | P-2408015 | Stud 1 1/2“ x 7 1/2” | 16 |
| 40 | P-6300240 | Nut, 1 1/2“ Hvy. Hex | 16 |

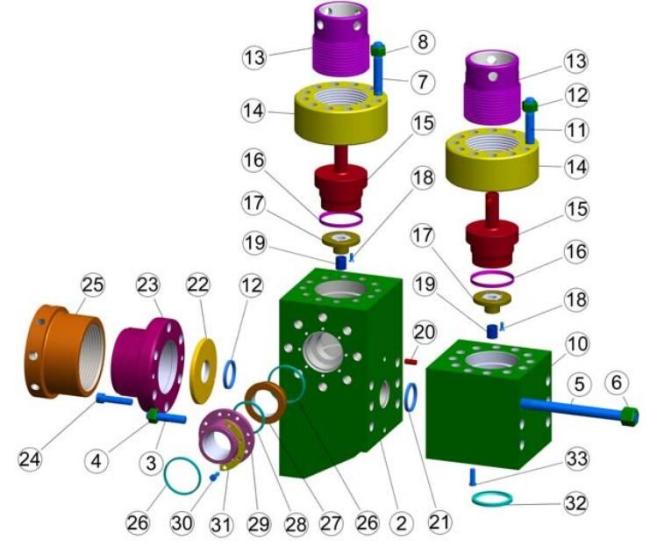

Item | P Part Number |
Description | Qty per Pump |
| 1 | P-1291250 | Discharge Module Studded, (incl. Items 2-10) | 3 |
| 2 | P-1291251 | Discharge Module, Only | 3 |
| 3 | P-6300160 | Nut, 1“ Hvy. Hex | 24 |
| 4 | P-2408042 | Stud, 1“ X 5”, Top Taper Lock | 24 |
| 5 | P-2408042 | Stud, 1/4“ X 4 1/2”, Discharge to Liner Bushing | 18 |
| 6 | P-240803 | Nut, 1“ Hvy. Hex | 18 |
| 7 | P-2408041 | Stud, 1 1/4“ X 14 5/8”, Discharge to Suction | 18 |
| 8 | P-1294156 | Suction Module Studded, (incl. Items 12-14) | 3 |
| 9 | P-1294156 | Suction Module, Only | 3 |
| 10 | P-1294165 | Bushing, Liner | 3 |
| 11 | P-1290174 | Seal Retainer | 6 |
| 12 | P-1294172 | Valve Cover | 6 |
| 13 | P-1290178 | Screw, Wedge Adjusting | 6 |
| 15 | P-1290315 | Washer, Wedge Adjusting Screw | 6 |
| 16 | P-1560701 | Spring Wedge | 6 |
| 17 | P-G-1290376 | Wedge Assembly | 6 |
| 18 | P-1540126 | Gasket, Valve Cover | 6 |
| 19 | P-1292140 | Holder, Valve Guide Insert | 6 |
| 20 | P-1292141 | Insert, Valve Guide | 6 |
| 21 | P-6511416 | Pin 7/8 X 2 Dowell | 6 |
| 22 | P-1294160 | Plate, Wear | 3 |
| 23 | P-1294170 | Connector, Discharge | 2 |
| 24 | P-7000305-11 | Screw 1/2 X 1 1/2 Hex Head | 16 |
| 25 | P-7619050 | Washer, Lock 1/2“ | 16 |
| 26 | P-1294171 | Adapter, Discharge Connector | 2 |
| 27 | P-2410031-348 | Packing, Rectangular | 2 |
| 28 | P-2410031-427 | Packing, Rectangular | 4 |
| 29 | P-1291166 | Clamp, Liner | 3 |
| 30 | P-7000403-10 | Screw 5/8 X 3 1/2 Hex Hd. w/ Lock Washer | 6 |
| 31 | P-6309100 | Nut, 5/8“ Lock Type | 6 |
| 32 | P-12911-69 | Pin, Liner Clamp | 3 |
| 33 | P-12911-68 | Connector, Liner Clamp | 3 |
| 34 | P-2402560 | Stud 1 1/4“ x 6 1/4” | 16 |
| 35 | P-6300200 | Nut, 1 1/4“ Hvy. Hex | 16 |

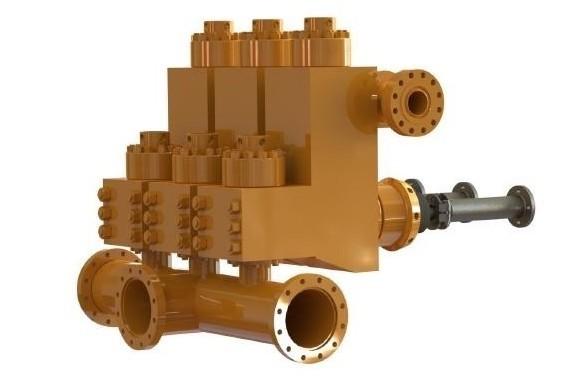

| GARDNER DENVER PZL-B 1600 HP (7500 PSI WORKING PRESSURE) | QTY PER PUMP | |||
| FLUID END MODULE & ACCESSORIES | ||||
| ITEM # | OEM PART # | MISSION PART # | ||
| FEMPZ101175CA | FLUID END MODULE COMPLETE ASSEMBLY | 3 | ||
| 1 | 300PZL2039 | FEMPZ101175 | FLUID END MODULE-STUDDED (INCLUDES ITEMS 2, 18-23) | 3 |
| 2 | 50B36 | IDT800TRSN | NUT | 168 |
| 3 | 303PZL316 | SEAL, WEAR RING (WEAR PLATE) | 3 | |
| 4 | 300PZL483 | GUIDE, VALVE (UPPER) | 3 | |
| 5 | 300PZL234 | RING, WEAR (WEAR PLATE) | 3 | |
| 6 | 300PZL205 | PZ1011LVGR75 | RETAINER, VALVE GUIDE | 3 |
| 7 | 300PZL316 | SEAL, CYL. HEAD & VALVE COVER - RUBBER (SEE DATASHEET FOR ALT. MATERIALS) | 6 | |
| 8 | 301PZL147 | PZ1011VC75 | COVER-VALVE (UPPER) | 3 |
| 9 | 15P27 | BOLT, EYE | 6 | |
| 10 | 300PZL387 | PZ1011FLG75 | RING-THREADED | 6 |
| 11 | 300PZL587 | PZ1011CAP75 | CAP, THREADED | 6 |
| 12 | 25BE41 | 07923283 | GASKET, SUCTION MANIFOLD | 3 |
| 13 | 655EG10N | SCREW, SUCTION MANIFOLD | 24 | |
| 14 | 302PZL316 | GASKET, DISCHARGE MANIFOLD | 3 | |
| 15 | 300PZL229 | BUSHING | 12 | |
| 16 | 300PZL147 | PZ1011CYHPLG75 | COVER, CYLINDER HEAD (LOWER) | 3 |
| 17 | 301PZL483 | GUIDE, VALVE (LOWER) | 3 | |
| 18 | 303PZL110 | PZ1011LCS75 | STUD, LINER CLAMP | 36 |
| 19 | 300PZL110 | PZ1011PFS75WP | STUD, POWER FRAME (WEAR RING) | 6 |
| 20 | 303PZL110 | PZ1011PFS75 | STUD, DISCHARGE MANIFOLD | 6 |
| 21 | 301PZL110 | PZ1011TRS75 | STUD, THREADED RING | 84 |
| 22 | 300PZL455 | PZ1011LC75 | CLAMP, LINER | 3 |
| 23 | 300PZL234 | PZ1011WP75 | WEAR RING, (WEAR PLATE) | 3 |

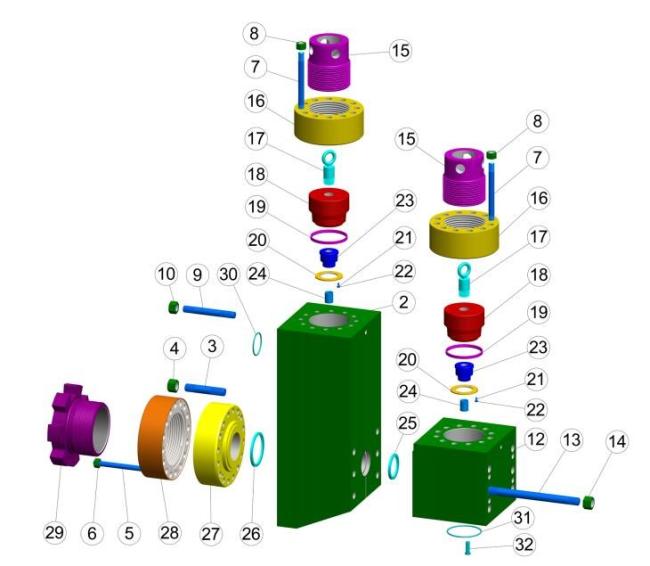

Item | Premium Part Number |
Description | Qty per Pump |
| 1 | P-1292240 | Discharge Module Studded, (incl. Items 2-10) | 3 |
| 2 | P-1292241 | Discharge Module, Only | 3 |
| 3 | P-6300220 | Nut, 1 3/8“ Hvy. Hex | 24 |
| 4 | P-2408029 | Stud, 1 3/8“ X 6 3/4”, Discharge to Frame | 24 |
| 5 | P-6300180 | Nut, 1 1/8“ Hvy. Hex | 18 |
| 6 | P-2408028 | Stud, 1 1/8“ X 6 3/8”, Discharge to Liner Bushing | 18 |
| 7 | P-6300281 | Nut, 1 3/4“ Hvy. Hex | 18 |
| 8 | P-2408033 | Stud, 1 3/4“ X 21 1/8”, Discharge to Suction | 18 |
| 9 | P-6300240 | Nut, 1 1/2 Hvy. Hex | 36 |
| 10 | P-2408027 | Stud, 1 1/2“ X 7 7/8” Top, Thread Ring | 36 |
| 11 | P-1292243 | Suction Module Studded, (incl. Items 12-14) | 3 |
| 12 | P-1292244 | Suction Module, Only | 3 |
| 13 | P-6300240 | Nut, 1 1/2 Hvy. Hex | 36 |
| 14 | P-2408027 | Stud, 1 1/2“ X 7 7/8” Top, Thread Ring | 36 |
| 15 | P-1293165 | Bushing, Liner | 3 |
| 16 | P-1292174 | Seal Retainer | 6 |
| 17 | P-1292172 | Valve Cover | 6 |
| 18 | P-1292178 | Screw, Wedge Adjusting | 6 |
| 19 | P-6300182 | Nut, Wedge Adjusting | 6 |
| 20 | P-1292171 | Washer, Wedge Adjusting Screw | 6 |
| 21 | P-1292176 | Ring, Threaded | 6 |
| 22 | P-G-1292268 | Wedge Assembly | 6 |
| 23 | P-1540127 | Gasket, Valve Cover | 6 |
| 24 | P-1292140 | Holder, Valve Guide Insert | 6 |
| 25 | P-1292141 | Insert, Valve Guide | 6 |
| 26 | P-6511416 | Pin Dowell | 6 |
| 27 | P-1292266 | Plate, Wear | 3 |
| 28 | P-1292252 | Connector, Discharge | 2 |
| 29 | P-7000-305-11 | Screw Hex Head | 16 |
| 30 | P-7619050 | Washer, Lock | 16 |
| 31 | P-1292253 | Adapter, Discharge Connector | 2 |
| 32 | P-2410031-433 | Packing, Rectangular | 2 |
| 33 | P-2410031-437 | Packing, Rectangular | 4 |
| 34 | P-1292167 | Clamp, Liner | 3 |
| 35 | P-7000491-10 | Screw 7/8 X 4 1/2“ Hex Hd. w/ Lock Washer | 6 |
| 36 | P-6309140 | Nut, 7/8“ Lock Type | 6 |
| 37 | P-1292169 | Pin, Liner Clamp | 3 |
| 38 | P-1292168 | Connector, Liner Clamp | 3 |
| 39 | P-2408015 | Stud 1 1/2“ x 7 1/2” | 16 |
| 40 | P-6300240 | Nut, 1 1/2“ Hvy. Hex | 16 |
SOUTHWEST 8494-25A FLUID END FOR
EMSCO FC-2200
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 PSI | FC-2200 | 9” X 15” |
| ITEM | P/ N | DESCRIPTION | QTY. REQ’D |
| 8494-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS:2,3,4,5,18,19,20,21,22,23,24,25,26,27,28,29,30,31,33,34,35,36,37,38,40) | ||
| 1 | 6394GXX | LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) | 3 |
| 2 | AJO524S | LINER & WEARPLATE SEAL (ALSO AVAILABLE IN URETHANE) | 6 |
| 3 | 8494-54-1 | LINER WEARPLATE BASE | 3 |
| 4 | 8494-54-2 | LINER WEARPLATE | 3 |
| 5 | 4020-36 | LINER WEARPLATE CAPSCREW | 18 |
| 6 | XX-BYY | PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) | 3 |
| 7 | 568-225 | PISTON SEAL | 3 |
| 8 | 6293-33 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 9 | API-4ESN | PISTON ROD NUT | 3 |
| 10 | 6293-3 | SUB ROD | 3 |
| 11 | 6293-4 | PISTON ROD CONNECTING STUD | 3 |
| 12 | 6293CW | ROD CLAMP | 3 |
| 12A | 1200H30 | HOSE | 3 |
| 12B | 1200160 | PIPE | 3 |
| 12C | 4019-92 | ROD CLAMP CAPSCREW WITH HI-COLLAR LOCK WASHERS | 6 |
| 13 | 6200G93 | PONY ROD | 3 |
| 14 | SEE PAGE | VALVE COMPLETE | 6 |
| 15 | SEE PAGE | VALVE INSERT | 6 |
| 16 | SEE PAGE | VALVE SPRING | 6 |
| 17 | SEE PAGE | VALVE SEAT | 6 |
| SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) | 1 | |
| 18 | 4476 | VALVE COVER FLANGE | 6 |
| 19 | 4597 | SCREW GLAND | 6 |
| 20 | 4609-25A | PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 21, 22, 23, & 24 | 6 |
| 21 | P119 | HP VALVE COVER PLUG NITRILE SEAL | 6 |
| 22 | 4776R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 23 | 4700I | VALVE GUIDE BUSHING | 6 |
| 24 | 4016-98 | VALVE GUIDE SCREW | 12 |
| 25 | 4015-54 | VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) | 72 |
| 26 | 4020-42 | POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) | 24 |
| 27 | 6494-25 | LINER RETAINER FLANGE | 3 |
| 28 | 4020-43 | LINER RETAINER STUD (WITH SW PART# HHN1125-8 1 1/8-8 HEAVY HEX NUT) | 48 |
| 29 | 6594-25 | LINER RETAINER NUT | 3 |
| 30 | 4020-6 | SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT) | 18 |
| 31 | 4020-27 | SUCTION MANIFOLD CAPSCREW | 18 |
| 32 | SUCTION MANIFOLD | 1 | |
| 33 | 568-442 | SUCTION MANIFOLD O-RING | 3 |
| 34 | 8494-26S | SUCTION MODULE | 3 |
| 35 | 8494-27D | DISCHARGE MODULE | 3 |
| 36 | 8488-5 | DOWEL PIN | 6 |
| 37 | 2988 | MODULE SEAL | 3 |
| 38 | 4020-44 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1500-8 1 ½-8 HEAVY HEX NUT) | 12 |
| 39 | DISCHARGE MANIFOLD | 1 | |
| 40 | 568-349 | DISCHARGE MANIFOLD O-RING | 3 |
| CONTINENTAL EMSCO FC-2200 | QTY PER PUMP | |||
| FLUID END MODULE & ACCESSORIES | ||||
| ITEM # | OEM PART # | |||
| EMSFEMFC2200CA | FLUID END MODULE COMPLETE ASSEMBLY | |||
| 1 | 0-6323-0108-00 | EMSFEMFC2200DIS | DISCHARGE MODULE-STUDDED | |
| 2 | 0-6323-0109-00 | EMSFEMFC2200SUC | SUCTION MODULE-STUDDED | |
| 3 | 0-6323-0087-00 | THREADED RETAINER | ||
| 4 | 0-6323-0086-00 | THREADED RING | ||
| 5 | 0-6323-0083-00 | VALVE POT COVER | ||
| 6 | 0-6323-0103-00 | VALVE GUIDE W/ BUSHING | ||
| 7 | 0-6323-0126-00 | HANDLER, VALVE POT | ||
| 8 | 0-6323-0085-00 | SUCTION MANIFOLD | ||
| 9 | 0-6316-0105-95 | FLANGE, SUCTION | ||
| 10 | 0-6317-0074-95 | FLANGE, BLIND | ||
| 11 | 0-6323-0084-10 | DISCHARGE MANIFOLD, 7500 PSI | ||
| 12 | 0-6323-0097-00 | WEAR PLATE | ||
| 13 | ||||
| 14 | 0-6323-0096-00 | LINER THREAD RING | ||
| 15 | 0-6323-0099-00 | LINER LOCK | ||
| 16 | ||||
| 17 | 0-6323-0121-20 | FEED PIPING ASSEMBLY | ||
| 18 | 0-6323-0093-00 | RETAINER, VALVE GUIDE | ||
| 19 | 0-6323-0128-00 | SEAL, F. E. MODULAR | ||
| 20 | 0-6323-0127-00 | WEAR PLATE LINER SEAL - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | ||
| 21 | ||||
| 22 | 0-7602-1600-52 | O-RING (SUCTION MANIFOLD) | ||
| 23 | 0-7602-1600-61 | O-RING (SUCTION MANIFOLD TO F. E.) | ||
| 24 | 0-7602-1600-30 | O-RING (DISCHARGE MANIFOLD TO F. E.) | ||
| 25 | 0-7501-0051-00 | SCREW, RETAINER | ||
| 26 | 0-7602-5280-72 | WIRE, SOFT IRON .06 X 144.00 | ||
| 27 | ||||
| 28 | 0-7601-0331-39 | SCREW, HEX HD 1" - 8 X 5.00 | ||
| 29 | 0-7601-0630-20 | NUT, HEX 1" - 8 | ||
| 30 | ||||
| 31 | 0-7601-0333-30 | SCREW, HEX HD 7/8-9 X 2.50 GR 5 | ||
SOUTHWEST 8490-2A FLUID END FOR
EMSCO FB1300/1600
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 5000 PSI | FB1300/1600 | 7-1/2” X 12” |
| ITEM | P/ N | DESCRIPTION | QTY. REQ’D |
| 8490-2A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,33, 34,35,36,38,39) | 3 | |
| 1 | 6390YXX | LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX) | 3 |
| 2 | AJO428S | LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX) (AJO428SU Also available in urethane) | 3 |
| 3 | 8490-3 | WEARPLATE | 3 |
| 4 | 2988 | WEARPLATE AND MODULE SEAL (2988U Also available in urethane) | 6 |
| 5 | XX-BYY | PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) | 3 |
| 5A | 2932 | PISTON BUSHING (FROM 1-5/8” TO 1-1/2” STRAIGHT BORE) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 6278-25 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD NUT | 3 |
| 9 | 1290-2 | PISTON ROD CONNECTING STUD | 3 |
| 10 | 6284-1 | SUB ROD | 3 |
| 11 | 6274CWY | ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 6274C) | 3 |
| 11A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 11B | 1286-CWYFP14 | PIPE (1/2” X 14” GALVANIZED AND THREADED ON ONE END) | 3 |
| 11C | 4020-29 | BOLT (5/8” X 8” GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 6 |
| 12 | 1200G74 | PONY ROD | 3 |
| 13 | VALVE | 6 | |
| 14 | VALVE INSERT (IF REQUIRED) | 6 | |
| 15 | VALVE SPRING | 6 | |
| 16 | SEAT | 6 | |
| SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION OF CATALOG FOR DETAILS.) | ||
| 4475-2A | SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY: (CONSIST OF ITEMS NO. 17-24) | 6 | |
| 17 | 4475 | THREADED FLANGE | 6 |
| 18 | 4575 | SCREW GLAND | 6 |
| 19 | 4675-2A | PLUG (COMPLETE WITH VALVE GUIDE; SCREWS; AND BUSHING) | 6 |
| 20 | P129 | HP VALVE COVER PLUG SEAL (P129U Also available in urethane) | 6 |
| 21 | 4775-2R | VALVE GUIDE (complete with bushing #4700I) | 6 |
| 22 | 4700I | VALVE GUIDE BUSHING | 6 |
| 23 | 4016-99 | VALVE GUIDE SCREW | 12 |
| 24 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHNHHN1250-7 1-1/4:-7” HEAVY HEX NUT) | 72 |
| 25 | 4016-9 | POWER END STUD (WITH SW PART# HHN1500-8 1-1/2-”8 HEAVY HEX NUT) | 18 |
| 27 | 6490-3 | LINER RETAINER FLANGE | 3 |
| 28 | 8422-3 | LINER RETAINER PILOT RING | 3 |
| 29 | 6590-1 | LINER RETAINER NUT | 3 |
| 30 | 4016-97 | SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1-1/2”-8 HEAVY HEX NUT) | 18 |
| 31 | 4018-19 | SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) | 18 |
| 32 | 8590-6 | SUCTION MANIFOLD (FRONT OR SIDE INLET) | 1 |
| 33 | 568-442 | SUCTION MANIFOLD SEAL | 3 |
| 34 | 8490-2S | SUCTION MODULE (STUDDED ONLY) | 3 |
| 35 | 8490-1D | DISCHARGE MODULE (STUDDED ONLY) | 3 |
| 36 | 8488-5 | DOWEL PIN | 6 |
| 37 | 8390-50 | DISCHARGE MANIFOLD | 1 |
| 38 | 568-343 | DISCHARGE MANIFOLD SEAL | 3 |
| 39 | 4017-46 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-8 1-1/4”-8 HEAVY HEX NUT) | 12 |
| 40 | ESN500 | ELASTIC STOP NUT | 12 |
| 41 | LW875 | LOCKWASHER 7/8 | 36 |
| 42 | 9070004 | SINGLE LIP PONY ROD SEAL | 3 |
| 43 | 9070005 | DOUBLE LIP PONY ROD SEAL | 3 |
| 44 | 9060012 | SPLASH GUARD | |
| 8590-6BFA | BLIND FLANGE IS AVAILABLE FOR CAPPING UNUSED FLANGES ON 8590-6 SUCTION MANIFOLD – (8590-6BFA INCLUDES 8590-6BF BLIND FLANGE AND 568-456 O-RING) SEE SEPARATE PG. FOR DETAILS | ||
| 6278-74 | PISTON ROD PULLER FOR 6278-25 ROD & 1200G74 PONY | ||
| THE FOLLOWING PARTS ARE USED WITH THE SOUTHWEST FB-1600 / FB-1300 HYDRAULIC LINER RETAINER | |||
| 45 | 1388XX | LINER | 3 |
| 46 | 2974XX | LINER SEAL | 3 |
| 47 | 8490-20 | LINER WEARPLATE / USE 2988 WEARPLATE GASKET SAME AS ORIGINAL | 3 |
| 48 | 8488-7 | SET SCREW | 12 |
| 49 | 6588-22-2 | LINER NUT | 3 |
SOUTHWEST 8488-25A FLUID END FOR
OILWELL A-1700-PT/A-1400-PT
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 PSI | A-1700-PT / A-1400-PT | 7-1/2” X 12” |
| ITEM | P/ N | DESCRIPTION | QTY. REQ’D |
| 8488-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3, 4, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 34, 35, & 36) | ||
| 1 | 1388-XX | LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) | 3 |
| 2 | 2974-XX | LINER SEAL (ALSO AVAILABLE IN URETHANE) | 3 |
| 3 | 8488-28 | WEARPLATE | 3 |
| 4 | 2988 | WEARPLATE AND MODULE SEAL | 9 |
| 5 | XX-BYY | PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 1290HW25 | PISTON ROD (WITH 1 ½-8 ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 9 | 1290W2 | PISTON ROD CONNECTING STUD | 3 |
| 10 | 1290HW1 | SUB ROD | 3 |
| 11 | 1290CW | ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 1290C) | 3 |
| 11A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 11B | 1200120 | PIPE (3/8” X 12” GALVANIZED AND THREADED ON ONE END) | 3 |
| 11C | 4018-94 | ROD CLAMP BOLT (5/8-11 GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 6 |
| 12 | 1200G90 | PONY ROD | 3 |
| 13 | SEE PAGE | VALVE | 6 |
| 14 | SEE PAGE | VALVE INSERT (IF REQUIRED) | 6 |
| 15 | SEE PAGE | VALVE SPRING | 6 |
| 16 | SEE PAGE | VALVE SEAT | 6 |
| SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) | 1 | |
| 17 | 4488-25 | THREADED FLANGE | 6 |
| 18 | 4588-25 | SCREW GLAND | 6 |
| 19 | 4690-25A | PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 21, 22, & 23 | 6 |
| 20 | P115 | HP VALVE COVER PLUG SEAL (ALSO AVAILABLE IN URETHANE PART# P115U) | 6 |
| 21 | 4788R-25 | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 22 | 4700I | VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART # 4700IU) | 6 |
| 23 | 4018-18 | VALVE GUIDE SCREW | 12 |
| 24 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 72 |
| 25 | 4020-5 | POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) | 12 |
| 26 | 6588-1 | LINER RETAINER NUT | 3 |
| 27 | 8488-7 | LINER RETAINER CAPSCREW | 9 |
| 28 | 6488-25 | LINER RETAINER FLANGE | 3 |
| 29 | 4016-80 | LINER RETAINER SOCKET HEAD CAP SCREW | 24 |
| 30 | 4020-4 | SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) | 18 |
| 31 | 4018-70 | SUCTION MANIFOLD CAP SCREW | 24 |
| 32 | 8588-50A | SUCTION MANIFOLD | 1 |
| 33 | 80102003 | SUCTION MANIFOLD SEAL | 3 |
| 34 | 8488-26 | SUCTION MODULE | 3 |
| 35 | 8488-27 | DISCHARGE MODULE | 3 |
| 36 | 8488-5 | DOWEL PIN | 6 |
| 37 | 8388-25A | DISCHARGE MANIFOLD | 1 |
| 38 | 4019-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 18 |
| 39 | 568-445 | “O” RING – WEAR PLATE O.D. RETAINER | 3 |
| 40 | 2932 | PISTON BUSHING (1 5/8 TO 1 ½ DIA.) | 3 |
| SOUTHWEST 7500 P.S.I. | NATIONAL 12P-160 | 7-1/2” X 12” |
| ITEM | P/N | DESCRIPTION | QTY. REQ’D |
| 8476-25A | FLUID END ASSEMBLY (CONSISTS OF ITEMS 3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,31,32,33,34,36,37,38) | ||
| 1 | 1376YXX | LINER (REFER TO- GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) | 3 |
| 2 | 2930-XX | LINER SEAL (REFER TO- GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)) | 3 |
| 3 | 8476-3 | WEARPLATE | 3 |
| 4 | 2988 | WEARPLATE, AND DISCHARGE MANIFOLD SEAL | 6 |
| 5 | XX-BYY | PISTON (REFER TO- GUIDE FOR ORDERING CHART FOR SIZE (XX) AND TYPE (YY)) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 1286-32 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 9 | 1286-1 | SUB ROD | 3 |
| 10 | 1286CWY | ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C) | 6 |
| 10A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 10B | 1286CWYFP14 | PIPE (3/8” X 14” GALVANIZED AND THREADED ON ONE END) | 3 |
| 10C | 4020-29 | BOLT (7/8 - 9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 12 |
| 11 | 1200G86 | PONY ROD | 3 |
| 12 | SEE PAGE | VALVE | 6 |
| 13 | SEE PAGE | VALVE INSERT (IF REQUIRED) | 6 |
| 14 | SEE PAGE | VALVE SPRING | 6 |
| 15 | SEE PAGE | VALVE SEAT | 6 |
| SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS) | 1 | |
| 16 | 4488-25 | THREADED FLANGE | 6 |
| 17 | 4588-25 | SCREW GLAND | 6 |
| 18 | 4690-25A | PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS; INCLUDES ITEMS 20, 21, & 22) | 6 |
| 19 | P115 | HP VALVE COVER PLUG NITRILE SEAL | 6 |
| 20 | 4788-25R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 21 | 4700I | VALVE GUIDE BUSHING | 6 |
| 22 | 4018-88 | VALVE GUIDE SCREW | 12 |
| 23 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) | 72 |
| 24 | 4015-95 | POWER END STUD (WITH SW PART# HHN1375-6 1 3/8-6 HEAVY HEX NUT) | 30 |
| 25 | 6476 | LINER RETAINER FLANGE | 3 |
| 26 | 4017-65 | LINER RETAINER FERRY HEAD CAP SCREW | 18 |
| 27 | 6576 | LINER RETAINER NUT | 3 |
| 28 | 4019-54 | SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4-8 HEAVY HEX NUT) | 18 |
| 29 | 4018-19 | SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) | 24 |
| 30 | 8576-50 | SUCTION MANIFOLD (FRONT OR SIDE INLET) | 1 |
| 31 | AJO419R | SUCTION MANIFOLD GASKET | 3 |
| 32 | 8476-26S | SUCTION MODULE | 3 |
| 33 | 8476-27D | DISCHARGE MODULE | 3 |
| 34 | 8488-5 | DOWEL PIN | 6 |
| 35 | 8376-25MOD | DISCHARGE MANIFOLD | 1 |
| 36 | 4019-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) | 18 |
| 37 | LW500 | LOCKWASHER | 12 |
| 38 | LW875 | LOCKWASHER | 24 |
| 39 | 9070012 | PONY ROD SEAL | 12 |
| 40 | 80491292 | SPLASH GUARD | 3 |
| 23 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) | 72 |
| 24 | 4015-95 | POWER END STUD (WITH SW PART# HHN1375-6 1 3/8-6 HEAVY HEX NUT) | 30 |
| 25 | 6476 | LINER RETAINER FLANGE | 3 |
| 26 | 4017-65 | LINER RETAINER FERRY HEAD CAP SCREW | 18 |
| 27 | 6576 | LINER RETAINER NUT | 3 |
| 28 | 4019-54 | SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4-8 HEAVY HEX NUT) | 18 |
| SOUTHWEST 7500 P.S.I. | BOMCO F-1600 | 7 ½” X 12” |
| ITEM NO. |
PART NO. |
DESCRIPTION | QTY. REQ’D |
| 8404-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39,41,42) | ||
| 1 | 1376YXX | LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) | 3 |
| 2 | 2930-XX | LINER SEAL (ALSO AVAILABLE IN URETHANE PART# 2930-XXU) | 3 |
| 3 | 8490-28 | LINER WEARPLATE (WITH 568-443 O-RING) | 3 |
| 4 | 2988 | WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) | 6 |
| 5 | XX-BYY | PISTON REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR SIZE (XX) AND FOR TYPE (YY) | 3 |
| 6 | 568-225 | PISTON SEAL | 3 |
| 7 | 6278-25 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD NUT | 3 |
| 9 | 1290-2 | PISTON ROD CONNECTING STUD | 3 |
| 10 | 6284-1 | SUB ROD | 3 |
| 11 | 6274CWY | ROD CLAMP (WITH WATER JACKET) | 3 |
| 11A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 11B | 1286CWYFP | ROD CLAMP WATER SPRAY MANIFOLD WITH PIPE | 3 |
| 11C | 4020-29 | BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 6 |
| 12 | 1200G74 | PONY ROD | 3 |
| 13 | SEE PAGE | VALVE | 6 |
| 14 | SEE PAGE | VALVE INSERT | 6 |
| 15 | SEE PAGE | VALVE SPRING | 6 |
| 16 | SEE PAGE | VALVE SEAT | 6 |
| SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) | 1 | |
| 17 | 4488-25 | VALVE COVER FLANGE | 6 |
| 18 | 4588-25 | SCREW GLAND | 6 |
| 19 | 4690-25A | PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, 22, &23 | 6 |
| 20 | P115 | HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE PART # P115U) | 6 |
| 21 | 4788-25R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 22 | 4700I | VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART # 4700IU) | 6 |
| 23 | 4018-18 | VALVE GUIDE SCREW | 12 |
| 24 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) | 72 |
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 P.S.I. | BOMCO F-1600 | 7 ½” X 12” |
| ITEM NO. |
PART NO. |
DESCRIPTION | QTY. REQ’D |
| 25 | 4017-33 | POWER END STUD (WITH SW PART# HHN1500-8 1 1/2"-8 HEAVY HEX NUT) | 30 |
| 26 | 568-443 | WEARPLATE 'O' RING | 3 |
| 27 | 6490-25 | LINER RETAINER FLANGE | 3 |
| 28 | 4019-51 | LINER RETAINER CAPSCREW | 36 |
| 29 | 6590-25 | LINER RETAINER NUT | 3 |
| 30 | 4019-61 | SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4"-8 HEAVY HEX NUT) | 18 |
| 31 | 4018-19 | SUCTION MANIFOLD CAPSCREW | 18 |
| 32 | 8590-6 | SUCTION MANIFOLD | 1 |
| 33 | 568-442 | SUCTION MANIFOLD 'O' RING | 3 |
| 34 | 8404-26 | SUCTION MODULE | 3 |
| 35 | 8404-27 | DISCHARGE MODULE | 3 |
| 36 | 8488-5 | DOWEL PIN | 6 |
| 37 | 8376-25MOD | DISCHARGE MANIFOLD | 1 |
| 38 | 4019-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) | 18 |
| 39 | 2988 | DISCHARGE MANIFOLD SEAL | 3 |
| 40 | 6490-25P | LINER RETAINER PULLER | 1 |
| 41 | LW875 | LOCKWASHER 7/8 | 18 |
| 42 | LW500 | LOCKWASHER ½ | 12 |
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: MP-5, MP-8, MP-10, MP-13, MP-16, E-447, E-2200, E1600
Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800,14T2200
Romania: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
Contact:Mr Liu
Mobile:15869109368
Tel:86-571-89967020
E-mail:info@dawopu.com
Address:No151 ,ZiDingXiang Rd, Hangzhou. Zhejiang Province, China
