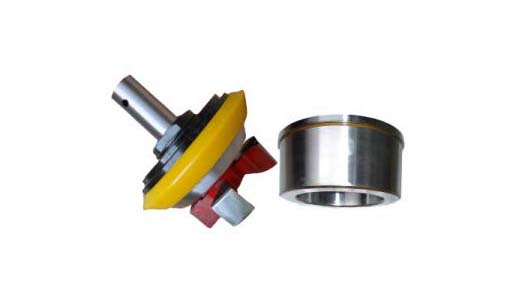

Mud Pump Valve Assy include valve body, valve seat, valve insert (valve rubber).
Mud Pump Valve & Seat are made of premium alloy steel through one-piece forging and carburizing treatment processes, thereby ensuring high intensity. In addition, the precise calculation is performed and CNC machining is conducted for the dimensional matching of the valve seat and valve body working angles to enhance the service life of the valve body and valve seat. Our valve products are able to work smoothly in normal mining and digging conditions for over 400 hours.
Type: Rough-neck valve, three-web valve, four-web valve
Brand: NATIONAL, GD, EMSCO, OILWELL, IDECO, DRILLMEC, WEATHERFORD, BOMCO, TSC, EWCO, AMERICAN BLOCK, EWECO, HONGHUA, LS NOV, WIRTH, RONGSHENG
Suitable Pump Models
| Bomco | F-500 | F-800 | F-1000 | F-1300 | F-1600 | F-1600HL | |
| Brewster | B-1000-T | B-1100-T | B-1300-T | B-1600-T | |||
| HONGHUA | HHF-500 | HHF-800 | HHF-1000 | HHF-1300 | HHF-1600 | HHF-1600HL | HHF-2200HL |
| Emsco | F-350 | F-500 | F-650 | F-800 | F-1000 | FD-1000 | FB-1300 |
| FB-1600 | FA-1600 | FA-1300 | FC-1600 | FD-1600 | FC-2200D-300/500 | D-175 | |
| D-225 | D-375 | D-500 | D-550 | DA-500 | DB-500 | D-700 | |
| DA-70 | DB-700 | DC-700 | DA-850 | DB-850 | DC-850 | D-1000 | |
| DB-1000 | DC-1000 | D-1000-A | D-1350 | D-1650 | |||
| National | 7-P-50 | 8-P-80 | 9-P-100 | 10-P-130 | 12-P-160 | 14-P-220 | JWS-165-L |
| JWS-340 | JWS-400 | C-250 | C-350 | K-380 | K-500-A | G-700 | |
| K-700 | N-1000 | N-1300 | N-1600 | ||||
| Oilwell | 350-PT | A-650P-T | A-850-PT | A-1100-PT | A-1400-PT | A-1700-PT | HD-1400-PT |
| HD-1700-PT | 612-P | 212-P | 214-P | 218-P | 700-P | 816-P | |
| 818-P | 1000-P | ||||||
| Ideco | T-500 | T-800 | T-1000 | T-1300 | T-1600 | MM-450 | MM-500-F |
| MM-600-A | MM-700-F | MM-1000 | |||||
| Gardner Denver | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | FK-FXK | FY-FXD |
| FD-FXX | FG-GXG | FG-FXG | KG-KXG | FQ-FXQ | FF-FXF | FF-FXP | |
| TGE | TGF | TGH | PAH-275 | ||||
| LS National Mud Pumps | 3NB-500C | 3NB1000C | 3NB1300C | 3NB1600 | |||
| Wirth Mud Pump | TPK1000 | TPK1600 | TPK2000 | ||||
| Russian Pumps | UNBT-950 | UNB-600 | 8T-650 | UNBT650 | NBT600 | UNB1180 | UNB1180L |
| WEATHERFORD/Ellis Williams | MP-5 | MP-8 | MP-10 | MP-13 | MP-16 | E-447 | E-2200 |
| W446 | W440 | ||||||
| Drillmec | 7TS-600 | 8T-800 | 9T1000 | 10T-1300 | 12T1600 | 14T-2200 | 10D2C |
| 8D1S | |||||||
| Upetrom | 3PN-1000 | 3PN-1600 | 3PN-1300 | 3PN-2000 | |||
| OPI | 350-D | 350-GD | 500-DC | 700-HDL | 1000-HDL | ||
| Lewco/Ewco | W-250-C | WH440 | W446 | W600 | WH600 | WH770 | W1100 |
| WH1312 | W1612 | W1712 | W2000 | W2214 | W2215 | ||
| American Block | K800 | K1000 | K1300 | K1600 | K2200 | ||
| Loadmaster | LSF-500 | LSF-800 | LSF-1000 | LSF-1300 | LSF-1600 | ||
| Soilmec | 7T500 | 7T508 | 8T650 | ||||
| Dragon | 440HP | 660HP | |||||
| GASO/Wheatly | 1550 | 1560 | 1563 | 1654 | 1742 | 1753 | 1874 |
| 1849 | 1860 | 2652 | |||||
| Great American | GA-550 | GA-750 | |||||
| TFI | BH-800 | F-500 | F-800 | F-1000 | F-1300 | F-1600 | |
| TSC | WF-400 | WF-450 | WF-700 | WFU-750 | WF-1000 | WF-1300 | WF-1600 |
| WF-2000 | WF-2200 |
