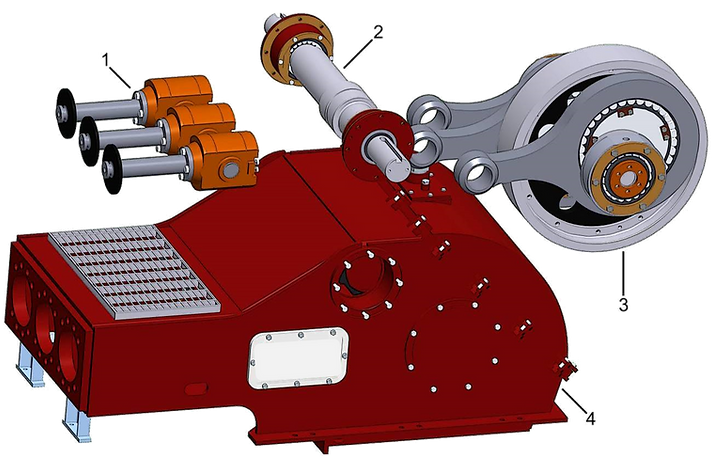

01 CROSSHEAD ASSEMBLY 02 PINION ASSEMBLY 03 CRANKSHAFT ASSEMBLY 04 POWER FRAME ASSEMBLY 01 COVER, CRANKCASE 02 SCREW, HEX CAP 5/8" - 11 X 2 1/2" GR5 03 POWER FRAME 04 GASKET, CROSSHEAD COVER 05 SUPPORT, FRAME FRONT 06 SCREW, HEX HEAD CAP 3/4"- 10 UNC x2 1/2" 07 CROSSHEAD COVER 08 SEAL, 3/4" DIA, BLACK STAT O SEAL 09 SCREW, CAP HEX 3/4"-10X2 1/2" GR5 10 COVER, MAIN BEARING 11 GASKET, MAIN BEARING COVER 12 STUD, MAIN BEARING RETAINER CAP 13 TORQUE NUT WITH WASHER 01 Screw, Cap Drilled Hex ⅝” – 11 x 2” Alloy B18.2.1 GR8 02 Retainer, Eccentric Bearing Outer Race 03 Bearing, Cylindrical Roller 04 Retainer, Eccentric Bearing Inner Race 05 Connecting Rod 06 Crankshaft 07 Cap Screw, Hex 1-1/2– 6UNC x 5½” CS B18.2.1 GR8 08 Gear, Main 09 Nut, Hex 1-1/2–6UNC with Nylon insert 10 Tie Wire, 0.048” OD Stainless Steel 10 Screw, Hex Head Cap ¾” – 10 UNC x 2.000” drilled G8 11 Retainer, Main Bearing Outer Race 12 Screw, Cap Drilled Hex 1” – 8 x 2¾” Alloy B18.2.1 GR8 13 1” Lock Washer, Spring Type 14 Retainer, Main Bearing Inner Race 15 Shim Set, Main Bearing 16 Bearing, Roller 17 Carrier, Crankshaft Bearing RH Carrier, Crankshaft Bearing LH NS Tie Wire, 0.048” OD Stainless Steel 01 Shaft, Pinion, Herringbone 02 Screw, Cap Drilled Hex ⅝” – 11 GR8 03 Plate, Pinion Oil Retainer 04 Gasket, Pinion Carrier 05 Carrier, Pinion Bearing 06 1” Lock Washer, Spring Type 07 Screw, Hex Head Cap 1–8 UNC 08 Bearing, Cylindrical Roller 09 Gasket, Seal Plate 10 Plate, Pinion, Oil Seal 11 ¾” Lock Washer 12 Screw, Hex Head Cap ¾” – 10 UNC drilled G8 13 Seal, Oil 13” Bore x ¾” WD 14 Race, Pinion Oil Seal NS Seal, Oil 13” Bore x ¾” WD 01 Screw, Hex Head Cap ⅝” – 11 UNC x 1.500” GR5 02 Washer, Lock ⅝” 03 Plate, Stuffing Box Cover 04 O-Ring, Stuffing Box 05 Packing, Crosshead Extension Rod 06 O-Ring, Stuffing Box Cover 07 Cartridge, Packing 08 Screw, Socket Head Cap ¾” – 10 UNC x 1¾” LG. 09 Seal, ¾” Diameter, Black Stat o Seal 10 Box, Stuffing 11 Gasket, Stuffing Box 12 Crosshead 13 Retainer, Inner Wrist Pin 14 Screw, Drilled Hex Cap ¾” – 10 x 2⅛” GR8, DH 15 Bearing, Cylindrical Roller 16 Pin, Wrist, Crosshead 17 Retainer, Wrist Pin w/ Lube Cup 19 Screw, Hex Head Cap ⅞" - 9 UNC x 2½" GR8, DH 20 Screw, Hex Head Cap 1" - 8 UNC x 3" LG GR5, DH 21 Rod, Crosshead Extension 22 Screw, Hex Head Cap 1” – 8 x 2.500” DH 23 Disc, Baffle 24 Guide, Crosshead 25 Screw, Socket Head Cap 1” – 8 UNC x 2½” , DH 26 Guide, Clamp Bar NS Tie Wire, 0.048” OD Stainless Steel 01 Nut, Liner Retainer 02 Liner 5" Liner 5.5" (5 1/2") Liner 6" Liner 6.5" (6 1/2") Liner 7" Liner 7.5" (7 1/2") Liner 8" Liner 8.5" (8 1/2") Liner 9" 03 Cap Screw, Retainer 04 Flange, Liner Retainer 05 Wear Plate 06 Seal, Wear Plate, Urethane NS Splash Baffle, Liner Wash Liners; Chrome Iron, Zirconia Liners Replacement Seals ; Nitrile, Urethane seal 01 Clamp Assembly 02 Sub Rod, Piston 03 Rod, Piston 04 Piston 5" Piston 5.5" (5 1/2") Piston 6" Piston 6.5" (6 1/2") Piston 7" Piston 7.5" (7 1/2") Piston 8" Piston 8.5" (8 1/2") Piston 9" 05 Nut, Lock Bonded DD Urethane Piston Bonded DD HT Urethane Piston Bonded Nitrile Piston Replaceable Nitrile Replacement Kit 01 CS Spring SS Spring 02 Valve with Bonded Insert Valve with Replaceable Insert 03 Valve Seat NS Valve Insert NS Seat Puller Head Valve Seat Puller Kit Full Open Valve Full Open HT Valve 3 Web CG Valve 3 Web CG HT Valve 4 Web CG Valve 4Web CG HT Valve 01 Frame 02 Discharge Fluid End 03 Valve Cover Stud 04 Discharge Manifold Stud 05 Suction Flange Stud 06 Valve Guide Bolt 07 Suction Manifold Cap Screw 08 Discharge Manifold 09 Suction Manifold 10 Discharge Manifold Gasket 11 Valve Cove Ring 12 Valve Cover Plug 13 Valve Cover 14 Discharge Valve Guide 15 Valve Seal 16 Valve Back-up Seal 17 Suction Pot 18 Suction Flange 19 Suction Valve Guide 20 Suction Guide Bushing 21 Suction Seal 22 Suction Back-up Ring 23 Victaulic Coupling 24 Victaulic Gasket 25 Elbow 26 Suction Adapter 27 Suction Gasket 28 Wear Plate 29 Wear Plate Gasket 30 Liner Lock Flange 31 Liner Lock Nut 32 Piston Rod 33 Liner Wash Splash Baffle 34 Sub Rod 35 Piston Rod Clamp 36 Baffle Disc (ref) 37 Pony Rod (ref) 38 Fluid End Stud 39 Liner (see size chart ) 40 Liner Gasket (see size chart ) 41 1.5” 8UNC-2B Elastic Stop Nut 42 1.5” 8UNC-2B 36HVY HX72 Nuts 12
POWER END ASSEMBLY
POWER FRAME ASSEMBLY
CRANK SHAFT ASSEMBLY
MAIN BEARING ASSEMBLY
POWER PINION SHAFT ASSEMBLY
CROSSHEAD ASSEMBLY
LINER ASSEMBLY
PISTON ASSEMBLY
VALVE ASSEMBLY
FLUID END ASSEMBLY
