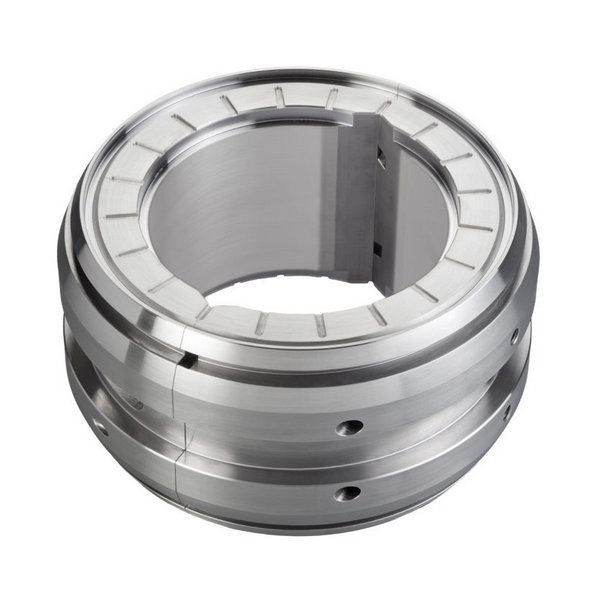

Fixed Profile Journal Bearings

High-Performance Axial and Radial Support for Industrial Rotating Machinery – Dawopu

Fixed profile journal bearings are critical components in heavy-duty rotating machinery, designed to provide stable radial load support for shafts operating under high speed, high load, and continuous duty conditions. Unlike tilting pad bearings, which adjust dynamically to rotor motion, fixed profile journal bearings have a stationary geometry that supports the shaft through a hydrodynamic oil film, providing consistent lubrication and long-term reliability.

Dawopu offers a complete range of fixed profile journal bearings, engineered for steam turbines, gas turbines, compressors, pumps, generators, and other industrial rotating equipment. Our bearings combine precise manufacturing, advanced material selection, and optimized lubrication design to ensure reliable operation, reduced vibration, and extended equipment life.

Working Principle of Fixed Profile Journal Bearings

Fixed profile journal bearings operate on the principle of hydrodynamic lubrication. The rotating shaft is supported by a stationary bearing sleeve, with a thin layer of lubricating oil separating the metal surfaces. As the shaft rotates, the oil is drawn into the bearing clearance, forming a pressurized film that carries the radial load.

Key features of this working principle include:

• Stable Radial Load Support: Bearings distribute shaft loads evenly across the bearing surface, preventing metal-to-metal contact.

• Hydrodynamic Oil Film Formation: Ensures low friction and minimal wear, even under heavy loads.

• Thermal and Mechanical Stability: Maintains bearing performance under high temperatures, high speeds, and continuous operation.

• Vibration Damping: The oil film absorbs mechanical vibrations and reduces the risk of rotor instability.

Key Design Features – Dawopu Fixed Profile Journal Bearings

Precision Machining and Tolerances

All Dawopu fixed profile journal bearings are manufactured with tight tolerances, ensuring a precise fit for OEM and retrofit applications. The exact dimensions guarantee optimal oil film formation, critical for long-term bearing performance.

High Load Capacity

Our bearings are engineered to handle radial loads up to 120 MPa (megapascals), supporting shafts in turbines, compressors, pumps, and generators operating under extreme industrial conditions.

Thermal Resistance

Designed to withstand operating temperatures ranging from -20°C to 200°C without deformation or performance degradation. Special high-temperature alloys and coatings enhance durability in demanding environments.

Wear and Corrosion Resistance

Dawopu bearings are produced using high-strength bronze, Babbitt, and composite materials with wear-resistant coatings. These materials provide long-term durability even in lubrication-sensitive or contaminated oil conditions.

Lubrication Optimization

The bearing geometry is designed to maintain consistent oil film thickness (50–200 microns depending on load and speed) across the entire journal surface, reducing friction and preventing metal contact.

Easy Installation and Retrofit

Fixed profile journal bearings from Dawopu are compatible with both OEM new installations and existing machinery retrofits, allowing for fast maintenance and reduced downtime.

Performance Parameters – Dawopu Fixed Profile Journal Bearings

Advantages of Dawopu Fixed Profile Journal Bearings

Stable Shaft Support

Provides consistent radial load support for shafts, preventing misalignment and vibration-induced failures.

High Reliability

Durable construction and optimized lubrication design ensure minimal wear and long-term performance, even under continuous industrial operation.

Vibration and Shock Absorption

Oil film damping reduces the impact of mechanical vibrations, shocks, and operational transients.

OEM and Retrofit Flexibility

Compatible with major turbine, compressor, pump, and generator OEM designs, allowing direct replacement or performance upgrades for legacy machinery.

Cost-Effective Maintenance

Long service life and reliable operation reduce downtime and maintenance costs, maximizing operational efficiency.

Applications of Fixed Profile Journal Bearings

Dawopu fixed profile journal bearings are widely used in industries requiring high reliability and precision in rotating machinery.

Steam and Gas Turbines

Supports radial loads in turbine rotors and ensures stable operation at high speeds and temperatures.

Industrial Compressors

Maintains alignment and vibration control for large industrial and process compressors.

Pumps and Centrifugal Equipment

Supports pump shafts under continuous duty, minimizing vibration and increasing operational efficiency.

Generators and Mechanical Drives

Ensures rotor stability in generators and mechanical drive systems in power plants.

Marine and Offshore Applications

Provides radial support for propeller shafts and turbine drives in marine propulsion and offshore installations.

Industries Served

• Power Generation: Steam and gas turbines, hydroelectric generators

• Petrochemical and Refining: Compressors, pumps, and mechanical drives

• Oil and Gas: Upstream and downstream rotating equipment

• Marine Engineering: Propulsion turbines and auxiliary machinery

• Heavy Manufacturing and Steel Plants: High-speed industrial machinery

• Mining and Material Processing: Continuous duty pumps and compressors

Replacement and Retrofit Solutions

Dawopu also provides customized fixed profile journal bearings for retrofits, upgrades, and replacements.

Services include:

• Reverse engineering of legacy bearings

• Custom design for high-speed, high-load applications

• Oil groove optimization for improved lubrication performance

• Rapid delivery and installation support

This allows operators to extend equipment life and improve turbine, pump, or compressor efficiency without replacing entire machinery.

Why Choose Dawopu Fixed Profile Journal Bearings?

For decades, Dawopu has been delivering high-quality, precision-engineered bearings to industries worldwide. Our fixed profile journal bearings are known for:

• Superior radial load handling

• High-speed stability

• Long service life and reduced maintenance

• Custom design flexibility for OEM and retrofit applications

• Optimized oil film performance for minimal wear and vibration

By combining advanced engineering, high-quality materials, and precision manufacturing, Dawopu ensures that every bearing meets stringent industrial standards.

Conclusion

Fixed profile journal bearings are vital for maintaining radial load stability in high-speed rotating machinery. They ensure rotor alignment, reduce vibration, and protect critical components from wear, extending the operational life of turbines, pumps, compressors, and generators.

Dawopu provides high-performance fixed profile journal bearings with precise engineering, optimized lubrication, and durable materials to meet the most demanding industrial conditions. From power generation to petrochemical, marine, and industrial manufacturing applications, Dawopu bearings deliver reliable performance, long service life, and efficient operation worldwide.
