Compact Equalising Thrust Bearings

Space-Efficient Axial Load Solutions for High-Performance Rotating Machinery

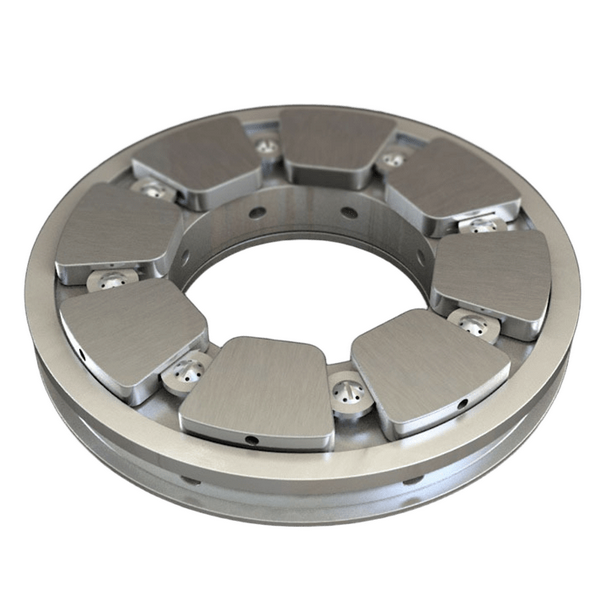

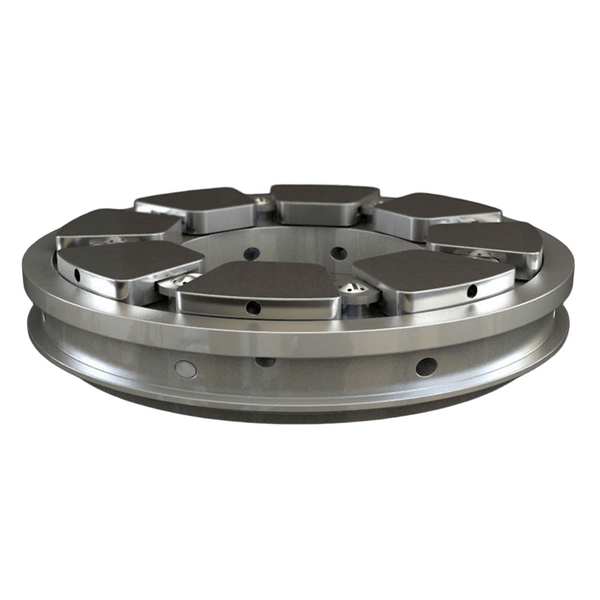

Dawopu Compact Equalising Thrust Bearings are advanced hydrodynamic thrust bearings specifically engineered to support heavy axial loads while maintaining a compact structural design. These bearings incorporate an equalizing mechanism that automatically distributes load evenly across the bearing pads, ensuring reliable operation even under fluctuating thrust conditions.

In modern rotating machinery, space limitations and increasing performance demands require bearing systems that provide high load capacity within a reduced installation envelope. Compact equalising thrust bearings meet these requirements by combining a space-saving structure with advanced load balancing technology.

At Dawopu, compact equalising thrust bearings are designed using optimized pad geometry, precision pivot mechanisms, and efficient lubrication systems. These features ensure stable rotor positioning, reduced friction, and long-term operational reliability.

They are widely used in steam turbines, compressors, pumps, gearboxes, and other heavy-duty rotating equipment where space is limited but performance requirements remain extremely high.

Working Principle

Compact equalising thrust bearings operate based on the principle of hydrodynamic lubrication and mechanical load equalization.

The bearing assembly consists of several thrust pads mounted on a self-equalizing support system. When the shaft rotates, the thrust collar drags lubricating oil into the clearance between the collar and the pads, forming a pressurized oil film. This oil film separates the metal surfaces and supports the axial load.

The equalizing mechanism ensures that the load applied to the bearing is distributed evenly across all pads. If one pad experiences higher load than the others, the equalizing system adjusts automatically, transferring load to adjacent pads and maintaining balanced pressure.

This self-adjusting feature improves reliability, minimizes local overheating, and enhances the overall service life of the bearing.

Key Features of Dawopu Compact Equalising Thrust Bearings

Compact Structural Design

The compact configuration allows installation in space-restricted equipment, making these bearings ideal for modern turbine and compressor designs.

Automatic Load Equalization

The equalizing mechanism ensures uniform load distribution across all pads, preventing uneven stress and extending bearing life.

High Axial Load Capacity

Despite their compact size, Dawopu compact equalising thrust bearings are capable of supporting very high thrust loads in demanding industrial applications.

Stable Hydrodynamic Oil Film

The advanced lubrication design generates a stable oil film that eliminates metal-to-metal contact and reduces friction.

Reduced Operating Temperature

Efficient oil flow and optimized pad geometry help dissipate heat, maintaining safe operating temperatures during continuous operation.

Long Service Life

Balanced load distribution and high-quality materials reduce wear and improve durability.

Low Maintenance Requirements

With proper lubrication and installation, compact equalising thrust bearings can operate reliably for long periods with minimal maintenance.

Typical Technical Specifications

The following parameters represent typical design capabilities for Dawopu Compact Equalising Thrust Bearings. Actual specifications can be customized to meet specific application requirements.

Shaft Diameter Range
80 mm – 800 mm

Maximum Axial Load Capacity
Up to 1500 kN depending on design

Operating Speed Range
500 – 12,000 RPM

Lubrication Method

• Oil bath lubrication

• Forced oil circulation lubrication

• Integrated cooling oil system

Operating Temperature Range
-20°C to 220°C

Number of Thrust Pads

Common configurations include:

• 6-pad design

• 8-pad design

• 10-pad design

• 12-pad design

Bearing Materials

Typical Dawopu thrust bearing materials include:

• Babbitt (white metal) bearing lining

• High-strength steel backing

• Bronze carrier rings

• High-performance alloy thrust collars

Surface Finish

Precision-machined surfaces optimized for efficient hydrodynamic film formation.

Applications of Compact Equalising Thrust Bearings

Dawopu compact equalising thrust bearings are used in many types of high-performance rotating machinery where axial load support and compact installation space are required.

Typical applications include:

• Steam turbines

• Gas turbines

• Industrial compressors

• Turbo expanders

• Large centrifugal pumps

• Industrial gearboxes

• Generator drives

• Marine propulsion equipment

• Heavy-duty industrial rotating machinery

These bearings are particularly suitable for equipment operating under continuous duty cycles, high thrust loads, and high rotational speeds.

Industries Served

Dawopu provides compact equalising thrust bearing solutions for many industries requiring reliable rotating equipment.

Power Generation

Steam turbines and generators require thrust bearings capable of handling large axial forces while maintaining stable rotor alignment.

Oil and Gas Industry

Compressors and turbo machinery used in refineries and pipelines depend on high-performance thrust bearings.

Petrochemical Processing

Continuous process equipment requires durable bearings with reliable lubrication systems.

Marine and Offshore Engineering

Marine propulsion systems and offshore rotating machinery require compact and reliable thrust bearing solutions.

Mining and Heavy Industry

Large grinding mills, crushers, and heavy industrial drives depend on thrust bearings capable of handling demanding operating conditions.

Industrial Manufacturing

Heavy machinery used in steel production, cement plants, and process industries requires durable axial load support systems.

Engineering and Manufacturing Expertise

At Dawopu, compact equalising thrust bearings are developed using advanced engineering analysis and precision manufacturing techniques. Our engineers perform detailed calculations including load analysis, thermal modeling, and lubrication optimization to ensure optimal bearing performance.

Each bearing assembly undergoes strict quality control procedures to ensure durability, dimensional accuracy, and operational reliability.

Dawopu also offers custom bearing solutions, including:

• application-specific thrust load design

• material upgrades for high temperature environments

• retrofit replacements for existing turbine systems

• optimized lubrication systems

• custom bearing housings and configurations

Conclusion

Dawopu Compact Equalising Thrust Bearings provide a highly efficient and space-saving solution for managing heavy axial loads in rotating machinery. Through advanced equalizing mechanisms, hydrodynamic lubrication technology, and precision engineering, these bearings ensure stable operation, improved efficiency, and extended service life.

With strong engineering capabilities and global industrial experience, Dawopu continues to deliver reliable and high-performance bearing solutions for critical rotating equipment worldwide.
