Self-Equalizing Thrust Bearings

Advanced Load Balancing for High-Performance Rotating Machinery

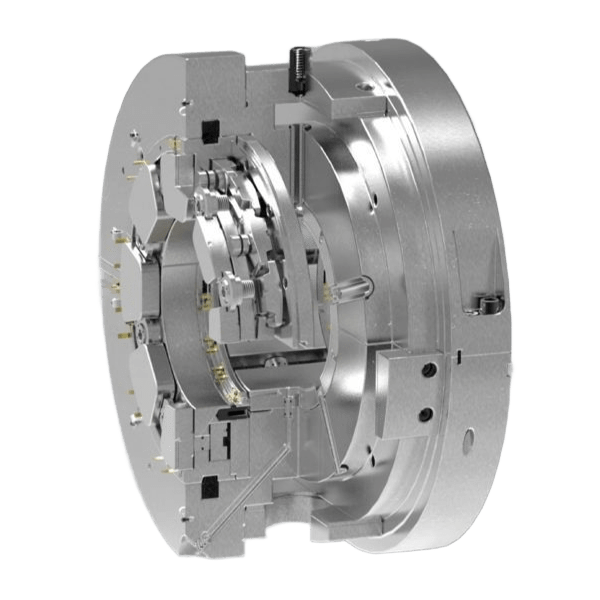

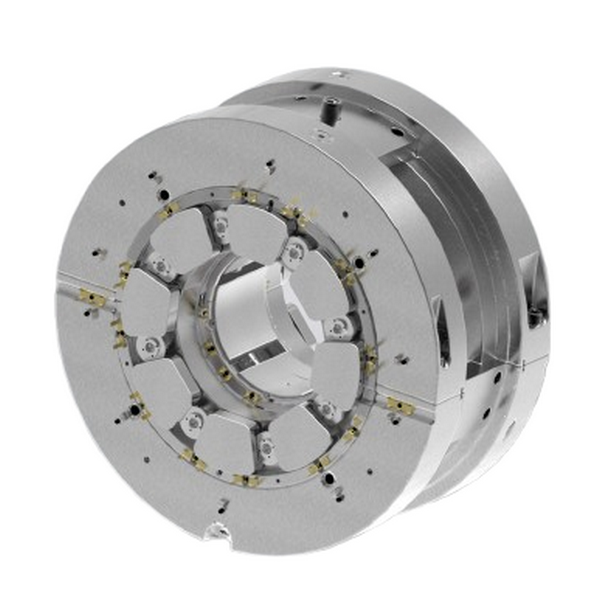

Dawopu Self-Equalizing Thrust Bearings are advanced hydrodynamic bearings designed to support and balance heavy axial loads in high-performance rotating equipment. These bearings feature a unique self-equalizing mechanism that automatically distributes axial load evenly across multiple bearing pads, ensuring stable operation and extending bearing life.

In many large rotating machines such as steam turbines, compressors, pumps, and generators, axial thrust forces can vary significantly during operation. Traditional thrust bearings may experience uneven load distribution across the pads, which can lead to localized overheating, increased wear, or premature failure.

To solve this challenge, Dawopu self-equalizing thrust bearings incorporate an innovative pivot or leveling mechanism that allows the bearing pads to adjust their position dynamically. This design ensures that each pad carries a balanced portion of the axial load, improving reliability and performance under varying operating conditions.

These bearings are widely used in high-load, high-speed, and continuous-duty industrial applications where stable axial support and efficient lubrication are critical.

Working Principle of Self-Equalizing Thrust Bearings

Self-equalizing thrust bearings operate using hydrodynamic lubrication combined with a mechanical load-balancing structure.

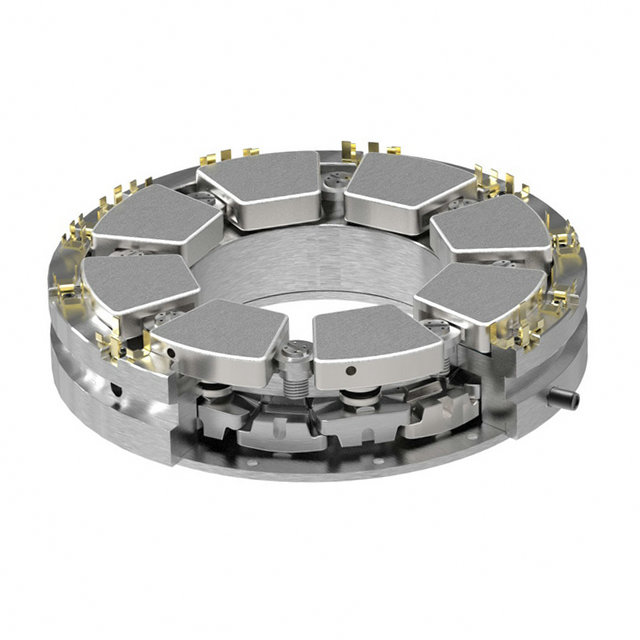

The bearing assembly typically consists of multiple thrust pads arranged circumferentially around the shaft collar. Each pad is mounted on a self-aligning support system that allows it to tilt slightly in response to load variations.

During operation:

1. The rotating thrust collar drags lubricating oil into the gap between the collar and bearing pads.

2. This motion generates a hydrodynamic oil film that separates the surfaces.

3. The oil film creates pressure that supports the axial load.

4. The self-equalizing mechanism automatically redistributes loads between pads.

This automatic balancing capability prevents uneven loading and ensures that all pads contribute equally to carrying the thrust load.

At Dawopu, advanced engineering analysis is used to optimize pad geometry, pivot design, and lubrication flow to achieve maximum efficiency and stability.

Key Features of Dawopu Self-Equalizing Thrust Bearings

Automatic Load Distribution

The self-equalizing mechanism ensures uniform load sharing among all bearing pads, preventing excessive stress on any single pad.

Hydrodynamic Lubrication

A stable oil film forms between the rotating collar and the bearing pads, reducing friction and eliminating metal-to-metal contact.

High Axial Load Capacity

Dawopu self-equalizing thrust bearings are capable of handling extremely heavy thrust loads, making them ideal for large industrial machines.

Reduced Vibration and Heat Generation

Balanced load distribution minimizes vibration, friction, and heat generation, improving equipment stability.

Long Service Life

Uniform load sharing significantly reduces localized wear, extending the operational life of the bearing system.

Improved Operational Safety

The design reduces the risk of thrust bearing failure, which is critical for turbines and other high-value rotating equipment.

Typical Technical Specifications

The following parameters represent typical performance ranges for Dawopu Self-Equalizing Thrust Bearings. Specifications can be customized to match different equipment requirements.

Shaft Diameter Range
100 mm – 1200 mm

Maximum Axial Load Capacity
Up to 2000 kN depending on design configuration

Operating Speed Range
500 – 12,000 RPM

Lubrication Method

• Oil bath lubrication

• Forced oil circulation lubrication

• Integrated cooling oil system

Operating Temperature Range
-20°C to 220°C

Bearing Pad Configuration

Typical pad numbers include:

• 6 pads

• 8 pads

• 10 pads

• 12 pads

Bearing Materials

Dawopu thrust bearings are typically manufactured using high-quality materials such as:

• Babbitt (white metal) bearing lining

• High-strength steel backing

• Bronze support structures

• Advanced alloy thrust collars

Surface Finish

Precision-machined bearing surfaces with optimized roughness for hydrodynamic film formation.

Applications of Self-Equalizing Thrust Bearings

Dawopu self-equalizing thrust bearings are used in critical rotating machinery requiring reliable axial load support.

Typical applications include:

• Steam turbines

• Gas turbines

• Hydro turbine generators

• Industrial compressors

• Large centrifugal pumps

• Gearboxes and heavy industrial drives

• Turbo expanders

• Marine propulsion systems

• Power plant rotating equipment

These bearings are particularly suitable for machinery operating under variable thrust loads, high rotational speeds, and continuous industrial duty cycles.

Industries Served

Dawopu supplies self-equalizing thrust bearing solutions to a wide range of heavy industrial sectors.

Power Generation

Steam turbines, hydro turbines, and generator units rely on thrust bearings to manage axial forces during operation.

Oil & Gas Industry

Compressors, turbo expanders, and pipeline machinery require reliable thrust bearing systems.

Petrochemical Processing

Process pumps and rotating equipment operate continuously under demanding conditions.

Marine Engineering

Marine propulsion systems and offshore equipment require durable thrust bearings capable of handling heavy loads.

Mining and Heavy Industry

Large crushers, mills, and industrial drives rely on high-capacity thrust bearings for stable operation.

Industrial Manufacturing

Heavy-duty machinery used in steel production and process industries also utilize thrust bearing systems.

Engineering and Manufacturing Expertise

At Dawopu, self-equalizing thrust bearings are developed using advanced engineering tools and strict quality control processes. Our design team performs detailed rotor dynamics analysis, load calculations, and lubrication modeling to ensure optimal performance.

Each bearing assembly is manufactured with precision machining, high-quality materials, and rigorous testing to ensure durability and reliability in demanding environments.

Dawopu also provides customized thrust bearing solutions, including:

• application-specific load design

• material upgrades for high temperature operation

• lubrication system optimization

• replacement bearings for OEM equipment

• retrofit solutions for aging machinery

Conclusion

Dawopu Self-Equalizing Thrust Bearings provide a highly reliable solution for managing heavy axial loads in large rotating machinery. Through automatic load balancing, hydrodynamic lubrication, and precision engineering, these bearings ensure stable operation, reduced wear, and extended equipment lifespan.

With advanced manufacturing capabilities and extensive industry experience, Dawopu continues to deliver high-performance bearing solutions for critical industrial applications worldwide.
