Vertical Thrust Bearings Assembly

Reliable Axial Load Support for Vertical Rotating Machinery

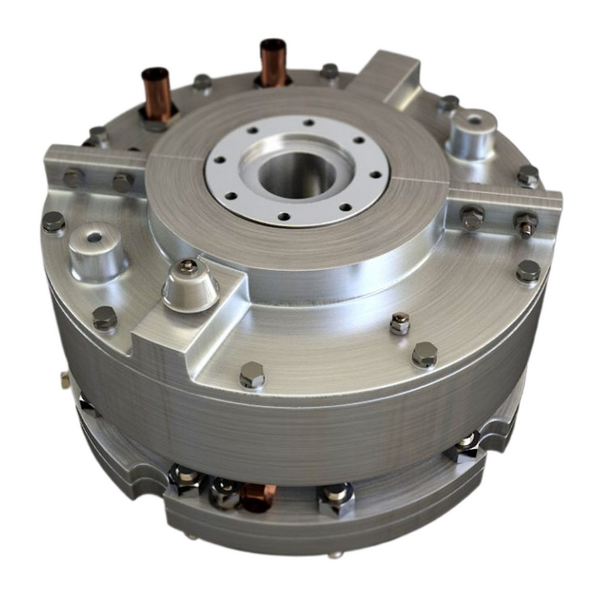

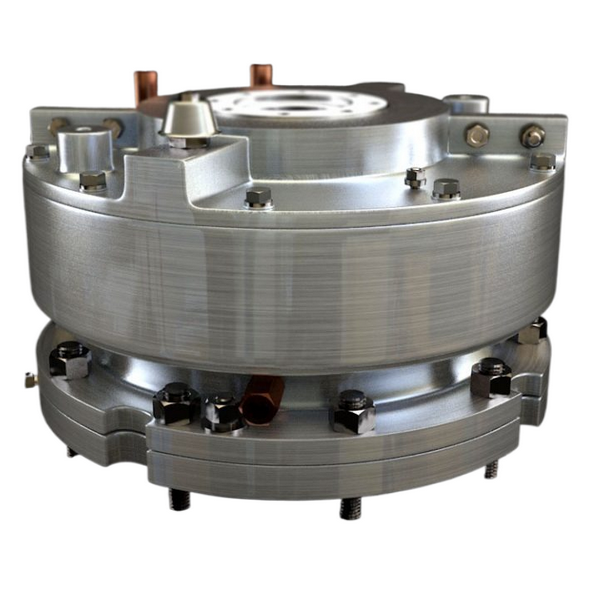

Dawopu Vertical Thrust Bearings Assemblies are precision-engineered bearing systems designed to support axial loads generated by vertically oriented rotating shafts. These assemblies play a critical role in maintaining rotor stability and precise shaft positioning in vertical machinery such as turbines, pumps, compressors, and heavy industrial drives.

Unlike conventional horizontal bearing systems, vertical shaft equipment must continuously withstand gravity-induced axial loads combined with operational thrust forces. A vertical thrust bearing assembly is specifically developed to absorb these forces while maintaining accurate shaft alignment and smooth rotational motion.

At Dawopu, vertical thrust bearing assemblies are designed using advanced hydrodynamic lubrication principles. During operation, a stable oil film forms between the rotating thrust collar and the stationary bearing pads, preventing metal-to-metal contact while distributing the load evenly across the bearing surface. This fluid film lubrication significantly reduces friction, improves vibration damping, and extends the operational life of the equipment.

These assemblies are widely used in high-load, continuous-duty industrial machinery where reliability, durability, and stable rotor positioning are essential.

Key Features of Dawopu Vertical Thrust Bearings Assembly

High Axial Load Capacity

Vertical thrust bearings are engineered to carry significant axial loads generated by heavy vertical rotors, fluid pressure forces, and equipment weight. The optimized pad geometry ensures uniform load distribution and reliable performance.

Hydrodynamic Lubrication Technology

Dawopu thrust bearings operate on fluid film lubrication, creating a protective oil layer that separates the rotating and stationary surfaces. This greatly reduces wear and ensures stable operation even under demanding conditions.

Precision Rotor Positioning

Maintaining accurate shaft alignment is essential for vertical rotating equipment. Dawopu bearing assemblies ensure precise axial positioning and rotor stability, preventing misalignment and vibration.

High-Speed Operational Stability

These assemblies are designed for medium to high-speed rotating equipment, maintaining reliable performance even when operating under fluctuating load conditions.

Efficient Heat Dissipation

Advanced oil flow channels and bearing pad design allow effective cooling, reducing operating temperatures and improving bearing longevity.

Long Service Life

High-quality materials, precision machining, and optimized lubrication design allow Dawopu vertical thrust bearing assemblies to achieve extended service life with minimal maintenance requirements.

Typical Technical Specifications

The following parameters represent typical performance ranges for Dawopu Vertical Thrust Bearings Assemblies. Actual specifications can be customized based on equipment requirements.

Shaft Diameter Range
80 mm – 1000 mm (custom sizes available)

Maximum Axial Load Capacity
Up to 1200 kN depending on design configuration

Operating Speed Range
500 – 10,000 RPM depending on application

Lubrication Type
Hydrodynamic oil film lubrication

Operating Temperature Range
-20°C to 200°C

Bearing Pad Configuration

Common configurations include:

• Fixed pad thrust bearings

• Tilting pad thrust bearings

• Multi-segment thrust bearing assemblies

Bearing Materials

Typical bearing materials include:

• Babbitt (white metal) lining

• Tin-based bearing alloy

• Copper alloy backing

• High-strength steel housing

Lubrication System

• Oil bath lubrication

• Forced oil circulation lubrication

• Integrated cooling oil channels

Applications of Vertical Thrust Bearings Assembly

Dawopu vertical thrust bearing assemblies are widely used in large rotating machines with vertical shaft configurations. Typical applications include:

• Vertical turbines in power generation systems

• Vertical centrifugal pumps and deep-well pumps

• Hydro turbine generator sets

• Cooling tower fan drives

• Industrial agitators and mixers

• Marine vertical shaft propulsion equipment

• Vertical compressors and blowers

• Heavy-duty industrial vertical motors

These bearings are designed for equipment operating under continuous duty cycles, high thrust loads, and vibration-sensitive conditions.

Industries Served

Dawopu provides vertical thrust bearing solutions to a wide range of industries requiring reliable support for vertical rotating machinery.

Power Generation

Vertical thrust bearings are critical components in hydroelectric turbines, steam turbines, and generator systems where axial load stability is essential.

Water Treatment and Pumping Stations

Large vertical pumps used in water supply systems require durable thrust bearings to support continuous operation.

Petrochemical and Refining Industry

Process equipment such as compressors and pumps rely on high-performance thrust bearings for reliable operation.

Marine and Offshore Engineering

Vertical shaft propulsion systems and offshore equipment require bearings capable of operating under high loads and harsh environments.

Cooling Tower and HVAC Systems

Vertical fan drives in cooling towers require stable thrust bearing assemblies for continuous operation.

Mining and Heavy Industry

Vertical grinding mills, processing equipment, and heavy industrial machinery rely on robust thrust bearing solutions.

Engineering and Manufacturing Excellence

At Dawopu, vertical thrust bearing assemblies are manufactured using advanced machining processes and strict quality control standards. Each bearing system is carefully engineered to meet the operational requirements of high-load industrial applications.

Our engineering team provides custom design solutions, including optimization of bearing dimensions, lubrication systems, pad configurations, and load capacity to match specific equipment requirements.

With a focus on precision manufacturing and long-term reliability, Dawopu continues to deliver high-performance bearing solutions for critical rotating machinery across global industries.
